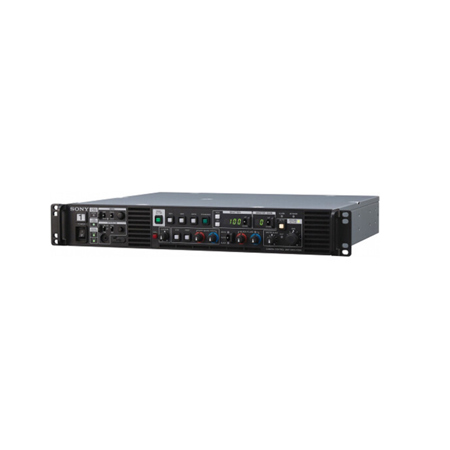

Sony HXC-FZ90 4KUHD Camera Control Unit with LEMO Connector

SKU: SOHXCUFZ90L MFR: HXCU-FZ90L
Earn VIP Reward Points

Key Features

  • Enhance your Sony camera workflow with the HXC-FZ90 4KUHD camera control unit.
  • Experience seamless integration with LEMO connector for robust video signal transmission.
  • Achieve superior video quality with stable power supply at 100 V to 240 V, 50/60 Hz.
  • Optimize camera control with multiple SDI inputs/outputs for professional video setups.
  • Expand connectivity using versatile ports: Intercom, Remote, Trunk, and LAN-COM.
  • Ensure reliable performance in diverse conditions: 41 to +104 Degree F operating range.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sony HXCU-FZ90 Specifications

General

General

Jump to...
  • Power Requirements

    AC 100 V to 240 V, 50/60 Hz

  • Operating Temperature

    41 to +104 Degree F (5 to +40 Degree C)

  • Storage Temperature

    -4 to +140 Degree F (-20 to +60 Degree C)

  • Signal Format

    4K 2160 : 59.94p
    50p (2SI, SQD, Level-A/B) HD 1080: 59.94p, 59.94i, 50p, 50i, 29.97PsF, 25PsF, 23.98PsF
    HD 720 : 59.94p
    50p SD 480 : 59.94i, 576: 50i

Input/Output

Jump to...
  • Camera

    Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type)

  • Distance of Power Supply

    984.25' (300m)

  • Distance of Fiber Cable

    By Local Power Supply
    10km (max.) by Single Mode Fiber Cable (LC type) (with HXC-FZ90)

  • Intercom (on the front panel)

    EARPHONE: 4-pole mini jack

  • Intercom/Tally/Program

    D-sub 25-pin, female (1x)
    INTERCOM (PROD, ENG), 4Wire/RTS: 0 dBu, Clear-Com:-14dBu
    PGM
    TALLY (R, G)
    PREVIEW OUT

  • Remote

    8-pin (1x)

  • Trunk

    12-pin (1x)

  • LAN-COM

    RJ-45 8-pin

  • Network Trunk

    RJ-45 8-pin

  • Reference

    BNC (2x), In: HD: SMPTE 274M, Tri-Level Sync, 0.6 Vp-p, 75 Ohm SD: Black Burst (NTSC: 0.286 Vp-p, 75 Ohm / PAL: 0.3 Vp-p, 75 Ohm)

  • Prompter

    BNC (2x), In: VBS, 1.0 Vp-p, 75 Ohm, 1 system, Out: Loop-Through

  • SDI I/O 1 - 4

    3G/HD/SD SDI I/O
    BNC (4x)
    3G SDI: SMPTE ST424/425 Level-A/B
    0.8 Vp-p75 Ohm 2.970 Gbps/2.967 Gbps
    HD SDI: SMPTE ST292 0.8 Vp-p 75 Ohm
    1.485 Gbps/1.4835 Gbps
    SD SDI: SMPTE ST259 0.8 Vp-p 75 Ohm
    270 Mbps
    3G SDI/HD SDI/SD SDI

  • AC In

    (1x), AC 100 V to 240 V

  • SDI Out 1,2

    3G/HD/SD SDI OUTPUT
    BNC (4x)
    3G SDI: SMPTE ST424/425 Level-A/B
    0.8 Vp-p 75 Ohm 2.970 Gbps/2.967 Gbps
    HD SDI: SMPTE ST292 0.8 Vp-p 75 Ohm
    1.485 Gbps/1.4835 Gbps
    SD SDI: SMPTE ST259 0.8 Vp-p 75 Ohm
    270 Mbps
    3G SDI/HD SDI/SD SDI

  • UHD Out 1,2

    12G/6G/3G/HD SDI OUTPUT
    BNC (2x)
    12G SDI: SMPTE ST2082 0.8 Vp-p 75 Ohm
    11.88 Gbps/11.868 Gbps
    6G SDI: SMPTE ST2081 0.8 Vp-p 75 Ohm
    5.940 Gbps/5.934 Gbps
    3G SDI: SMPTE ST424/425 Level-A/B
    0.8 Vp-p 75 Ohm 2.970 Gbps/2.967 Gbps
    HD SDI: SMPTE ST292 0.8 Vp-p 75 Ohm
    1.485 Gbps/1.4835 Gbps

  • Character / Sync

    BNC (1x), VBS, 1 Vp-p 75 Ohm
    HD SYNC: Tri-level sync 0.6 Vp-p 75 Ohm
    SD SYNC: NTSC: 0.286 Vp-p 75 Ohm
    PAL: 0.3 Vp-p 75 Ohm

  • Audio Out CH-1, CH-2

    XLR 3-pin, male (x2), 0/-20 dBu/+4dBu

Physical

Jump to...
  • Dimensions (W x H x D)

    Without Rack Mounting Bracket: 16.75 x 2.62 x 14.5" (424 x 66 x 366mm)
    With Rack Mounting Bracket: 19 x 2.62 x 14.5" (482 x 66 x 366mm)

  • Weight

    13 lbs (5.9kg) (Approx.)

Designed For Use With:

  • Sony

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Sony HXC-FZ90 4KUHD Camera Control Unit with LEMO Connector
$7,200.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Sony HZC-PRV50 Permanent License for HDC-3100
$7,200.00

Special Order

Generally ships in 7-14 days, subject to availability

Sony RCP-3500 Remote Control Panel for HDC/HSC/HXC Series Cameras
$7,220.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Type-Video Camera Upgrade-
CompatibilitySonySonySony
Control TypeControl Units & Adapters-Control Panel, Remote Controls

About Sony HXCU-FZ90

Take your studio production capabilities to unprecedented heights with the HXC-FZ90 4KUHD Camera Control Unit featuring a LEMO Connector. This sophisticated camera control unit is meticulously engineered to integrate seamlessly with the HXC-FZ90 camera and HZC-UHD9, forming a comprehensive system that supports 4K HDR (HLG/S-Log3) and SR Live for HDR. This makes it an ideal, cost-effective, and future-proof investment for professionals aiming to elevate their video quality to the next level.

The HXCU-FZ90 CCU is distinguished by its exceptional ability to manage multiple frame rates over both 3G-SDI and 12G-SDI signals. Whether you're capturing footage at 2160/50p, 59.94p, 60.00p over 12G-SDI or 1080/50p, 59.94p, 60.00p over 3G-SDI, this unit guarantees smooth, high-quality output. It is also equipped with a cutting-edge processor that supports 1080/23.98 PsF, 24 PsF, and 29.97 PsF, offering enhanced flexibility and precision in your production workflow.

Investing in the HXC-FZ90 4KUHD Camera Control Unit means investing in the future of your production capabilities. It is designed to support both 4K and 4K HDR (HLG/S-Log3) within the BT.2020 color space, enabling you to achieve the precise visual aesthetic you desire. This is facilitated through a software upgrade with the HXC-FZ90, ensuring your equipment remains at the forefront of the latest video technology advancements.

Additionally, the unit features an impressive fiber cable extension capability with the HXCE-FZ90 extension unit. This allows for the transmission of high-quality images over a LEMO single-mode fiber connection for distances up to 6.21 miles. Alternatively, it can carry both signals and power over shorter distances of up to 9.84 feet, providing unparalleled flexibility in your studio setup.

In summary, the HXC-FZ90 4KUHD Camera Control Unit with LEMO Connector is a robust, versatile, and indispensable solution for professionals seeking to enhance their video production capabilities. Its support for a wide range of frame rates, 4K and 4K HDR, and long-distance signal transmission makes it an invaluable addition to any advanced studio environment.

Sony HXCU-FZ90 Features

  • Studio camera system with HDR capability
  • Multiple frame rates over 3G-SDI and 12G-SDI signals
  • Future-proof 4K and 4K HDR support
  • Fiber cable extension

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Enhance your Sony camera workflow with the HXC-FZ90 4KUHD camera control unit.
  • Experience seamless integration with LEMO connector for robust video signal transmission.
  • Achieve superior video quality with stable power supply at 100 V to 240 V, 50/60 Hz.
  • Optimize camera control with multiple SDI inputs/outputs for professional video setups.
  • Expand connectivity using versatile ports: Intercom, Remote, Trunk, and LAN-COM.
  • Ensure reliable performance in diverse conditions: 41 to +104 Degree F operating range.

What's in the box:

  • Sony HXC-FZ90 4KUHD Camera Control Unit with LEMO Connector
  • Tally Number Plate Set (0-9)
  • Sony 1 Year Limited Warranty
