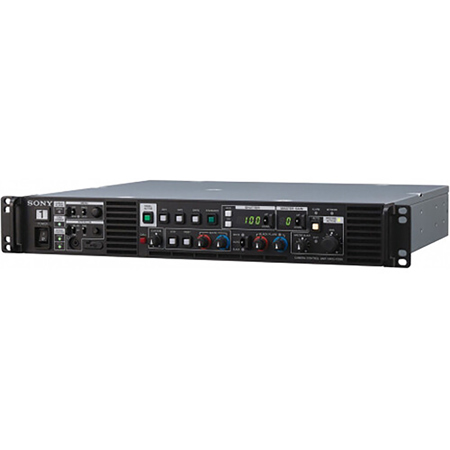

Sony HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera (Neutrik)
Sony HXCU-FZ90: Picture 1 thumbnail
Sony HXCU-FZ90: Picture 2 thumbnail
Sony HXCU-FZ90: Picture 3 thumbnail
See all Sony items

Sony HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera (Neutrik)

SKU: SOHXCUFZ90N MFR: HXCU-FZ90N
Be the first to review this itemAsk a Question
$7,200.00
OR
$600/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Enhance your HXC-FZ90 camera with this Sony camera control unit for seamless operation.
  • Achieve stunning 4K video output with multiple 12G/6G/3G/HD-SDI outputs for pro workflows.
  • Enjoy extended camera control up to 10km using single-mode fiber optic cable connectivity.
  • Ensure stable power supply over long distances, up to 300m, for uninterrupted video shoots.
  • Integrate easily with professional audio using XLR outputs with selectable levels (+4dBu).
  • Simplify integration using multiple remote and trunk connections for advanced video setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Sony HXCU-FZ90 Specifications

I/O

I/O

Jump to...

  • Camera

    Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type)

  • Distance of Power Supply

    300 m

  • Distance of Fiber Cable

    10 km (max.) by Single Mode Fiber Cable (LC type) (with HXC-FZ90)

  • Intercom/Tally/Program

    D-sub 25-pin, female (x1)
    INTERCOM (PROD, ENG), 4 Wire/RTS: 0 dBu, Clear-Com: -14 dBu
    PGM
    TALLY (R, G)
    PREVIEW OUT

  • Remote

    8-pin (x1)

  • Trunk

    12-pin(x1)

  • LAN\u3000COM

    RJ-45 8-pin

  • NETWORK TRUNK

    RJ-45 8-pin

  • Reference

    BNC (x2), In: HD: SMPTE 274M, Tri-Level Sync, 0.6 Vp-p, 75 SD: Black Burst (NTSC: 0.286 Vp-p, 75 / PAL: 0.3 Vp-p, 75 )

  • Prompter

    BNC (x2), In: VBS, 1.0 Vp-p, 75 \u03A9, 1 system, Out: Loop-Through

  • SDI I/O 1 ~ 4

    3G/HD/SD SDI I/O
    BNC (x4)
    3G SDI: SMPTE ST424/425 Level-A/B,0.8 Vp-p, 75 \u03A9, 2.970 Gbps/2.967 Gbps
    HD SDI: SMPTE ST292, 0.8 Vp-p, 75 \u03A9,1.485 Gbps/1.4835 Gbps
    SD SDI: SMPTE ST259, 0.8 Vp-p, 75 \u03A9,270 Mbps
    3G SDI/HD SDI/SD SDI

1/0

Jump to...

  • Intercom (on the front panel)

    EARPHONE: 4-pole mini jack

Other

Jump to...

  • Power Requirements

    AC 100 V to 240 V, 50/60 Hz

  • Operating Temperature

    41F to +104F

  • Signal Format

    4K 2160: 59.94p, 50p (2SI, SQD, Level-A/B) HD 1080: 59.94p, 59.94i, 50p, 50i, 29.97PsF, 25PsF, 23.98PsF, HD 720: 59.94p, 50p SD 480: 59.94i, 576: 50i

  • AC In

    (x1), AC 100 V to 240 V

  • SDI Out 1,2

    3G/HD/SD SDI OUTPUT
    BNC (x4)
    3G SDI: SMPTE ST424/425 Level-A/B,
    0.8 Vp-p, 75 \u03A9, 2.970 Gbps/2.967 Gbps
    HD SDI: SMPTE ST292, 0.8 Vp-p, 75 ohm,
    1.485 Gbps/1.4835 Gbps
    SD SDI: SMPTE ST259, 0.8 Vp-p, 75ohm,
    270 Mbps
    3G SDI/HD SDI/SD SDI

  • UHD Out 1,2

    12G/6G/3G/HD SDI OUTPUT
    BNC (x2)
    12G SDI: SMPTE ST2082, 0.8 Vp-p, 75 ohm,
    11.88 Gbps/11.868 Gbps
    6G SDI: SMPTE ST2081, 0.8 Vp-p, 75 ohm,
    5.940 Gbps/5.934 Gbps
    3G SDI: SMPTE ST424/425 Level-A/B,
    0.8 Vp-p, 75 ohm, 2.970 Gbps/2.967 Gbps
    HD SDI: SMPTE ST292, 0.8 Vp-p, 75 ohm,
    1.485 Gbps/1.4835 Gbps

  • Character / Sync

    BNC (x1), VBS, 1 Vp-p, 75 ohm
    HD SYNC: Tri-level sync, 0.6 Vp-p, 75 ohm
    SD SYNC: NTSC: 0.286 Vp-p, 75 ohm
    PAL: 0.3 Vp-p, 75 ohm

  • Audio Out CH-1, CH-2

    XLR 3-pin, male (x2), 0/-20 dBu/+4 dBu

About Sony HXCU-FZ90

In combination with the HXC-FZ90 camera and HZC-UHD9, the HXCU-FZ90 CCU also supports 4K HDR (HLG/S-Log3) and SR Live for HDR, for a cost-effective, future-proof solution.

Multiple frame rates over 3G-SDI and 12G-SDI signals
Work with a camera head and CCU that can comfortably output 2160/50p, 59.94p and 60.00p over 12G-SDI and 1080/50p, 59.94p and 60.00p over 3G-SDI. The new processor can also support 1080/23.98 PsF, 24 PsF and 29.97 PsF.

Future-proof 4K and 4K HDR support
Combine a software upgrade with the HXC-FZ90 to output 4K and 4K HDR (HLG/S-Log3) within BT.2020, depending on the look needed.

Fiber cable extension
Add the HXCE-FZ90 extension unit to carry high-quality pictures for up to 6.21 mi over a Neutrik single mode fiber connection -or carry both signals and power for up to 3.28 yd.

Sony HXCU-FZ90 Features

  • Multiple frame rates over 3G-SDI and 12G-SDI signals
  • Future-proof 4K and 4K HDR support

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your HXC-FZ90 camera with this Sony camera control unit for seamless operation.
  • Achieve stunning 4K video output with multiple 12G/6G/3G/HD-SDI outputs for pro workflows.
  • Enjoy extended camera control up to 10km using single-mode fiber optic cable connectivity.
  • Ensure stable power supply over long distances, up to 300m, for uninterrupted video shoots.
  • Integrate easily with professional audio using XLR outputs with selectable levels (+4dBu).
  • Simplify integration using multiple remote and trunk connections for advanced video setups.

What's in the box:

  • Sony HXCU-FZ90
  • Sony 1 Year Warranty
