Sony Digital Triax Control Unit for HXC-D70 Camera and PMW320/350/400/500 Camcorder System

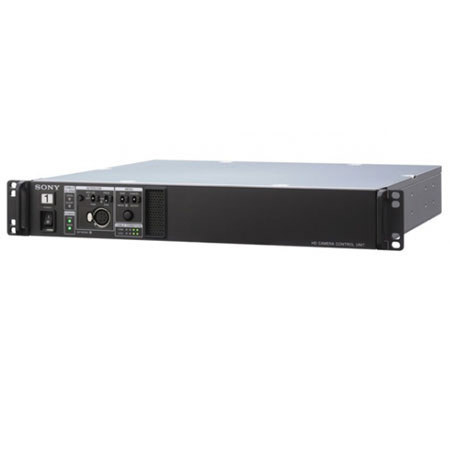

The Sony HXCU-TX70 is a 19" full rack (1.5RU height) unit exclusively designed for use with the HXC-D70 camera for low-latency digital Triax operation. The completed signal interface ports are available on rear side of the HXCU-TX70 such as HD-SDI, SD-SDI, Prompter and Return video. Variety of remote control panels are available to control and adjust the camera parameters, HKCU-FP2 front control panel that can directly be attached to the front panel of the HXCU-TX70 and RCP-1000/1001/1500/1501 remote control panel.

The CCU allows you to control the HXC-D70 and PMW-320/350/400/500 up to a maximum distance of 1200 meters, including the power and signals of Tally, Intercom, Video Return and also Prompter.

Digital Triax Connection
Helps ensure best picture quality and easy integration of the HXC-D70 and PMW-320/350/400/500 using conventional triax infrastructure up to a maximum distance of 1200' with 14.5mm cable and 600m with 8.5mm cable.

Connection for all signals
Provides flexible integration and the possibility to extend the operation with all signals (Tally, Intercom, Video Return and Prompter) in full HD.

Selectable Outputs
Features four selectable SD/HD-SDI outputs plus analogue VBS and component, HDMI and S-Video outputs.

Compatible with RCP-1xXX Series remote control panels and RCP software
Allows you to use RCP-1xXX Series remote control panels.

Operates with CA-TX70 and HKCU-FP2
Works seamlessly with the CA-TX70 digital triax adaptor and the HKCU-FP2 optional front control panel can be attached onto the HXCU-TX70.
