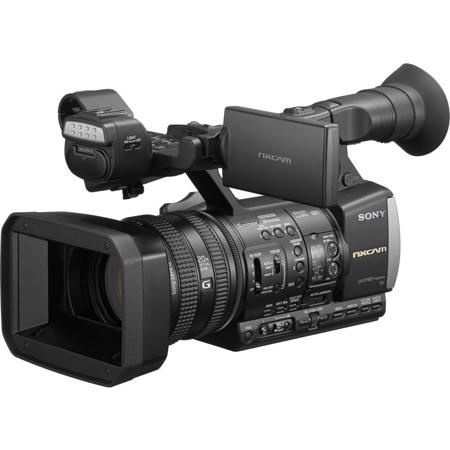

Sony HXR-NX3/1 NXCAM Professional Handheld Camcorder with 20x Optical Zoom G Lens, 3x1/2.8" Exmor CMOS Sensor, 1080p Resolution, Wi-Fi, USB2.0/HDMI

SKU: SOHXRNX31

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Sony HXR-NX3/1 Specifications

  • Camera: Sensor

    3x 1/2.8" Exmor CMOS Sensor

  • Camera: Pixel Count

    Total: 2.41 Megapixel
    Effective: 2.07 Megapixel

  • Camera: Minimum Illumination

    60i: 1.2 lux (1/30 shutter speed, auto iris/gain)
    60i: 0.6 lux (1/30 shutter speed, auto iris, gain 30dB)

  • Camera: Shutter Speed

    1/4 to 1/10,000 second

  • Camera: White Balance

    Preset (Outdoor:5600K), A, B

  • Camera: Gain

    -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB, AGC

  • Camera: Gamma Curve

    Selectable

  • Camera: Built-In ND Filters

    Clear, 1/4, 1/16, 1/64

  • Lens Mount

    Fixed

  • Lens: Zoom Ratio

    20x (optical), servo/manual

  • Lens: Focal Length

    4.1 to 82.0 mm

  • Lens: 35mm Equivalent Focal Length

    28.8 to 576.0mm (16:9)
    35.2 to 705.0mm (4:3)

  • Lens: Iris

    f/1.6 to f/11, auto/manual selectable

  • Lens: Focus

    AF/MF selectable

  • Lens: Minimum Focus Distance

    Wide: 0.4" (10.0 mm) Tele: 31.5"(800.0 mm)

  • Lens: Image Stabilizer

    ON/OFF selectable, shift lens

  • Lens: Filter Diameter

    72mm

  • Video Format

    HD: MPEG-4 AVC/H.2264 AVCHD 2.0
    SD: DV (AVI)
    MP4: MPEG-4/H.264 with MP4 wrapper

  • Audio Format

    HD: Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz
    SD: Linear PCM 2ch, 16-bit, 48 kHz
    MP4: AAC 2ch, 16-bit, 48 kHz

  • Resolutions & Frame Rates

    HD:
    PS (28Mbps): 1920 x 1080/60p, 16:9 FX (24Mbps): 1920 x 1080/60i, 30p,24p, 16:9, 1280 x 720/60p, 16:9 FH (17Mbps): 1920 x 1080/60i, 30p,24p, 16:9, 1280 x 720/60p, 16:9 HQ (9Mbps): 1440 x 1080/60i, 16:9, 1280 x 720/60p, 16:9 LP (5Mbps): 1440 x 1080/60i, 16:9
    SD:
    DV (25Mbps): 720 x 480/60i, 16:9, 4:3
    MP4:
    MP4 (3.5Mbps): 1280 x 720/30p, 24p, 16:9

  • Recording/Playback Time

    Approx. 290min(SDXC 64GB, PS, LPCM)
    Approx. 340min(SDXC 64GB, FX, LPCM)
    Approx. 450min(SDXC 64GB, FH, LPCM)

  • Viewfinder

    0.45" LCD
    852 x 480
    Aspect Ratio: 16:9

  • LCD Monitor

    3.5" LCD monitor
    Effective Pixels: Approx. 921,000
    640 x 480
    Aspect Ratio: 16:9

  • HDMI Output

    1x Type A

  • Composite Output

    1x BNC, NTSC

  • Audio Input

    2 XLR (3-pin), line/mic/mic +48 V selectable

  • Audio Output

    RCA pin

  • USB

    mini-AB USB 2.0, mass storage/host

  • Headphone Output

    1x 3.5 mm stereo mini jack

  • Speaker Output

    Monaural

  • DC Input

    DC jack

  • Remote

    1x 2.5 mm stereo mini jack

  • Media Type

    1x SD/SDHC/SDXC & Memory Stick Duo
    1x SD/SDHC/SDXC

  • Built-In Microphone

    Omni-directional stereo electret condenser microphone

  • Built-in Light

    LED
    Luminous Intensity: Approx. 200 lx at 3.3' (1.0 m), Approx. 800 lx at 16.4' (5.0 m)
    Lighting Angle: Approx. 30deg.
    Color Temperature: Approx. 5,500K

  • Wi-Fi

    IEEE 802.11 b/g/n
    2.4 GHz bandwidth
    Security: WEP/WPA-PSK/WPA2-PSK
    NFC Forum Type 3 Tag compliant

  • Power Requirements

    Battery pack: 7.2 VDC
    AC Adapter: 8.4 VDC

  • Power Consumption

    Approx. 6.4 W with XLR mic while recording, EVF On, Video light Off
    Approx. 6.9 W with XLR mic while recording, LCD monitor On, Video light Off

  • Battery Operating Time

    Approx. 410 min with NP-F970 battery (video light Off)
    Approx. 265 min with NP-F970 battery (video light On)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Dimensions (W x H x D)

    With lens hood, eye piece: 6.9 x 7.6 x 15.5" / 17.52 x 19.30 x 39.37cm (Approx. )

  • Weight

    With Lens Hood: 4.87lbs / 2.20kg (Approx.)
    With Lens Hood, EVF Eyecup and NP-F970 Battery: 5.6lbs / 2.54kg (Approx.)

  • UPC Code

    027242884632

22 Accessories for Sony HXR-NX3/1 NXCAM Professional Handheld Camcorder with 20x Optical Zoom G Lens, 3x1/2.8" Exmor CMOS Sensor, 1080p Resolution, Wi-Fi, USB2.0/HDMI

  • All Accessories (22)
  • Bags & Cases (2)
  • Microphones & Audio (8)
  • Batteries & Power Supply (4)
  • Cables & Adapters (1)
  • Filters (3)
  • Headphones (1)
  • Microphones (2)
  • Flash & Lighting (1)

About Sony HXR-NX3/1

The Sony HXR-NX3/1 NXCAM Professional Handheld Camcorder brings high-quality performance, adaptability and ease of use to a compact, handheld body. The camcorder features a 3-chip Exmor sensor with Full HD 1920x1080 resolution, Sony G lens with 20x optical zoom range and a 40x Clear Image Zoom for 35mm equivalent focal lengths up to 1152mm. It also features Wi-Fi connectivity for transferring video files from the camcorder to mobile devices, as well as controlling camera functions from your smartphone or tablet. A network-friendly 720p, 3 Mbps MP4 recording option allows for easy transfer and compatibility with computer, smartphones, tablets and other mobile devices.

The HXR-NX3/1 records video using the AVCHD 2.0 format, with frame rates up to 60p for recording smooth motion. 60i and 24p modes are also available. You can also record in the DV format, letting you fit the camcorder into existing DV workflows. Media is recorded to two SD memory card slots. You can choose to record simultaneously to both cards or use the relay mode which switches recording automatically to the second memory card when the first one is full. The two card slots can be controlled independently from two separate record buttons. An HDMI output connector provides uncompressed 8-bit 4:2:2 signals while shooting for use with external recorders. The Sony HXR-NX3/1 has Separate rings for focus, iris and zoom. It features built-in ND filters.

3 Exmor CMOS Sensors
The HXR-NX3/1 features three 1/2.8" Full HD CMOS sensors, one-sensor for the Red, Green and Blue color channels. This means high detail and texture, even on high-contrast colors. And, thanks to Sony's Exmor technology, the CMOS sensors deliver low noise and high sensitivity for low-light shooting situations.

Sony G Lens with 20x Optical Zoom, 40x Clear Image Zoom
The Sony G lens provides high image quality while offering 20x optical zoom with a 35mm equivalent focal range of 28.8mm to 576mm. When more telephoto reach is needed a 40x "Clear Image Zoom" allows you to reach a 35mm equivalent focal lengths up to 1152mm.

Frame Rate Flexibility
The camcorder records using the AVCHD 2.0 codec for Full HD 1920x1080 resolution video at frame rates of 24p, 30p, 60i and 60p. The camcorder also offers 720/60p AVCHD capture, 2x slow motion and 60x quick motion recording, as well as standard definition DV recording. The two SD card slots enable simultaneous or relay recording.

Wi-Fi Control
Use your smartphone or tablet as a remote viewfinder as well as a remote control for camera functions such as recording start/stop, zoom, iris and touch auto focus. The Wi-Fi remote works with both iOS and Android devices. MP4 video streaming from the camera delivers up to 30 fps to your wireless device. Frame-rate will depend on the processor speed of the mobile device.

NFC One-Touch Remote
Near-Field Communication (NFC) chipset allows users to establish a Wi-Fi connection simply by touching an NFC-compatible smartphone or tablet on the camcorder.

Built-In LED Video Light
For great versatility when shooting close-ups and interviews, the HXR-NX3/1 comes equipped with an LED video light. The light outputs 200 lux at 3.3 feet and 800 lux at 1.6 feet.

What's in the box:

  • Sony HXR-NX3/1 NXCAM Professional Handheld Camcorder
  • Lens Hood
  • NPF770 Rechargeable Battery
  • EVF Eyecup
  • Infrared Remote Commander
  • CR2025 battery
  • AC-VL1 AC Adaptor
  • DK-415 Battery Charger to Camera Cable
  • AC Cable
  • Cold Shoe Kit
  • CD-ROM with Operating Instructions
  • Sony 1 Year Limited Warranty
