Sony HXR-NX5U Camcorder with Switronix PowerBase 70 Battery & Power Tap Charger
See all Sony items

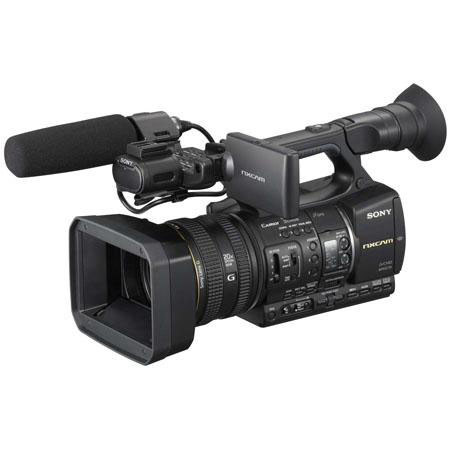

Sony HXR-NX5U NXCAM Digital HD Video Camcorder, 3.2 LCD - Bundle - with Switronix Powerbase 70 70Wh Battery Pack, and Switronix Power Tap Charger

SKU: SOHXRNX5UK
(12)

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony HXR-NX5U Specifications

  • Built-in Optical Filters

    Clear
    1/4
    1/16
    1/64

  • Effective Picture Elements

    Approx. 1,037,000 pixels with ClearVid array

  • Gain Selection

    -6
    -3
    0
    3
    6
    9
    12
    15
    18
    21 dB
    AGC

  • Minimum Illumination

    1.5 lx (auto gain, auto iris, 1/30 shutter)

  • Shutter Speed (Time)

    Auto, Manual 60i/30p: 1/4-1/10,000, 24p: 1/3-1/10,000 sec.

  • Slow & Quick Motion Function

    120 fps (fixed) as improved Smooth Slow Rec.

  • Slow Shutter

    1/4 sec.
    1/8 sec.
    1/15 sec.
    1/30 sec.

  • Audio Recording

    HD: Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit 48kHz
    SD: Dolby Digital 2ch, 16bit, 48kHz

  • Mass

    (w/Lens hood with Lens cover) 2.2 kg (4 lb 15 oz)
    (w/NP-F570 Battery, Lens hood with Lens cover, large eyecup, ECM-XM1, Memory card) 2.5 kg (5 lb 7 oz)
    (w/NP-F770 Battery, Lens hood with Lens cover, large eyecup, ECM-XM1, Memory card) 2.6 kg (5 lb 11 oz)
    (w/NP-F970 Battery, Lens hood with Lens cover, large eyecup, ECM-XM1, Memory card) 2.7 kg (5 lb 14 oz)

  • Operating Temperature

    0 to +40 deg C (+32 to +104 deg F)

  • Power Consumption

    ECM-XM1 and LCD with normal brightness 7.7W (When Flash Memory Unit HXR-FMU128 is used, the average power consumption increases about 1.1W)

  • Power Requirements

    AC adaptor / Battery 8.4V / 7.2V

  • Recording Frame Rate NTSC Mode

    AVCHD FX (24Mbps) 1920x1080/60i
    AVCHD FH (17Mbps) 1920x-1080/60i
    AVCHD HQ (9Mbps) 1440x1080/60i
    AVCHD LP (5Mbps) 1440x1080/60i
    AVCHD FX (24Mbps) 1920x1080/24p
    AVCHD FH (17Mbps) 1920x1080/24p
    AVCHD FX (24Mbps) 1920x1080/30p
    AVCHD FH (17Mbps) 1920x1080/30p
    AVCHD FX (24Mbps) 1280x720/60p
    AVCHD FH (17Mbps) 1280x720/60p
    MPEG2 SD HQ (9Mbps) 720x480/60i
    MPEG2 SD HQ (9Mbps) 720x480/60i (24p Scan)
    MPEG2 SD HQ (9Mbps) 720x480/60i (30p Scan)

  • Recording Media

    Memory Stick PRO Duo
    Memory Stick PRO Duo (High Speed)
    Memory Stick PRO Duo (Mark2)
    Memory Stick PRO-HG Duo
    Memory Stick PRO-HG Duo HX

  • Recording/Playback Time

    170 min (2h 50m) with 32GB Memory Stick PRO-HX Duo FX (24Mbps) Linear PCM 2ch recording

  • Storage Temperature

    -20 to +60 deg C (-4 to +140 deg F)

  • Video Recording Format

    HD: MPEG-4 AVC/H.264 (AVCHD)
    SD: MPEG-2 PS

  • Focal Length

    f = 4.1 to 82.0 mm (equivalent to f = 29.5 to 590 mm at 16:9 mode, f = 36.1 to 722 mm at 4.3 mode on 35 mm lens)

  • Zoom Ratio Selectable

    Sony G Lens, 20x (optical), 1.5x Digital Extender

  • Audio In

    XLR 3-pin (female) (x2)
    line/mic/mic +48 V selectable

  • Audio Out

    RCA type (CH-1, CH-2)

  • Component Out

    RCA type (x3) via A/V multi connector

  • Composite Video Out

    RCA type (x1)

  • DC In

    Power cord

  • Remote

    Yes

  • SDI Out

    BNC (x1)
    HD-SDI/SD-SDI selectable

  • USB

    Mini-B (x1)

  • Built-in LCD Monitor

    3.2 inch-type, XtraFine LCD, approximately 921,600 dots, hybrid type, 16:9 aspect ratio

  • Viewfinder

    0.45 inch-type approximately 1,226,880 dots (852 x 3(RGB) x 480), 16:9 aspect ratio

  • UPC Code

    846431074070

7 Accessories for Sony HXR-NX5U NXCAM Digital HD Video Camcorder, 3.2 LCD - Bundle - with Switronix Powerbase 70 70Wh Battery Pack, and Switronix Power Tap Charger

  • All Accessories (7)
  • Cables & Adapters (1)
  • Bags & Cases (1)
  • Filters (3)
  • Headphones (1)
  • Microphones & Audio (1)
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
$113.00
Recommended
Sony ECM-680S MS Stereo Shotgun Microphone
Sony ECM-680S MS Stereo Shotgun Microphone
$1,200.00
Recommended
Tiffen Photo Essentials Three Filter Kit, 72mm
Tiffen Photo Essentials Three Filter Kit, 72mm
$89.99
Recommended
ProOPTIC Pro Digital 72mm Multi Coated UV Ultra Violet Filter
ProOPTIC Pro Digital 72mm Multi Coated UV Ultra Violet Filter
$13.95
Recommended
Hosa Technology 3' 3-Pin Straight XLR Male to Right Angle XLR Female Audio Cable
Hosa Technology 3' 3-Pin Straight XLR Male to Right Angle XLR Female Audio Cable
$13.95
Porta Brace DVO2U DV Organizer Field Production Bag
Porta Brace DVO2U DV Organizer Field Production Bag
$313.37
Tiffen 72mm Digital Essentials Filter Kit
Tiffen 72mm Digital Essentials Filter Kit
$48.94

About Sony HXR-NX5U

The Sony HXR-NX5U camcorder is the first product of the Sony NXCAM generation and a new category of tapeless memory camcorder, providing an ideal balance of power and performance in the digital age. Utilizing the revolutionary AVCHD format, this camcorder offers long duration recording - with dual memory slots - on affordable consumer memory cards. As it facilitates a totally IT-based workflow, the HXR-NX5U has the potential to profoundly change the way content is created.

Simultaneous hybrid recording is available in HD and SD formats, using the optional HXR-FMU128 flash memory unit. In any format, breathtaking picture quality is assured with proven features such as a state-of-the-art G Lens and three Exmor CMOS sensors with a ClearVid array. Professionals expect this standard of picture quality from Sony and accept nothing less.

Sony HXR-NX5U Features

  • Adorama Camera Valuable Bundle. Kit Includes.
  • Sony HXR-NX5U NXCAM Digital HD Video Camera Recorder, AC Adapter/Charger AC-VL1 , Rechargeable Battery Pack NP-F770, Connecting Cord DK-415, Microphone ECM-XM1 , Remote Control Commander RMT-845, Component Video Cable, Audio Video Connecting Cable, USB Cable, Lithium Battery, Application Software (CD-ROM), Sony 1 Year USA Warranty.
  • Powerbase 70 for Sony L Style Camcorders, with 24" Cable.
  • Power TAP Charger for PB70, PowerBase 70 Battery Pack.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • "Sony HXR-NX5U NXCAM Digital HD Video Camera Recorder
  • AC Adapter/Charger AC-VL1
  • Rechargeable Battery Pack NP-F770
  • Connecting Cord DK-415
  • Microphone ECM-XM1
  • Remote Control Commander RMT-845
  • Component Video Cable
  • Audio Video Connecting Cable
  • USB Cable
  • Large Eyecup
  • Lens Hood
  • Lens Cover
  • Accessory Shoe Kit
  • Lithium Battery
  • Lithium Clock (installed)
  • CD-ROM
  • Sony 1 Year USA Warranty
  • Switronix Powerbase 70 Battery Pack with 24"" Cable
  • Switronix Power Tap Charger"
