Sonifex HY-03 Automatic Digital Telephone Balance Unit, Free Standing
See all Sonifex items

Sonifex HY-03 Automatic Digital Telephone Balance Unit, Free Standing, 50 Ohms Impedance

SKU: SOHY03US
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sonifex HY-03 Specifications

  • Input Impedance

    Line Mode (Clean Feed): 10kOhms balanced 0dB
    Microphone Mode: 200Ohms balanced

  • Clean Feed Limiting Input

    -4dBu

  • Microphone Level Range

    From 74dB to 40dB adjusted by preset pot

  • Bandwidth to Telephone Line

    250Hz - 4kHz, -3dB ref 1kHz

  • Telephone Line Impedance

    600Ohms (Nominally)

  • Telephone Line Impedance Range

    300 to 1500Ohms

  • Output Impedance

    50Ohms balanced floating 0dBu

  • Output Level Range

    +8dB to -14dB adjusted by preset pot

  • Rejection Ratio

    45dB on 1kHz tone, typically 28dB on complex waveforms, reference peak level of 0dB

  • Ring Detector Sensitivity

    1 ring to 6 rings

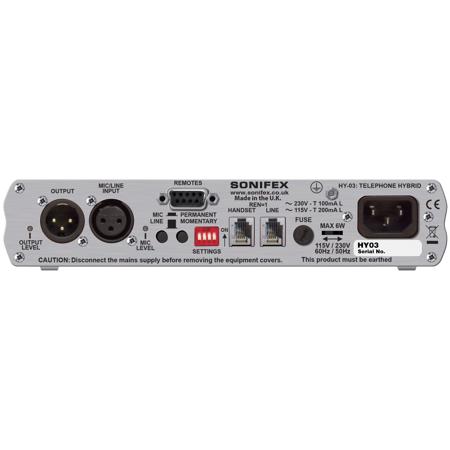

  • Connections

    Mic/Line Input: XLR 3 pin female, with push-button mic/line selection
    Line Output: XLR 3 pin male
    Telephone Line: RJ11 6/4 socket
    Telephone Handset/Instrument: RJ11 6/4 socket
    Remotes: 9-way D-type socketbr>Power: IEC mains (CEE22)

  • Dimensions (H x W x D)

    4.5 (1U) x 21.8 x 17.5cm / 1.77 x 55.37 x 6.89"

  • Weight

    2.76lbs / 1.25kg

About Sonifex HY-03

The Sonifex HY-03 Automatic Digital Telephone Balance Unit is the replacement for the HY-02, which for many years has set the standard as an excellent value, high quality telephone hybrid.

Sonifex HY-03 Features

  • Fully automatic - adapts to varying line conditions and has automatic signal limiting
  • Local and remote line hold switching - calls can be remotely switched through a mixing console
  • Momentary or permanent latching remotes can be enabled
  • Balanced mic/line input - 10k ohm balanced input selectable for 0dBu clean feed line, or microphone level with adjustable gain
  • Balanced output - 0dBu low impedance balanced output, with output gain adjustment
  • Mixed output - the output can be a mix of the caller and mic/line input signals for recording both sides of the telephone conversation
  • Integrated ring detector - automatic call answering after a pre-determined number of rings
  • Fitted with K-break disconnect detection as standard with an option for dial-tone disconnect using the optional HY-03DTD board
  • The HY-03DTD board can be configured to disconnect on recognizing the dial tone used in a specific country
  • Line limiter, bandpass filter and output noise gate with preset threshold providing low distortion crystal clear audio
  • 28dB typical line balance rejection
  • Built in power supply with switchable 115V, or 230V, mains input
  • BABT approval compliant with European PTT specifications

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Fully automatic
  • Adapts to varying line conditions & has automatic signal limiting
  • Local & remote line hold switching
  • Calls can be remotely switched through a mixing console
  • Momentary or permanent latching remotes can be enabled
  • Balanced mic/line input

What's in the box:

  • Sonifex HY-03 Automatic Analogue Telephone Balance Unit
  • RJ11 to RJ11 Telephone Line Lead
  • RJ11 to BT Plug Telephone Line Lead
  • BT Handset Socket to RJ11 Plug Adapter
  • IEC Mains Lead
  • Handbook
  • Sonifex Warranty
