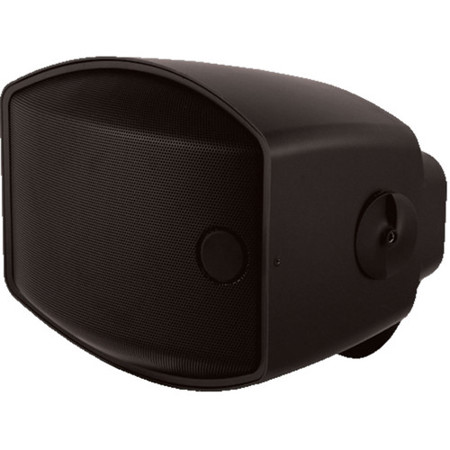

SoundTube IPD-SM500I-II 5.25" 2-Way IP and Dante Addressable Coaxial Surface Mount PoE Speaker, Black, Single

The IPD-SM500i-II is a 5.25", two-way surface-mount speaker for IP-addressable audio networks on the Dante platform. It incorporates a 5.25" polypropylene woofer and 1" convex titanium tweeter with waveguide in an injection-molded, glass fiber reinforced ABS enclosure. The speaker delivers a frequency response of 60 Hz - 22 kHz (-10 dB) with consistent, broad high frequency dispersion supplied through SoundTube's proprietary BroadBeam technology.

Power, audio and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to the STNet-Switch, which provides 40W PoE (Power over Ethernet) to each speaker. Configuration and zoning of the speaker is done via software. Should any problem occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.

Mounting hardware for the IPDSM500i-II is included and features SoundTube's proprietary Stealth bracket mounting system, with a security knob to reduce tampering after placement. The speaker also offers unlimited directional aiming and a low profile. The system includes a detachable mounting plate designed for premounting in either wall or pole applications.

Applications
Developed for Dante audio platforms, the IPD-SM500i-II is ideal for hotels, museums, education, retail stores, restaurants, casinos, airports or corporate installations. This speaker ideal for both indoor and damp outdoor uses. The full frequency dispersion pattern and high sensitivity make the IPD-SM500i-II ideal for both music and paging.

BroadBeam Wide Dispersion Technology
SoundTube's proprietary BroadBeam technology incorporates a high-frequency waveguide mated to a 1-inch convex aluminum tweeter. BroadBeam waveguide technology delivers a consistent BroadBeam dispersion pattern across the upper registers of the frequency spectrum. The result is an audio system requiring fewer speakers with higher intelligibility, offering reduced power needs, shorter installation time and cost savings on shipping and labor.

Patented SoundTube Technologies
SoundTube Entertainment and the MSE Audio Group are constantly developing new technologies that enhance audio product performance. SoundTube Entertainment innovations are protected by multiple U.S. and international patents, which explicitly cover SoundTube dome, enclosure and dispersion technologies. The MSE Audio Group actively defends its patents in order to protect SoundTube resellers and end users.
