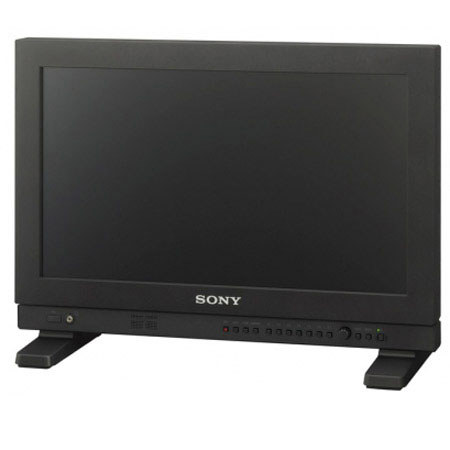

Sony LMDA170 17" Production Video LCD Monitor
See all Sony items

Sony LMDA170 17" Production Video LCD Monitor, 16:9 Native Aspect Ratio, 1080p Resolution

SKU: SOLMDA170
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony LMDA170 Specifications

  • Audio Amp

    1.0 Watts

  • Demod from SDI Input

    Yes

  • Mono/Stereo

    Both

  • Speakers in Chassis

    Yes

  • Computer Formats

    1280 x 1024: HDMI Input
    1280 x 768: HDMI Input
    1360 x 768: HDMI Input
    640 x 480: HDMI Input

  • 8 pin RJ 45 Parallel

    Yes

  • Network

    Yes

  • Remote Control

    Optional BKM 15R and/or BKM 16R

  • HDMI

    One

  • HDSDI (SMPTE 292M)

    Yes and twin SMPTE 425M 3G with active loop through

  • SDI (SMPTE 259M)

    Yes

  • Backlight Technology

    LED

  • Display Technology

    LCD

  • Image Aspect Ratio

    16:9 & 4:3

  • Native Aspect Ratio

    16:9

  • Resolution

    1920 x 1080

  • Screen Size

    16.5" (Diagonally)

  • On-Screen Display

    Menus, Tally, In Monitor Display, Video Format

  • Composite

    NTSC or PAL

  • Digital RGB

    720p, 1080i, 1080p

  • Digital Y Pb Pr

    720p, 1080i, 1080p

  • Digital Y R-Y B-Y

    525 line or 625 line

  • Multiple Language Display

    Yes

  • Audio Level Indicator

    Displayed as stereo pairs or individual mono channels. Up to 16 channels can be selected

  • EIA 608 Closed Caption

    Yes

  • EIA 708 Closed Caption

    Yes

  • Waveform Monitor

    Yes with line select and zoom functions

  • Operating Humidity

    30% to 85% non condensing

  • Operating Temperature

    32F to 95F

  • Storage Temperature

    -4F to +140F

  • Battery power

    Yes

  • DC Power

    12VDC

  • Internal or External Power supply

    Internal

  • Power Consumption

    42 Watts

  • Power Requirements

    100 to 240VAC

  • Video Image Formats

    1080 23.98P: SDI & HDMI
    1080 23.98Psf: SDI Only
    1080 24P: SDI & HDMI
    1080 24Psf: SDI Only
    1080 60P: SDI & HDMI
    1080 60i: SDI & HDMI
    480 60i: Composite, SDI & HDMI
    576 50i: Composite, SDI & HDMI
    720P 50 or 60Hz: SDI & HDMI

  • Dimensions (W x H x D)

    With Stand: 16 5/8 x 12 1/4 x 6 1/2" / 42.24 x 31.11 x 16.51cm
    Without Stand: 16 5/8 x 11 3/8 x 2 7/8" / 42.24 x 28.87 x 7.28cm

  • Weight

    10lbs / 4.53kg (Without handle)

  • UPC Code

    027242875319

About Sony LMDA170

The Sony LMDA170 17" Production Video LCD Monitor has a new low latency automatic I/P conversion, on screen tally and yoke mounting screw holes just like the new PVMA series Trimaster monitors. These new designs deliver more flexibility and ease of use for live program production, on set and broadcast truck applications. Sony has re-engineered their entire design, from the chassis to the IPS LCD panel, using new advanced material and parts. The result is a savings in space and weight which directly affect's logistical expenses.

Sony LMDA170 Features

  • Superb picture quality and stable color reproduction
  • New video processing engine with better image accuracy
  • Internal Waveform monitor with zoom and line select features
  • Internal Vectorscope with zoom
  • Both EIA/CEA 608/ 708 digital closed caption decoder
  • Monitor any of the 16 audio channels on the SDI input
  • Focus assist with adjustable colored edging
  • Time code display
  • Uses the same control system as the PVM 741, PVM 1741A and PVM 2541A
  • 3G/HDSDI/SDI, HDMI and composite inputs
  • Multi format input signal support including 480i, 720p, 1080i and 1080p
  • Frame rates from 23.98 to 60
  • Embedded audio decoding and display
  • Lighted Control Panel
  • 2 VDC power input on the PVMA170

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Internal Vectorscope
  • Focus assist with adjustable colored edging
  • Time code display
  • 3G/HDSDI/SDI, HDMI and composite inputs
  • Frame rates from 23.98 to 60
  • Embedded audio decoding and display

What's in the box:

  • Sony LMDA170 17 " Production Video LCD Monitor
  • Monitor Feet
  • Carrying Handle
  • Sony Warranty
