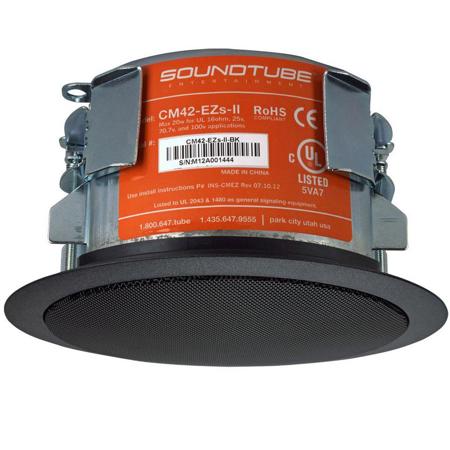

SoundTube CM42-EZs-II 4" 2-Way Coaxial In Ceiling Speaker with Short Can, 20W RMS, Black, Single

SKU: SOM42EZSIIBK MFR: CM42-EZS-II-BK
$131.05
Earn VIP Reward Points

Key Features

  • Experience exceptional audio with this SoundTube in-ceiling speaker, perfect for home theaters.
  • Enjoy seamless integration; this in-wall speaker's short can design fits tight spaces easily.
  • Achieve balanced sound; the 2-way coaxial design delivers crisp highs and rich low frequencies.
  • Customize your setup with the six-position tap selector for optimal audio in any room size.
  • Rely on durability with its steel backcan and robust construction, ensuring lasting performance.
  • Enjoy wide sound dispersion; its broad coverage angle fills rooms for immersive audio experiences.
See More Product Details
Special Order?Estimated to Ship: 10/02/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

SoundTube CM42-EZs-II Specifications

  • System Type

    4", coaxial, in-ceiling, sealed (20-watt transformer for 25/70.7/100-volt or transformer bypass)

  • Impedance

    16 Ohms (nominal)

  • Sensitivity

    At 2.83 V/1 m: 84.5dB
    At 1 W/1m 1: 87.5dB

  • Frequency Response

    160 Hz - 20 kHz (- 3dB)
    125 Hz - 22 kHz (-10dB)

  • Max. Program Power

    40W

  • Max. Continuous Power RMS

    20W

  • Max. Power SPL

    At 1 m: 100.5dB

  • Coverage Angle

    170 deg. (-6dB At 2kHz)
    95 deg. (-6dB At 10kHz)
    100 deg. (Avg. 2 - 10kHz)

  • Directivity Factor (Q)

    4.3 (averaged 100 Hz - 10 kHz); 4.2 (2 kHz)

  • Directivity Index (DI)

    5.7dB (averaged 100 Hz - 10 kHz); 6.2dB (2 kHz)

  • Tap Selector

    Six-position rotary switch with transformer bypass position

  • Transducer

    Low-Frequency Driver: 102mm (4.02")Treated fiber cone, cloth surround
    High-Frequency Driver: 19mm (0.75") Silk dome tweeter

  • Low-Frequency Voice Coil

    12.70mm (0.50")

  • Crossover Frequency

    5.0kHz

  • Network Type

    12dB per octave, 2nd order (Low-Pass)
    6dB per octave, 1st order (High-Pass)

  • Enclosure Alignment

    Sealed

  • Enclosure Material

    Drawn steel backcan with ABS baffle

  • Grille

    Painted Steel

  • Inputs

    4 position ceramic terminal strip

  • Mounting Hole Diameter

    165.1mm (6.50")

  • Min. / Max. Ceiling Thickness

    0.0mm (0.0") - 24.6mm (0.97")

  • Regulatory

    1480 (UEAY) and 2043 approved (UL)
    CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 146.8 x 95.3mm (5.78 x 3.75")
    Visible: 190.5 x 8.4mm (7.50 x 0.33")

  • Weight

    1.8kg (4.0 lbs)

  • UPC Code

    752830440289

About SoundTube CM42-EZs-II

Make an impactful addition to your audio setup with the Soundtube CM42-EZs-II, a 4-inch coaxial, two-way in-ceiling speaker designed for those who appreciate high-quality sound and efficient performance. This durable and reliable speaker is engineered to deliver true high efficiency across its operating bandwidth, ensuring clear and powerful audio reproduction.

Crafted with a 4-inch treated fiber driver and a cloth surround, the CM42-EZs-II is housed in a sealed, drawn steel backcan, which contributes to its stylish appearance and enhances the speaker's maximum frequency response of 125 Hz to 22 kHz (-10 dB). This compact design does not compromise on sound quality, making it an ideal choice for a discreet yet powerful audio solution.

Installation is streamlined and secure, thanks to the included mounting hardware featuring a constant-tension winged mounting system. The 21-gauge "full metal" steel tile bridge ensures the speaker can be rapidly and securely installed in any sheetrock or drop-tile application. The color-coded (orange) tile bridge, optional pre-construction bracket, and a six-position tap switch accommodate 25-, 70.7-, and 100-volt applications with a transformer bypass position, simplifying the ordering and stocking process.

The CM42-EZs-II is perfect for environments where both aesthetics and audio performance are of paramount importance. Whether it's for paging or background music, this speaker is an excellent choice for hotels, retail stores, restaurants, airports, churches (under eave), medical facilities, or boardrooms. The entire CM-EZ-II series is tailored for installations that demand high-efficiency and rapid installation without sacrificing sound quality.

For those seeking enhanced bass response, pairing the CM42-EZs-II with SoundTube's CM1001dT subwoofer will extend the low-end frequency response down to 50Hz, creating a full-range audio experience that is both immersive and refined.

Choose the Soundtube CM42-EZs-II for a durable, high-quality, and efficient in-ceiling speaker solution that blends seamlessly into your space while delivering reliable, top-tier audio performance.

SoundTube CM42-EZs-II Features

  • Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5" (88.9 mm)
  • One 4" (102 mm) treated fiber woofer with cloth surround and one 0.75" (19 mm) silk dome tweeter
  • Easy-access six-position tap switch for 25/70.7/100-volt and 16 Ohms transformer bypass position allows for easy ordering, stocking and installation
  • Reduced amplification costs with maximum efficiency including 87.5dB sensitivity and 16 Ohms impedance
  • Superior voice intelligibility with an average coverage angle of 100 deg. (2-10 kHz, independently verified)
  • Cost-effective 16 Ohms settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer
  • Incorporates a painted steel grille for lasting durability
  • Clamping allowance from 0.00" (0.0 mm) to 1.50" (38.1 mm)
  • UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
  • High-quality black painted finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience exceptional audio with this SoundTube in-ceiling speaker, perfect for home theaters.
  • Enjoy seamless integration; this in-wall speaker's short can design fits tight spaces easily.
  • Achieve balanced sound; the 2-way coaxial design delivers crisp highs and rich low frequencies.
  • Customize your setup with the six-position tap selector for optimal audio in any room size.
  • Rely on durability with its steel backcan and robust construction, ensuring lasting performance.
  • Enjoy wide sound dispersion; its broad coverage angle fills rooms for immersive audio experiences.

What's in the box:

  • SoundTube CM42-EZs-II 4 " 2-Way Coaxial In Ceiling Speaker
  • Tile Bridge
  • UL-Listed Flex Conduit Clamp
  • Paint Shield
  • Hole Template
  • Wire Nuts
  • SoundTube 5 Year Limited Warranty
