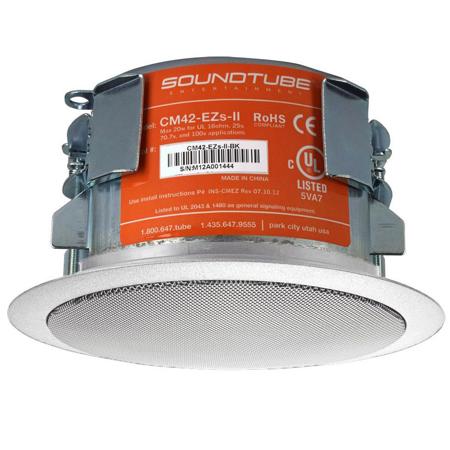

SoundTube CM42-EZs-II 4" 2-Way Coaxial In Ceiling Speaker with Short Can, 20W RMS, White, Single

SKU: SOM42EZSIIWH MFR: CM42-EZS-II-WH
$131.05
Earn VIP Reward Points

Key Features

  • Experience superior audio with this SoundTube in-ceiling speaker for crystal-clear sound.
  • Enjoy wide sound dispersion with a 170-degree coverage angle, perfect for home theaters.
  • This 4" 2-way coaxial speaker delivers balanced sound with a silk dome tweeter.
  • Achieve optimal sound quality with a frequency response of 160 Hz - 20 kHz in your space.
  • The in-ceiling speaker's short can design fits easily into tight spaces, great for install.
  • Install this durable, UL-listed speaker with ease using the included tile bridge and template.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube CM42-EZs-II Specifications

  • System Type

    4", coaxial, in-ceiling, sealed (20-watt transformer for 25/70.7/100-volt or transformer bypass)

  • Impedance

    16 Ohms (nominal)

  • Sensitivity

    At 2.83 V/1 m: 84.5dB
    At 1 W/1m 1: 87.5dB

  • Frequency Response

    160 Hz - 20 kHz (- 3dB)
    125 Hz - 22 kHz (-10dB)

  • Max. Program Power

    40W

  • Max. Continuous Power RMS

    20W

  • Max. Power SPL

    At 1 m: 100.5dB

  • Coverage Angle

    170 deg. (-6dB At 2kHz)
    95 deg. (-6dB At 10kHz)
    100 deg. (Avg. 2 - 10kHz)

  • Directivity Factor (Q)

    4.3 (averaged 100 Hz - 10 kHz); 4.2 (2 kHz)

  • Directivity Index (DI)

    5.7dB (averaged 100 Hz - 10 kHz); 6.2dB (2 kHz)

  • Tap Selector

    Six-position rotary switch with transformer bypass position

  • Transducer

    Low-Frequency Driver: 102mm (4.02")Treated fiber cone, cloth surround
    High-Frequency Driver: 19mm (0.75") Silk dome tweeter

  • Low-Frequency Voice Coil

    12.70mm (0.50")

  • Crossover Frequency

    5.0kHz

  • Network Type

    12dB per octave, 2nd order (Low-Pass)
    6dB per octave, 1st order (High-Pass)

  • Enclosure Alignment

    Sealed

  • Enclosure Material

    Drawn steel backcan with ABS baffle

  • Grille

    Painted Steel

  • Inputs

    4 position ceramic terminal strip

  • Mounting Hole Diameter

    165.1mm (6.50")

  • Min. / Max. Ceiling Thickness

    0.0mm (0.0") - 24.6mm (0.97")

  • Regulatory

    1480 (UEAY) and 2043 approved (UL)
    CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 146.8 x 95.3mm (5.78 x 3.75")
    Visible: 190.5 x 8.4mm (7.50 x 0.33")

  • Weight

    1.8kg (4.0 lbs)

  • UPC Code

    752830451483

About SoundTube CM42-EZs-II

For audio enthusiasts and professionals seeking an elegant and modern solution to their in-ceiling sound system needs, the CM42-EZs-II 4" 2-Way Coaxial In Ceiling Speaker with Short Can emerges as a top contender. This high-quality speaker is engineered by Soundtube, a brand synonymous with superior audio equipment, ensuring that users experience exceptional sound clarity and performance.

The CM42-EZs-II boasts a sleek, stylish design that seamlessly blends into any ceiling with its unobtrusive white finish, making it a durable and discreet choice for those who prioritize both aesthetics and audio quality. The speaker features a 4" treated fiber driver with a cloth surround, housed within a sealed, drawn steel backcan. This combination delivers a robust frequency response range of 125 Hz to 22 kHz (-10 dB), providing rich and detailed sound across the operating bandwidth.

Installation is made effortless thanks to the included mounting hardware, which utilizes a constant-tension winged mounting system. The 21-gauge "full metal" steel tile bridge ensures a rapid and secure installation, whether in sheetrock or drop-tile applications. The series simplifies the ordering and installation process with a color-coded (orange) tile bridge, an optional pre-construction bracket, and a six-position tap switch for 25-, 70.7-, and 100-volt applications, including a transformer bypass position.

Developed with paging and background music applications in mind, the CM42-EZs-II is the perfect fit for environments where cost-effectiveness, quality, and fitting are of utmost importance. It is ideally suited for a variety of settings, including hotels, retail stores, restaurants, airports, churches (under eave), medical facilities, and boardrooms. The entire CM-EZ-II series is crafted for installations that demand high efficiency and quick installation.

For those applications that require an enhanced bass response, pairing the CM42-EZs-II with SoundTube's CM1001dT subwoofer will extend the low-end frequency response down to 50Hz, ensuring a full and rich audio experience. Whether for commercial or residential use, this in-ceiling speaker stands out as a sophisticated and reliable choice for delivering superior sound performance.

SoundTube CM42-EZs-II Features

  • Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5" (88.9 mm)
  • One 4" (102 mm) treated fiber woofer with cloth surround and one 0.75" (19 mm) silk dome tweeter
  • Easy-access six-position tap switch for 25/70.7/100-volt and 16 Ohms transformer bypass position allows for easy ordering, stocking and installation
  • Reduced amplification costs with maximum efficiency including 87.5dB sensitivity and 16 Ohms impedance
  • Superior voice intelligibility with an average coverage angle of 100 deg. (2-10 kHz, independently verified)
  • Cost-effective 16 Ohms settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer
  • Incorporates a painted steel grille for lasting durability
  • Clamping allowance from 0.00" (0.0 mm) to 1.50" (38.1 mm)
  • UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
  • High-quality white painted finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this SoundTube in-ceiling speaker for crystal-clear sound.
  • Enjoy wide sound dispersion with a 170-degree coverage angle, perfect for home theaters.
  • This 4" 2-way coaxial speaker delivers balanced sound with a silk dome tweeter.
  • Achieve optimal sound quality with a frequency response of 160 Hz - 20 kHz in your space.
  • The in-ceiling speaker's short can design fits easily into tight spaces, great for install.
  • Install this durable, UL-listed speaker with ease using the included tile bridge and template.

What's in the box:

  • SoundTube CM42-EZs-II 4 " 2-Way Coaxial In Ceiling Speaker
  • Tile Bridge
  • UL-Listed Flex Conduit Clamp
  • Paint Shield
  • Hole Template
  • Wire Nuts
  • SoundTube 5 Year Limited Warranty
