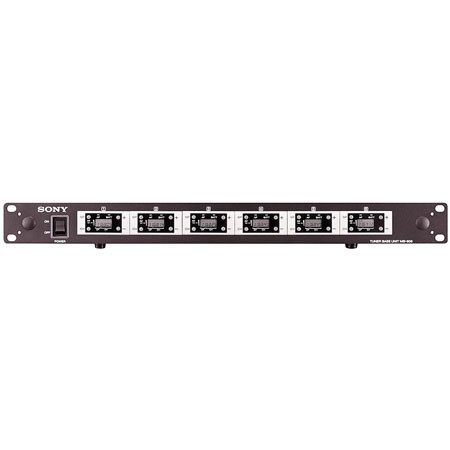

Sony MB-806A Modular UHF Tuner Base Unit

Sony's MB-806 is a modular UHF tuner base designed to house up to six WRU-806 orURX-M1 UHF tuner modules in one rack. A built-in active antenna divider allows one pair of AN-820A (Active) or K1314 (passive) antennas to operate all six channels. An output level switch selects mic or line operating level for all outputs. The reinforced steel frame is designed for secure module mounting and reliable transport.

Antenna gain switch:
• Allows user to adjust antenna sensitivity to prevent overload of antenna section of receiver.

Holds up to six UHF diversity tuner modules in 1 rack space:
• Compact modular design allows user configurability of one to six diversity tuners in a single rack space. Tuner modules supported include the WRU-806B (for use with WRT/ WRR series wireless systems), or alternatively the URX-M1 (for use with UWP series wireless systems).

Build-in active antenna divider:
• Allows one pair of AN-820A or K1314 antennas to operate all six channels. Supplies 9VDC antenna power to antenna jacks.

Output level switch:
• Selects mic or line operating level for all outputs.
