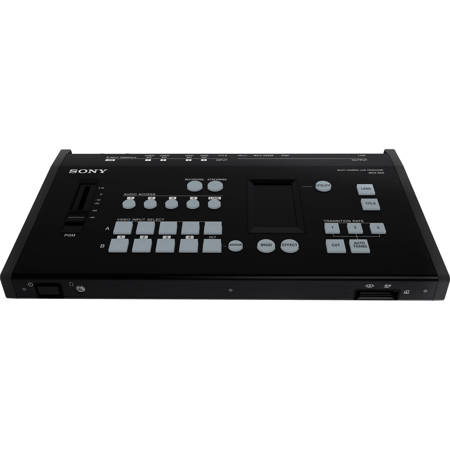

Sony MCX-500 4-Input Streaming Switcher

Sony is pleased to introduce the MCX-500 Multi-Camera Live Producer. The MCX-500 is an affordable, uniquely user-friendly and flexible 4ch compact switcher that makes it simple for a single operator or small team to produce a broadcast quality live event on a tight budget. Multiple video inputs include professional 3G-SDI, HDMI and Composite Video plus a dedicated graphics input, allowing the operator to mix and match sources as required depending on the production requirements.

This compact switcher also includes other value-added features such as internal program recording, effects capabilities and a live streaming output. The MCX-500 also includes a built-in Audio Mixer and a Multiview output for monitoring Program and Preview as well as camera sources on a single external monitor.

Everything you need in a compact switcher to accommodate small to medium-sized production
Measuring roughly the size of a laptop PC, the MCX-500 provides a 4ch video switcher with an enhanced feature set at an affordable price - Targeted at HoW, Education, Corporate and Wedding Markets.

Switcher
• Inputs: 4 Primary + 1x RGB for Title overlay
• 4x 3G-SDI/HD/SD, 2x HDMI (Type A), 2x CVBS/RGB for DSK
• Keyer for Picture-in-Picture effects and graphics overlays
• Transition effects (CUT/MIX/WIPE)

Multi-Function Capabilities
• AVCHD PGM recording to SD Card (Card Not Supplied)
• Streaming encoder for USTREAM Broadcast
• Audio Mixer: 4x Stereo (Embedded) + Analog L/R - XLR/TRS Line Level Inputs
• Hybrid operation with hardware buttons and LCD Touch Screen
• Software GUI operation option from PC

Low-Cost Multi Camera Control - When combined with the RM-30BP and HXR-NX5R
• Connect to NEW LANC Remote for multi camera control
• Tally output

Advanced Titles and Effects
The MCX-500 includes various traditional transition effects, such as Mix, Wipe and Cut, plus an additional layer for Keying and ChromaKey. Up to four layers of video or graphics can be mixed, enabling you to create a Picture-in picture effect along with a graphic overlay and logo key at the same time.

Efficient workflow without complicated set-ups - using less equipment
A Touch LCD Screen with easily recognizable ICON buttons, features configurable controls to greatly simplify operation. Included in the MCX-500 is a built-in audio mixer, recorder, streaming recorder and live streaming encoder. This removes the requirement for separate devices and simplifies set-up, while offering significant cost savings.

The MCX-500 panel is equipped with a configurable LCD Touchscreen and simplified USER interface. Trigger sophisticated predefined effects with a single touch on a user defined ICON. The panel's button layout is ergonomically designed enabling an operator to easily select sources - minimizing errors on air.

The HDMI Multi-viewer output provides a compact display for monitoring Program and Preview as well as camera sources on a single monitor.

Beyond an Ordinary Switcher - The MCX-500 features built-in Recording capability
An internal memory card slot provides the ability to record your production to an SD card, eliminating the need for an external recorder. As soon as the live event is over, you can provide the customer with a high quality AVCHD copy to archive, re-broadcast or even repackage using virtually any popular non-linear editing software.

Built-in Audio Mixer
With the MCX-500, there's no need for a separate Mixer for smaller productions. A built-in Audio Mixer provides essential mixing functions from the embedded camera inputs, while XLR/TRS (L/R) Line Level Inputs allow for the connection of an External Mixer for larger productions.

PC, Mac & Tablet Integration
The MCX-500 can be controlled from external devices such as a PC, Mac or Tablet - allowing for greater flexibility, especially when adding a Wi-Fi router for wireless control.

Direct Live Streaming
The MCX-500 also supports live streaming. Live stream your event in real time using a streaming service such as Ustream. Share scenes as they happen with high quality picture and sound, direct from the MCX-500 to a router via Ethernet - no PC required.

Create an affordable, reliable system configuration utilizing Sony products
The MCX-500 was built from the ground up with affordable integration in mind. Connect the MCX-500 with the RM-30BP LANC remote controller and newly introduced HXR-NX5R using inexpensive LANC cables, to create a multi-camera connection with Tally indication and synchronized rec trigger.
