AC 100 V to 240 V +/-10% 50/60 Hz
4.5 to 2.1 A (fully loaded)
5 deg.C to 40 deg.C (41 deg.F to 104 deg.F)
-20 deg.C to +60 deg.C (-4 deg.F to +140 deg.F)
10% to 90% RH
Max. 16, BNC type x 1 each
SMPTE292M (HDTV)
SMPTE259-C (SDTV)
Max. 8, BNC type x 2 each
SMPTE292M (HDTV)
SMPTE259-C (SDTV)
BNC type x 2, 75 Ohms with loop-through
HDTV system: HD tri-level sync, Analog black burst, or analog sync
SDTV system: Analog black burst or analog sync
BNC type x 1, 75 Ohms
HDTV system: HD tri-level sync
SDTV system: Analog sync
Control LAN: RJ-45 x 1, 100BASE-TX
Data LAN: RJ-45 x 1, 100BASE-TX
Control LAN: RJ-45 x 1, 100BASE-TX
Data LAN: RJ-45 x 1, 100BASE-TX
D-sub 25-pin (female) x 1
TTL level inputs x 8
Relay contact outputs x 4
Open collector outputs x 4
D-sub 25-pin (female) x 1
Relay contact outputs x 4
Open collector outputs x 4
D-sub 9-pin (female) x 1, RS-422A
17.37 x 5.25 x 20.5" / 44.11 x 13.33 x 52.07cm
48lbs / 21.77kg (fully loaded)
Take your production capabilities to the next level with the Sony Multi-Format Production Switcher. This advanced, high-tech switcher, housed in a compact chassis, is designed for optimal performance in small-scale OB vehicles, production studios, and editing suites. Its state-of-the-art multi-format capability ensures seamless operation in any current SD or HD format, making it a future-proof investment for both today's and tomorrow's productions.
The MFS-2000 Series offers three types of control panels, each engineered to deliver superior operational performance. It comes loaded with a plethora of powerful features, including a 2-channel DME function with preset effect patterns, a robust frame memory system, and an RGB color corrector function.

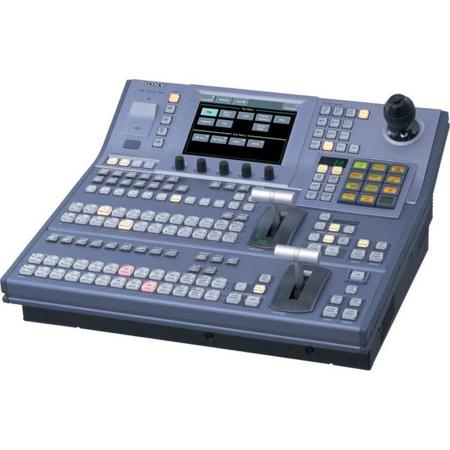

The switcher's user-friendly color touch-screen LCD panel and FlexiPad control panel with color LCD buttons make operation a breeze. The MFS-2000 Series is a perfect blend of power, size, and versatility, offering a sophisticated switcher system in both standard definition and multi-format configurations.
This professional-grade switcher supports a wide range of resolutions and frame rates, and can be easily upgraded to a multi-format system with a simple software upgrade. This flexibility allows users to select a switcher that aligns with their budget, operational needs, and future growth plans.
The MFS-2000 Series is equipped with a multitude of features, including 1 M/E configuration with 2 keyers and 2 DSKs, and 1.5 M/E configuration with 2 keyers and P/P transition with 2 DSKs. Each keyer offers linear key, luminance key, chroma key, and pattern key with edge and mask functions.
The switcher also provides stunning preset effect patterns, eliminating the need for complex programming. The unique FlexiPad control panel enables operations such as Macro, M/E, and Effect Snapshot to be stored and recalled with the touch of a button.
The switcher processor offers both serial and parallel tally outputs, with the option to add 36 programmable tally ports with the MKS-2700 Device Control Unit. For added security during live productions, both the control panel and the switcher processor can be fitted with redundant power supply units.
The MFS-2000 Series operates as a powerful live production tool, equipped with multiple peripheral interfaces. Its low power consumption and compact design make it an ideal choice for any situation where space is at a premium.
With the Sony Multi-Format Production Switcher, you can elevate your production quality and efficiency, making it a valuable addition to any professional video and audio production setup.
