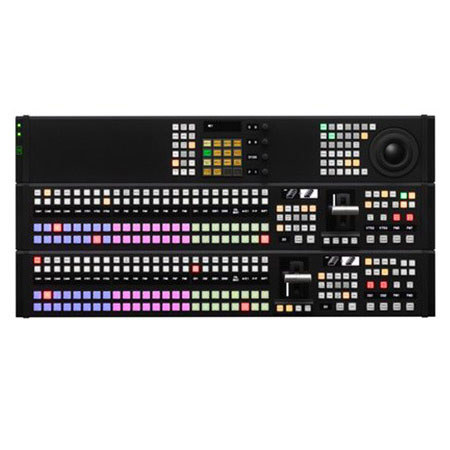

Sony MVS-3000APAC HD/SD Multi-format Switcher with Advanced New Control Panel

SKU: SOMS3000APAC MFR: MVS3000APAC
Earn VIP Reward Points

Key Features

  • Elevate your production with this Sony video switcher, offering 32 primary inputs.
  • Experience reliable connection with multi-format support, including 1080/59.94i and 720/50p.
  • Enjoy easy setup with the advanced control panel for seamless live streaming events.
  • Get good value with 2 channels of built-in DME using the optional MKS-6570 DME.
  • Ensure wide compatibility with multiple interfaces, including Ethernet and BNC connections.
  • Achieve high resolution video output with up to 2 SD video outputs via MKS-6550 option.
See More Product Details

Please Note

Financing Available: As low as 0% Financing for 12 months. For more info Please email us at sony@adorama.com
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony MVS-3000APAC Specifications

  • Built-in DME

    2 Channels with MKS-6570 DME Option

  • Editor 1 to 4

    D-sub 9-pin (x2), RS-422A

  • FM DATA

    RJ-45 (x1), 1000BASE-T

  • FM Device

    USB 2.0

  • GPI

    D-sub 25-pin (x4), TTL level inputs (x18), Open collector outputs (x48)

  • Network

    RJ-45 (x1), 1000BASE-T

  • Format (SD/HD)

    1080/59.94i, 1080/50i, 1080/23.978PsF, 720/59.94p, 720/50p, 480/59.94i, 576/50i

  • Frame Size

    2 M/E

  • Operating temperature

    41 deg. F to 104 deg. F (5 deg. C to 40 deg. C)

  • Power Consumption

    Fully loaded: AC 100 V to 240 V, +/-10%, 50/60 Hz4 A to 1.7 A

  • Inputs

    BNC (x2) 75 O with loop-through output
    HDTV systems: HD tri-level sync/SDTV analog sync/analog black burst
    SDTV systems: Analog black burst/analog sync

  • Assignable Output

    12 Assignable Outputs4 Selectable Outputs for Multiviewer, Format Converter, or Duplicate Outputs

  • Primary Inputs

    32 Primary Inputs

  • SD Video Outputs

    Up to 2 with the MKS-6550 Format Converter Option

  • Dimensions (W x H x D)

    32.32 x 4.72 x 15.59" (821 x 120 x 396mm)

  • Weight

    Fully loaded: Approx. 46.29lbs (Approx. 21 kg)

About Sony MVS-3000APAC

Where sophistication meets high-tech functionality, the MVS-3000APAC HD/SD Multi-format Switcher with Advanced New Control Panel by Sony stands as a testament to the brand's decade-long expertise in the industry. This advanced production switcher, a new addition to Sony's mid-range lineup, is a compact powerhouse designed to cater to the demanding needs of production studios, stadiums, houses of worship, and OB vehicles.

Inheriting the best features from the esteemed MVS Series, this multi-format switcher is equipped with two mix effects (M/Es), four keyers per M/E, each boasting the MVS high-performance chromakey. It also offers 2.5D resizers and color correction capabilities, ensuring top-notch video production quality.

The MVS-3000APAC is not just about power and performance, it's also about convenience. With its standard multi-viewer output, it eliminates the need for additional monitoring, thereby reducing your total system cost. Accommodating a high number of inputs (32 to 50) and outputs (16), it provides unparalleled flexibility in routing and switching multiple video sources, making it an ideal choice for large-scale video production and live events.

The product also features the ICP-3000 twenty-four button control panel, characterized by an elegant black design and OLED mnemonic displays for optimal visibility. This user-friendly and intuitive control panel is what makes the MVS-3000APAC a favorite among Sony users.

Housed in a self-contained 4RU processor, this switcher offers simple configuration and is a perfect fit for small production facilities with limited installation space. With the MVS-3000APAC HD/SD Multi-format Switcher, Sony delivers a compact yet powerful solution that refuses to compromise on quality, meeting and exceeding all your production requirements.

Sony MVS-3000APAC Features

  • New custom-designed operational control surface
  • Two mix effects (M/E) busses with four keyers per M/E
  • Range of background transition effects
  • Aux Mix Capability
  • 32 Inputs and 16 Outputs
  • Color correction for each input and AUX output
  • Internal eight-channels frame memory
  • Two channel multi viewer
  • Extensive memory system for saving and recalling
  • Intuitive menu operation supporting standard VGA monitor/mouse and commercially available VGA touch panel monitors
  • Redundant power supplies for processor and control panel

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Key Features

  • Elevate your production with this Sony video switcher, offering 32 primary inputs.
  • Experience reliable connection with multi-format support, including 1080/59.94i and 720/50p.
  • Enjoy easy setup with the advanced control panel for seamless live streaming events.
  • Get good value with 2 channels of built-in DME using the optional MKS-6570 DME.
  • Ensure wide compatibility with multiple interfaces, including Ethernet and BNC connections.
  • Achieve high resolution video output with up to 2 SD video outputs via MKS-6550 option.

What's in the box:

  • Sony MVS3000APAC HD/SD Multi-format Switcher with Advanced New Control Panel
  • ICP3000
  • Sony 1 Year Limited Warranty
