Review Summary
D-sub 9-pin (x2), RS-422A
RJ-45 (x1), 1000BASE-T
USB 2.0
D-sub 25-pin (x4), TTL level inputs (x18), Open collector outputs (x48)
RJ-45 (x1), 1000BASE-T
1080/59.94i, 1080/50i, 1080/23.978PsF, 720/59.94p, 720/50p, 480/59.94i, 576/50i
2 M/E
41 deg. F to 104 deg. F (5 deg. C to 40 deg. C)
AC 100 V to 240 V, +/-10%, 50/60 Hz
4 A to 1.7 A (fully loaded)
BNC (x2) 75 Ohms with loop-through output
HDTV systems: HD tri-level sync/SDTV analog sync/analog black burst
SDTV systems: Analog black burst/analog sync
12 Assignable Outputs
4 Selectable Outputs for Multiviewer, Format Converter, or Duplicate Outputs
32 Primary Inputs
Up to 2 with the MKS-6550 Format Converter Option
32.32 x 4.72 x 15.59" (821 x 120 x 396 mm)
Fully loaded: Approx. 46.29lbs (21kg)

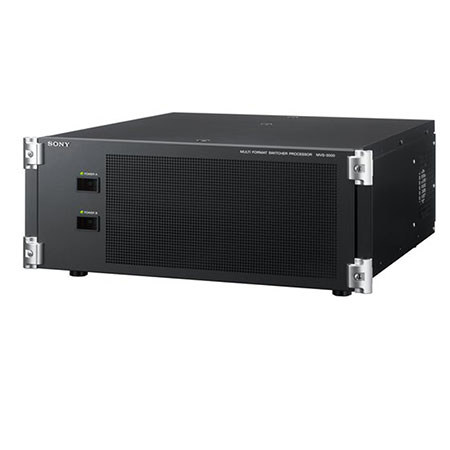

You can elevate your video production capabilities with the Sony MVS-3016APAC HD/SD Multi-format Switcher, a versatile and advanced solution designed to meet the demands of professional studios, live sports venues, houses of worship, and outside broadcast (OB) vehicles. This switcher is engineered to handle a high volume of inputs and outputs, accommodating up to 50 inputs and delivering 16 outputs, providing unparalleled flexibility and control over your video sources.
The MVS-3016APAC is not only affordable but also boasts high-definition support, ensuring that your productions are of the highest visual quality. Its multi-format capability allows seamless switching between various video signal types, both HD and SD, making it a future-proof investment for your production needs.
With two powerful mix effects (M/Es), each equipped with four keyers that include chroma key capabilities, you can create sophisticated visual effects and composites on the fly. The switcher also features advanced 2.5D resizers and comprehensive color correction tools, enabling you to fine-tune your video feeds for professional results.
The integrated standard multi-viewer output simplifies your setup by reducing the need for additional monitors, saving you both space and resources. The included ICP-3016 sixteen-button control panel, with its sleek black design and OLED mnemonic displays, offers exceptional visibility and ease of use, allowing for quick and efficient operation.
Housed in a compact 4RU processor, the MVS-3016APAC is designed for simplicity and convenience, making it an ideal choice for small production facilities with limited installation space. Its user-friendly interface and customizable settings ensure that you can adapt the switcher to your specific production requirements with ease.
Choose the Sony MVS-3016APAC for its advanced features, multi-format versatility, and the reliability of a trusted brand in electronics. This switcher stands out as a comprehensive solution for those who require professional-grade video switching and routing capabilities in a space-conscious and cost-effective package.
