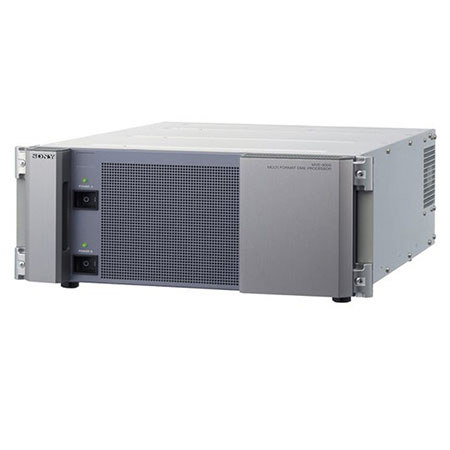

Sony High End Multi Format DME Processor for MVS-8000 Series Switcher

SKU: SOMVE9000 MFR: MVE9000
Earn VIP Reward Points

Key Features

  • Elevate broadcasts with this Sony multi format DME processor for MVS-8000 series.
  • Enjoy wide compatibility: supports 1080i/p & 720p HDTV formats for seamless integration.
  • Ensure reliable connection using multiple SDI inputs/outputs for high-quality video feeds.
  • Experience low latency switching for live events, crucial for a smooth on-air production.
  • Simplify setup with versatile LAN & remote control options, optimizing your workflow easily.
  • Achieve good value with a high resolution switcher processor designed for broadcast environments.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony High End Multi Format DME Processor for MVS-8000 Series Switcher Specifications

  • Supported Formats

    HDTV:
    1080i/50, 59.94, 60
    1080p/23.976, 24, 25, 29.97, 30
    720p/59.94
    SDTV:
    480i/59.94
    576i/50

  • Video Input / Output

    Using MKE-9020M (sold separately)
    2 x MVS interface MDR 68-pin
    (inputs/outputs: 2 x 2 CH), LVDS Using MKE-9021M (sold separately)
    Input: 8 x BNC-type connectors, SDI
    Output: 8 x BNC-type connectors, SDI

  • Video In

    4 x BNC-type connectors, SDI

  • Monitor Out

    4 x BNC-type connectors, SDI

  • Reference Input

    2 x BNC-type connectors, 75 Ohms with loop-through output
    Analog black burst or HD tri-level sync

  • LAN

    Control LAN: 1 x RJ-45, 100Base-TX
    Data LAN: 1 x RJ-45, 100Base-TX

  • Remote

    4 x D-SUB 9-pin, RS-422

  • GPI

    2 x D-SUB 25-pin
    16 x Dry contact or open collector
    8 x Relay contact outputs
    8 x Open collector outputs

  • Power Requirement

    100 to 240 V +/-10% 50/60 Hz

  • Power Consumption

    500 VA

  • Operating Temperature

    41 to 104deg. F (5 to 40deg. C)

  • Storage Temperature

    -4 to 140deg. F (-20 to 60deg. C)

  • Dimensions (W x H x D)

    19.00 x 7.75 x 20.50" (482.6 x 196.85 x 520.7mm)

  • Weight

    44.1lbs / 20kg (Approximately)

About Sony High End Multi Format DME Processor for MVS-8000 Series Switcher

Bring unparalleled precision and versatility to your live production and post-production workflows with the Sony High End Multi Format DME Processor, the MVE-9000. Engineered to complement the acclaimed Sony MVS-8000 Series switcher, this processor is a powerhouse for professionals demanding the highest picture quality and a comprehensive feature set for crafting breathtaking special effects.

The MVE-9000 stands out in the realm of video processing with its robust multi-format support, ensuring seamless integration with various video standards and resolutions. Whether you're working in HD, SD, or cinematic 4K, this DME processor adapts effortlessly, making it an indispensable tool for high-end production environments where quality and flexibility are paramount.

Experience the creative freedom offered by the MVE-9000's extensive array of visual effects and transitions. Its advanced processing capabilities enable the realization of complex on-screen imagery, from subtle enhancements to dramatic transformations, all executed with Sony's renowned precision.

Designed with the professional in mind, the Sony High End Multi Format DME Processor is not just about exceptional performance; it's also about reliability. Sony's legacy in the electronics industry is evident in the build and operation of the MVE-9000, ensuring that it delivers consistent, top-tier performance that industry professionals can rely on.

In summary, the MVE-9000 is the definitive choice for those who require a high-end, multi-format DME processor that excels in live environments and post-production settings alike. Its compatibility with the MVS-8000 Series switcher and its ability to handle a diverse range of video formats solidify its position as a key component in the creation of visually stunning content.

Sony High End Multi Format DME Processor for MVS-8000 Series Switcher Features

  • High-quality DME supports Input Freeze, Defocus, Key Border, Beveled Edge, Glow, Sketch, Metal, Mask, Light, Shadow, Trail and more
  • A variety of effects
  • 3D Linear/Nonlinear, Sparkle
  • Effect data compatible with MVE-8000
  • Excellent picture quality
  • Y/C/K 10-bit processing
  • Field/Frame-based processing filter
  • High-quality multi-point interpolation
  • Up to four channels can be configured on a channel basis using Advanced Effect Board MKE-9040M
  • Video interface board sets can be installed for Input/Output Board Set MKE-9021M SDI interfaces for standalone operations and MVS Interface Board Set MKE-9020M Dedicated connection to the MVS Series switcher
  • 4U high, less than 15 kg in weight and less than 500 W consumed when fully loaded with its option boards
  • Redundant power supply unit HK-PSU04 can be installed
  • GPI and Tally interface
  • Four RS-422 interfaces for control from external editor
  • Each channel can be independently controlled
  • 100Base-TX network interface Allows the transfer of files (image, effect, setup, etc.) between equipment connected to the MVS/DVS Data LAN and Real time control via the MVS/DVS Control LAN

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.
