Sony SD/Multi-Format Video Switching
High-Definition: 1080i/59.54, 50
720p/59.54, 50
Standard-definition: 480i/59.54
576i/50
Max. 49, BNC x 1 each
SMPTE292M (HDTV), SMPTE259M-C (SDTV)
24
OUT 1, 2, 13 to 16: BNC x 2 each
OUT 3 to 12, 17 to 24, FC1, 2: BNC x 1 each
SMPTE292M (HDTV), SMPTE259M-C (SDTV)
Max. 8, BNC x 2 each
SMPTE292M (HDTV), SMPTE259M-C (SDTV)
BNC x 2, 75 Ohms with loop-through output
HDTV systems: HD tri-level sync/SDTV analog sync/Analog black burst
SDTV systems: Analog black burst/analog sync
RJ-45 x 1, 100BASE-TX
RJ-45 x 1, 100BASE-TX
D-sub 9-pin, RS-422A
D-sub 25-pin, TTL level inputs x 8, relay contact outputs x4, open collector outputs x4
RJ-45 x 1, 100BASE-TX
Complies with IEEE 1394
AC100V to 240V +/-10% 50/60Hz
7 to 3A
5 to 40 deg. C / 41 to 104deg. F
-20 to +55 deg. C / -4 to 131
10 to 90 % (Non-condensing)
19 x 7 x 20.5" / 482.6 x 177.8 x 520.7mm (4RU)
25.99lbs / 25.99kg (fully Loaded)

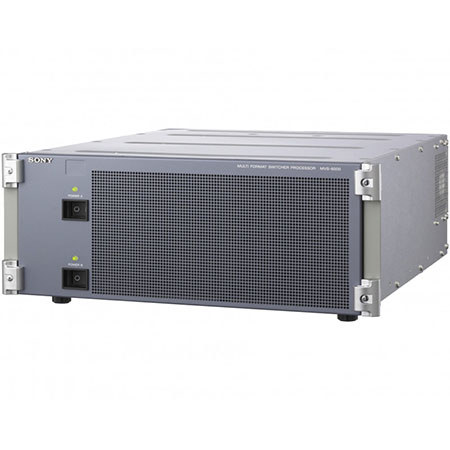

Just when you thought video production couldn't get any more advanced, the MVS6000 Multi-Format Production Switcher Processor steps in to redefine the game. This state-of-the-art device from Sony, a leader in the electronics industry, is designed to handle SD and multi-format video switching with ease and precision.
This innovative switcher processor is a versatile addition to any professional video production environment, including television studios, post-production facilities, and live event production. It's capable of accommodating production needs starting from 15 inputs / 24 outputs 1ME (Mix Effect Bus) up to 49 inputs / 24 outputs and 2.5ME, making it a powerful tool for a wide range of applications.
The MVS6000 is a proud member of the MVS-8000 & DVS-9000 switcher family, boasting the latest technologies such as a newly developed image processor, internal digital multi-effects (DME), clip transition effects, Side Flags, and an internal format converter. All these features are packed into a compact frame that's easy to integrate into your existing setup.
One of the standout features of the MVS6000 is its upgradeability. It can be easily upgraded to multi-format configurations by a license key, allowing users to start with a standard-definition (SD) configuration and upgrade to multi-format configurations as their needs evolve.
The device comes with the all-new CCP-6000 Series control panel, which can be operated in combination with a standard VGA monitor and a mouse, greatly expanding operational flexibility. The CCP-6000 also includes the newly developed Multi-Function FlexiPad module that further saves space while meeting operational requirements.
The MVS6000 also offers a built-in format converter, customizable control panel, creative M/E functionality, color correction function, resizer function, enhanced frame memory system, programmable macros, and clip transition effects. These features make the MVS6000 a comprehensive solution for all your video switching needs.
In summary, the MVS6000 Multi-Format Production Switcher Processor is a sophisticated, high-tech tool that brings advanced video switching capabilities to your fingertips. It's not just a device; it's a game-changer in the world of professional video production.
