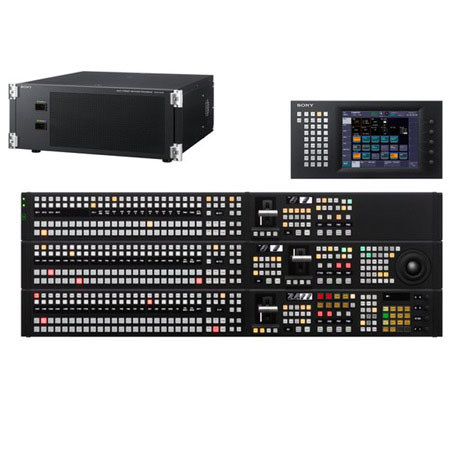

Sony MVS-6530PAC 3 M/E HD/SD Multi-format Switcher with Advanced New Control Panel

Take your video production to the next level with the Sony MVS-6530PAC 3 M/E HD/SD Multi-format Switcher, a state-of-the-art piece of equipment that combines sophistication and high-tech functionality. Available in both 3 and 2 M/E configurations, this advanced switcher is designed to meet the needs of diverse production scales, from 32 inputs/16 outputs 2ME (MVS-6520) to a robust 48 inputs/32 outputs 3ME (MVS-6530).

The MVS-6530PAC is equipped with high-performance keyers, boasting chroma-key functionality and resizers for precise color correction. It features up to 16 keyers, allowing for intricate layering from each M/E. Each keyer operates with its own auto-transition controls, separate from the main fader. This enables users to insert or remove keys individually, with independent wipes, DME wipes, and dissolves for maximum flexibility.

In addition to chroma-keying, each keyer in every M/E offers color vector keying, removing any restrictions on selectable key types. This feature enhances the interoperability of effects across all M/Es. The resizer function supports simple 2.5D DME effects through 8 out of 16 keyers of the MVS-6530 and 4 out of 8 keyers of the MVS-6520. You can apply a variety of effects, such as Mosaic and Defocus, to resized images without the need for an external DME, simplifying operation and reducing system costs.

The MVS-6530PAC switcher also includes a two-channel multi-viewer output, offering a choice of 10- or 4-way split display. This feature saves space on additional monitoring and facilitates an easier setup, ultimately reducing overall costs. The switcher also boasts an AUX transition capability, allowing users to mix transitions using AUX output.

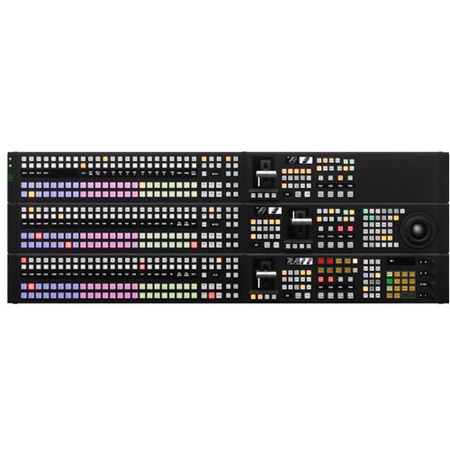

The innovative design of the MVS-6530PAC extends to its control panel. The newly designed ICP-6530/6520 control panels include color cross-point patterns, ideal for grouping, and high-visibility OLED source-name displays. These features help operators stay informed at all times about cross-point, button assignments, and source type group.

In summary, the Sony MVS-6530PAC 3 M/E HD/SD Multi-format Switcher is a versatile, high-tech solution for your video production needs, offering advanced features and a user-friendly interface for efficient operation.
