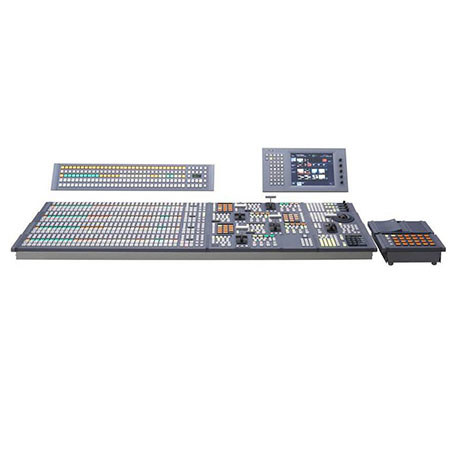

Sony MVS7000X Multi Format Production Switcher Processor

SKU: SOMVS7000X MFR: MVS7000X
Earn VIP Reward Points

Key Features

  • Experience seamless switching with the Sony MVS7000X multi-format production switcher.
  • Enjoy reliable connections with multiple BNC, USB, and Ethernet interfaces on this video switcher.
  • Easily manage up to 80 primary inputs, perfect for complex live video productions.
  • Get high-quality output with 48 assignable outputs, including DME and format converters.
  • This Sony video switcher supports multi-format SD/HD, ensuring wide compatibility.
  • Achieve low latency video switching for broadcast, streaming, and studio applications.
See More Product Details

Please Note

Financing Available: As low as 0% Financing for 12 months. For more info Please email us at sony@adorama.com
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony MVS-7000X Specifications

  • Data LAN

    RJ-45 x 1
    100BASE-TX

  • FM DATA

    RJ-45 x 1
    100BASE-TX

  • FM Device

    USB-type A (x2), USB 2.0

  • GPI

    D-sub 25-pin
    TTL level inputs x 8
    Relay contact outputs x 4
    Open collector outputs x 4

  • Network

    RJ-45 x 1
    100BASE-TX

  • Remote Control

    D-sub 9-pin
    RS-422A

  • Format (SD/HD)

    Multi Format, SMPTE424M/SMPTE292M/SMPTE259M-C

  • Frame Size

    1ME to 3ME

  • Operating Humidity

    10% to 90% (Non-condensing)

  • Operating temperature

    41 deg. F to 104 deg. F (5 deg. C to 40 deg. C)

  • Power Consumption

    15 to 6.5 A

  • Storage Temperature

    -4 deg. F to +140 deg. F (-20 deg. C to +60 deg. C)

  • Inputs

    BNC x 2
    75 Ohms with loop-through output
    HDTV systems: HD tri-level sync/SDTV analog sync
    SDTV systems: Analog black burst/analog sync

  • Assignable Output

    48 for Outputs
    4 for Duplicate outputs for OUT23/24/47/48
    20 for DME, 4 for Format Converter
    4 for Multi Viewer (2CH x 2)

  • Primary Inputs

    80 for Primary inputs
    20 for DME
    SMPTE424M/SMPTE292M/SMPTE259M-C

  • Dimensions (W x H x D)

    440 x 355 x 497mm (17.32 x 13.97 x 19.56")

  • Weight

    Fully loaded: 108.02lbs (49kg)

About Sony MVS-7000X

Are you looking to elevate your professional video production or live event switching capabilities The Sony MVS-7000X Multi Format Production Switcher Processor is a sophisticated and advanced piece of high-tech equipment that stands out in the realm of professional broadcast and production switchers. Inheriting powerful features from the acclaimed MVS-8000X, this switcher is a versatile and innovative solution for any production environment.

The MVS-7000X offers unparalleled flexibility, starting as a standard-definition (SD) unit that can seamlessly transition to an SD/HD multi-format configuration with the addition of optional software. This upgradeability ensures that your investment is future-proof, allowing you to start with SD and move to HD as your production needs evolve.

With its robust Mix/Effect mode selection feature, the MVS-7000X can be tailored to meet specific user requirements, minimizing the need for additional mix/effect boards. This customization is not only cost-effective but also ensures that you have the exact tools you need for your production without any unnecessary extras.

For those seeking to add a creative flair to their content, optional DME boards can be installed to unlock visual effects of superb quality, on par with those of the MVE-9000. These effects include Spot Lighting and Texture Lighting, enriching your production without the need for external devices.

The MVS-7000X is not just about flexibility and customization; it also excels in delivering exceptional picture quality. It supports 1080p/59.94/50 production when paired with the BZS-7560x Switcher Upgrade Software, allowing you to harness the full potential of HD production. Features such as sophisticated transitions and a powerful keyer elevate the production value of your content.

Moreover, this switcher is designed with the future in mind, supporting excellent stereoscopic 3D production for immersive viewing experiences. It handles dual-link signals as a single source, streamlining the workflow and eliminating the need for specific settings for each link.

The Sony MVS-7000X is a professional-grade switcher that offers a high level of input and output compatibility, with 51 and up inputs and 19 and up outputs, ensuring that it can integrate seamlessly into a wide range of setups. As a product of Sony, a leader in the industry, you can trust in the MVS-7000X's quality and reliability.

Choose the Sony MVS-7000X Multi Format Production Switcher Processor for a professional, high-quality, and innovative solution that will take your video production and live event switching to the next level.

Sony MVS-7000X Features

  • Flex Config of M/Es for 1, 2, or 3 M/E with up to 8 Keyers per M/E (1080i/720P or SD Mode)
  • Multi Program 2 support can double the number of Mix Effect banks
  • Internal DME option for 2 or 4 channels of Digital Effects
  • 80 Inputs and 48 Outputs
  • Source Patching
  • Internal 2.5D Resizers
  • 16 Frame Memory Outputs
  • Simplified 3D Utility
  • System Solution with 3 D Box and CG Effecter
  • 8 Channel Input and 4 Channel Output Format Converter
  • Aux Mix Capability

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Key Features

  • Experience seamless switching with the Sony MVS7000X multi-format production switcher.
  • Enjoy reliable connections with multiple BNC, USB, and Ethernet interfaces on this video switcher.
  • Easily manage up to 80 primary inputs, perfect for complex live video productions.
  • Get high-quality output with 48 assignable outputs, including DME and format converters.
  • This Sony video switcher supports multi-format SD/HD, ensuring wide compatibility.
  • Achieve low latency video switching for broadcast, streaming, and studio applications.

What's in the box:

  • Sony MVS7000X Multi Format Production Switcher Processor
  • 75 Ohms terminator
  • Operation Manual
  • Installation Manual
  • Sony 2 Year Parts & Labor Limited Warranty
