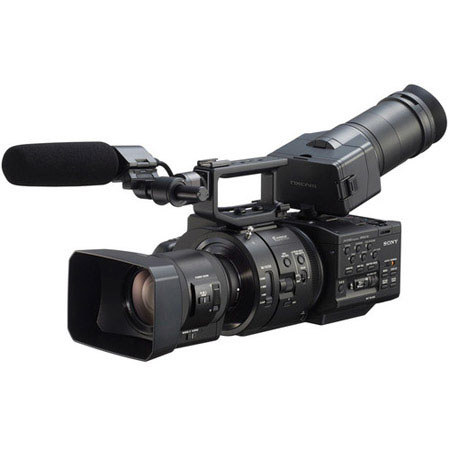

Sony NEX-FS700RH 4K Sensor High Speed RAW NXCAM Super35 Camcorder with 18-200mm Power Zoom Lens, 8.3MP HD, 3.5" LCD Screen, 2 XLR/HDMI & 3G/HD-SDI

SKU: SONEXFS700RH

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2017-10-04T08:58:10

Rated 5 out of 5

Wide DR, high resolution, great controls

If you rig this with an Atomos Inferno, you have a great high frame rate 4K shooter. Wide DR, high resolution, great controls - ready for HDR too.

MARK R.

2017-09-28T10:09:02

Rated 4 out of 5

Still Reviewing

I purchased the Sony NEX-FS700 R for a few reasons: • S&Q motion capabilities • Price • Upgrading from a Sony A7 • Additional inputs for sound mix • More options for setting within camera The picture is much clearer and the options in menu give a much broader range of settings and control in field. I am using an Atomos Ninja Blade for external recording for a 10 BIT ProRes 4.2.2 capture. The S&Q motion capabilities was probably one of the strongest selling points for me on this particular Sony unit.

Michael O.

2017-09-10T16:48:28

Rated 5 out of 5

End of life, but still competitive camera

It's remarkable that this camera first came out back in 2012 and has not only sold for this long, but remains competitive. The FS700R shoots good quality 1080P footage including slow and quick motion frame rates ranging from 1fps to 240 fps. At reduced resolutions it can do 480 and 960fps making it the slow motion king for all those without deep pockets. With the addition of an external recorder such as the Odyssey 7Q+ or Shogun Inferno you can add to that continuous 2K 120/240fps and continuous 4K at 60fps. It can even do 4K at 120fps in 4 sec burs!. With built-in ND and XLR and a host of lenses that can be used the old workhorse offers tremendous bang for the buck. It's basically a box with buttons all over it which is both good and bad. It's bad if you want to shoulder use it and will require significant rigging. But otherwise the design works fine. I hand hold it often. The fact that it uses the old Sony NP-F style batteries is really convenient since just about anyone in the business for a few years already has some. Now that it's discontinued and marked down I made the decision to buy a second one and let them carry me until I finally have to go to 6K or 8K. Since most deliverables are still in HD these days I hope the FS700R can serve me for several more years to come.

James C.

2017-08-02T10:25:37

Rated 5 out of 5

Great

I love my Sony fs700rh I now have two and will soon be purchasing a third one. Thanks Adorama.

ERIK H.

2017-05-03T19:40:38

Rated 5 out of 5

Aging camera but still competitive

I bought the FS700R several years after the FS700 introduction, mainly due to the BIG price drop and the fact that despite being an older camera it can still hold it's own amidst newer arrivals. The super 35 sensor gives just the right amount of DOF, the E-mount lenses are affordable and relatively light. The slow motion capabilities are still the best for this price point. The ergonomics aren't good but I knew that going in. Basically it works fine on a tripod or OK handheld as long as you don't want to shoulder hold it which then requires a rig. The menus and controls are familiar Sony so it helps when using it with other Sony cameras such as EA50 or FS100. I've been happy with the internal AVCHD codec but if you do a lot of heavy post-color work you will probably want to pair it with an external recorder. Many people get the Odyssey 7Q+ for greatly expanded capabilities. I just bought an Atomos Shogun Inferno to allow 4K recording and higher bit-rate slow motion. Hopefully with this latest addition the FS700R will serve me for many more years to come. I may buy a second one if the price drops even more when it becomes discontinued.

James C.

2016-09-02T06:19:13

Rated 5 out of 5

Great Studio Camera

I'm not crazy about the HD footage, but when you can pull out 4k this little camera shines! The kit video lens has butter smooth auto focus and the face tracking feature keeps run and gun shooters (like myself) runnning and gunning not tinkering with follow focus. Great buy as long as you can swing the additional ($) for the Q7 4k recorder. You are going to have to get a monitor anyway, might as well grab the Q7.

Barry C.

Sony NEX-FS700R Specifications

  • AVCHD Recording Modes

    HD-FH: Yes
    HD-FX: Yes
    HD-HQ: Yes
    HD-LP: Yes
    PS: Yes, 1920x1080 60P (59.97P)

  • Audio Recording Modes

    16-bit 48KHz LPCM or Dolby Digital Stereo 48KHz

  • Imaging Device

    Exmor Super35 CMOS Sensor

  • LCD Screen

    3.5 inch-type, XtraFine LCD, approx. 921,600 dots(1920 x 480), 16:9 aspect

  • Microphone

    ECM-XM1 Shotgun type monaural mic.

  • Optics/Lens Type

    Sony E-Mount, interchangeable lens system

  • Video Signal

    NTSC color, EIA standards HDTV 1080/60i, 1080/60p, 720/60p specification
    PAL color, CCIR standards HDTV 1080/50i, 1080/50p, 720/50p specification

  • Built-in Optical Filters

    CLEAR
    1/4 = ND 0.6 (2 stops)
    1/16 = ND 1.2 (4 stops)
    1/64 = ND 1.8 (6 stops)

  • Effective Picture Elements

    HD = 8.3 Megapixels; Still (16x9) = 8.4 Megapixels; Still (3:2) = 7.1 Megapixels

  • Gain Selection

    0dB
    3dB
    6dB
    9dB
    12dB
    15dB
    18dB
    21dB
    24dB
    27dB
    30dB

  • Minimum Illumination

    1.2 lx (lux) with Shutter Speed 1/24 auto gain control, auto iris (when selecting [60i])
    1.5 lx (lux) with Shutter Speed 1/25, auto gain control, auto iris (when selecting [50i])

  • Optical System

    Single Super35mm size sensor

  • Pickup Device

    "Exmor" Super35 CMOS Sensor

  • Shutter Speed (Time)

    Auto: 1/60-1/2000, 30p: 1/30-1/2000, 24p: 1/48-1/2400 Manual: 60i/30p/60p: 1/3 - 1/10000, 24p: 1/3 - 1/10000

  • Slow & Quick Motion Function

    60Hz System:
    REC. Frame rates: 1080/60p, 1080/30p, 1080/24p
    Camera capture: 960fps, 480fps, 240fps, 120fps, 60fps, 30fps, 15fps, 8fps, 4fps, 2fps, 1fps
    50Hz System:
    REC. Frame rates: 1080/50p, 1080/25p
    Camera capture: 800fps, 400fps, 200fps, 100fps, 50fps, 25fps, 12fps, 6fps, 3fps, 2fps, 1fps

  • Recording Frame Rate NTSC Mode-1

    2K 12-bit RAW 2048x1920 up to 240fps (to external recorder)
    4K 12-bit RAW 4096x2048 up to 60fps (to external recorder)
    -
    1080 progressive
    HD PS (28Mbps) 1920x1080 60p,
    HD FX (24Mbps) 1920x1080 30p
    HD FH (17Mbps) 1920x1080 30p,
    HD FX (24Mbps) 1920x1080 24p,
    HD FH (17Mbps),1920x1080 24p,
    -
    1080 interlaced
    HD FX (24Mbps) 1920x1080 60i,
    HD FH (17Mbps) 1920x1080 60i,
    HD HQ (9Mbps) 1440x1080 60i,
    HD LP (5Mbps) 1440x1080 60i,

  • Recording Frame Rate NTSC Mode-2

    720 progressive
    HD FX (24Mbps), 1280x720 60p,
    HD FH (17Mbps) 1280x720 60p
    -
    Standard Definition (NTSC)
    SD HQ (9Mbps) 720x480/60i (30p Scan)
    SD HQ (9Mbps), 720x480/60i (24p Scan)

  • Recording Frame Rate PAL Mode

    1080 progressive
    HD PS (28Mbps) 1920x1080 50p,
    HD FX (24Mbps) 1920x1080 25p
    HD FH (17Mbps),1920x1080 25p
    -
    1080 interlaced
    HD FX (24Mbps) 1920x1080 50i,
    HD FH (17Mbps) 1920x1080 50i,
    HD HQ (9Mbps) 1440x1080 50i,
    HD LP (5Mbps) 1440x1080 50i,
    -
    720 Progressive
    HD FX (24Mbps), 1280x720 50p
    HD FH (17Mbps), 1280x720 50p
    -
    Standard Definition (PAL)
    SD HQ (9Mbps) 720x576/50i (25p Scan)
    SD HQ (9Mbps), 720x576/50i (25p Scan)

  • Recording Media

    HXR-FMU128 optional 128GB Memory Module
    SD/SDHC/SDXC Memory Card
    Memory Stick PRO Duo Mark2
    Memory Stick PRO-HG Duo
    Memory Stick PRO-HG Duo HX

  • Recording/Playback Time

    170 min (2h 50m) with 32GB Memory Stick PRO-HG Duo HX at FX(24Mbps) Linear PCM 2ch recording

  • Storage Temperature

    4 to +140 degrees F (-20 to +60 degrees C)

  • Video Recording Format

    HD: HD MPEG-4 AVCHD format compatible +1080/60p original format)
    SD: MPEG-2 PS (Same as DVD)

  • Audio In

    XLR 3-pin (female) (x 2), LINE/MIC/MIC with selectable attenuation and +48V phantom power

  • Audio Out

    2 RCA L&R

  • Component Out

    HDMI 1.4
    RCA Type (x 3) via Mini-D jack

  • Composite Video Out

    RCA Type (x 1)

  • Digital Audio/Video Output(s)

    3G SDI OUT with embedded audio plus HDMI 1.4

  • Earphone

    3.5mm Stereo

  • Lens Connector

    E-Mount Hot Shoe

  • MIC In

    Two 3-Pin XLR with selectable attenuation and phantom power

  • Remote

    YES

  • SDI In

    LANC type 2.5mm

  • SDI Out

    3G HDSDI BNC

  • TC Out

    HDMI 1.4/ 3G HDSDI (embedded SMPTE TC Out)

  • Test Out

    Via HDMI 1.4

  • USB

    mini-AB/Hi-Speed (x 1)

  • Lens Mount

    Sony E-Mount

  • Continuous Operating Time

    Approx. 510 min (NP-F970: fully charged battery)

  • Lens: Focal Length

    18 - 200 mm
    Comparable 35mm Focal Length: 27-300 mm

  • Lens: Aperture

    Maximum: f/3.5 - 6.3
    Minimum: f/22 - 40

  • Lens: Minimum Focus Distance

    1' (.30 m)

  • Lens: Magnification

    0.35x

  • Lens: Groups/Elements

    12/17

  • Lens: Diaphragm Blades

    7

  • Lens: Image Stabilization

    Yes

  • Lens: Autofocus

    Yes

  • Lens: Tripod Collar

    No

  • Lens: Filter Thread

    Front: 67 mm

  • Operating Temperature

    +32 to +104 degrees F (0 to +40 degrees (C)

  • Power Consumption

    5.6W (w/ supplied lens) 6.7W with HXR-FMU128

  • Power Requirements

    AC adaptor / Battery) 8.4V / 7.2V

  • Dimensions (W x H x D)

    Body only: 5 x 4 x 7.62" (127 x 101.6 x 193.5 mm)
    Lens: 3.67 x 3.90" (93.2 x 99 mm)

  • Mass

    Body only: 3.25 lbs / 1.47 kg
    Lens: 22.89 oz (649 g)

  • UPC Code

    027242875388

20 Accessories for Sony NEX-FS700RH 4K Sensor High Speed RAW NXCAM Super35 Camcorder with 18-200mm Power Zoom Lens, 8.3MP HD, 3.5" LCD Screen, 2 XLR/HDMI & 3G/HD-SDI

  • All Accessories (20)
  • Lenses (5)
  • Batteries & Power Supply (3)
  • Cables & Adapters (1)
  • Bags & Cases (5)
  • Headphones (1)
  • Microphones & Audio (3)
  • Tripods (1)
  • Rain Covers (1)

About Sony NEX-FS700R

FEATURED REVIEWS

Aging camera but still competitive

By James C.

I bought the FS700R several years after the FS700 introduction, mainly due to the BIG price drop and the fact that despite being an older camera it can still hold it's own amidst newer arrivals. The super 35 sensor gives just the right amount of DOF, the E-mount lenses are affordable and relatively light. The slow motion capabilities are still the best for this price point. The ergonomics aren't good but I knew that going in. Basically it works fine on a tripod or OK handheld as long as ...

View full Review

Great Studio Camera

By Barry C.

I'm not crazy about the HD footage, but when you can pull out 4k this little camera shines! The kit video lens has butter smooth auto focus and the face tracking feature keeps run and gun shooters (like myself) runnning and gunning not tinkering with follow focus. Great buy as long as you can swing the additional ($) for the Q7 4k recorder. You are going to have to get a monitor anyway, might as well grab the Q7.

The Sony NEX-FS700RH 4K Sensor High Speed NXCAM Super35 Camcorder with 18-200mm Power Zoom Lens enables 4K/2K 12-bit RAW output, S-Log recording capabilities and features a Sony 18-200mm f/3.5-6.3 PZ OSS E-mount lens. The NEX-FS700RH retains all the features of the NEX-FS700U, including the native 4K sensor, Super Slow Motion recording, built-in ND filters and CineGamma curves. 4K/2K RAW is recorded to the Sony AXS-R5 Recorder via the HXR-IFR5 Interface Unit, or to compatible third party recorders such as Convergent Design's Odyssey 7Q via the 3G/HD-SDI output. The HXR-IFR5 Interface Unit and external recorders are sold separately.

The Super 35mm sized sensor matches that of standard film and digital cinema cameras. It accepts interchangeable E-mount lenses, as well as a variety of 35mm SLR and DSLR lenses and professional cinema lenses with the use of optional third party adapters. On-board, the NEX-FS700RH shoots full 1080p video in a range of frame rates up to 60p, with bursts of up to 240 fps in full HD resolution and 960fps at lower resolutions. When used with the HXR-IFR5 Interface Unit and AXS-R5 Recorder, you can record continuous 2K RAW at up to 240fps and 4K RAW at up to 60fps. 120fps 4K RAW recording is possible in 4 second bursts. This makes the NEX-FS700RH a high-speed, 4K camera ready for professional shoots such as indie films, commercials, corporate videos and music videos.

You have the option of recording AVCHD footage onto SD cards, Memory StickDuo, or the HXR-FMU128 Flash Memory Unit via the FMU port. It can also output 4:2:2 uncompressed HD video via HDMI 1.4 or 3G/HD-SDI to an external recording unit. For enhanced exposure latitude, CineGamma curves, including S-Log and 800% 709 gamma curves are available. Other features include an ISO range of 320 to 64,000, a shotgun microphone with mount/carrying handle, dual XLR inputs for recording uncompressed, professional-level sound, a 3.5" LCD panel with detachable with viewfinder attachment and built-in ND filters.

The included Sony 18-200mm f/3.5-6.3 E-mount lens features an 11x zoom with a 35mm equivalent focal length of 27-300mm. It has a quiet AF motor and Optical Steady Shot image stabilization and a three-step, motorized Adjustable Zoom Speed control. In addition to three variable zoom speeds, the lens supports constant speed zooming for slow, smooth zoom. Zoom can be controlled from the zoom lever on the NEX-FS700RH and by the standard control on the lens barrel.

Sony NEX-FS700R Features

  • 4K Exmor Super35 CMOS Sensor (total 11.6 million pixels)
  • E-Mount Interchangeable Lens System, compatible with Sony Alpha, Canon EF and a vast array of 35mm lenses with simple inexpensive adapters
  • Integrates perfectly with Sony's SEL-P18200 servo zoom lens
  • Full HD Slow Motion up to 240 fps
  • Continuous 2K RAW recording: up to 240fps and 4K RAW up to 60fps. RAW recording requires the optional HXR-IFR5 & AXS-R5 RAW or a compatible 3rd party recording system
  • 120fps 4K RAW capture to 4 second buffer, yields 20 second playback at 24p
  • 3G HD-SDI output
  • Four ND Filters: Clear; 2, 4 and 6 Stops
  • 60/50Hz switchable
  • Intuitive user interface

Key Features

  • Full HD Slow Motion up to 240 fps
  • Continuous 2K RAW recording
  • 3G HD-SDI output
  • Four ND Filters
  • 60/50Hz switchable
  • Intuitive user interface

What's in the box:

  • Sony NEX-FS700RH 4K Sensor High Speed NXCAM Super35 Camcorder
  • NP-F770 Info-Lithium Battery Pack
  • Adapter/Charger
  • Microphone
  • Remote Control
  • Connector Cord
  • Viewfinder Tube
  • Large Eyecup
  • Sony 1 Year Warranty
  • 18-200mm f/3.5-6.3 PZ OSS Alpha Lens
  • Front Lens Cap
  • Rear Lens Cap
