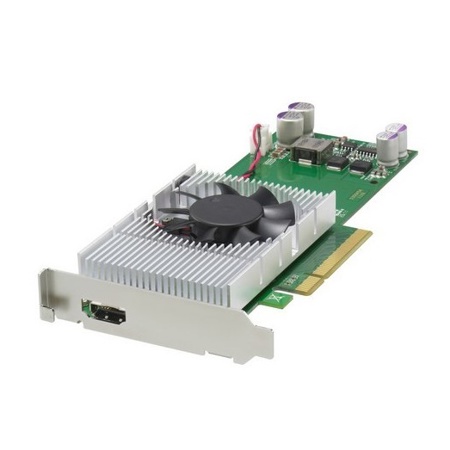

Sony NSBK-DH05 Decoder/Display Accelerator Board for NSR-500 Network Surveillance Recording Servers, 1x HDMI/VGA
SKU: SONSBKDH05
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Sony NSBK-DH05
• Maximum Decoding Resolution Up to 1,920 x 1,080
• Video Decoding Format 5 H.264/MPEG-4
• Monitor Output (Display Resolution) 1,920 x 1,200 (not supported by HDMI);1,920 x 1,080;1,360 x 768; 1,600 x 1,200;1,280 x 1,024;1,024 x 768
• Display Frame Rate Max. 60 fps (30 fps x 2 channels) at 1,920 x 1,080 at 4 Mbps Max. 60 fps (15 fps x 4 channels) at 1,920 x 1,080 at 4 Mbps Max. 120 fps (30 fps x 4 channels) at 1,280 x 720 at 2 Mbps Max. 135 fps (15 fps x 9 channels) at 1,280 x 720 at 2 Mbps Max. 270 fps (30 fps x 9 channels) at 720 x 480/576 at 1 Mbps Max. 240 fps (15 fps x 16 channels) at 720 x 480/576 at 1 Mbps
• Monitor Output 6 HDMI (x1), analog RGB (D-sub 15-pin) (x1)
• Audio Output 1 channel (HDMI)
This product is a display accelerator board for the Sony NSR-500 Network series Network Surveillance Server. When installed in a slot on the main unit, this board enables enhanced video playback
Supported models and versions
NSR-500 series V.1.5 or later
