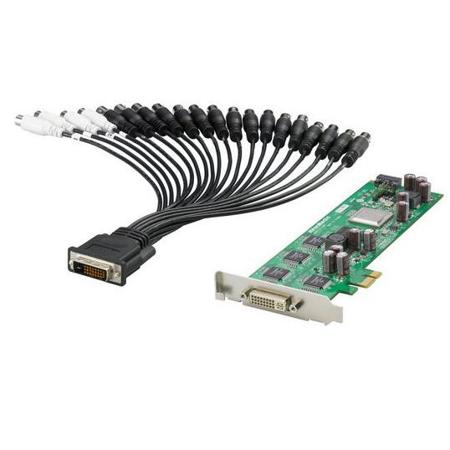

Sony NSBK-EB05 Analog Encoder Board
See all Sony items

Sony NSBK-EB05 Analog Encoder Board for NSR500 Network Surveillance Recording Servers

SKU: SONSBKEB05

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony NSBK-EB05 Specifications

  • Compatibility

    NSR500 Network Surveillance Recording Servers

  • Video/Audio: Number of analog input

    16x Video input (black, V1 to V16)
    4x Audio input (white, A1 to A4)

  • Input video format

    NTSC

  • Video codec

    H.264/JPEG

  • Video/Audio: Motion detection

    Yes

  • Video/Audio: Noise reduction

    Yes

  • Video Resolution

    NTSC: 720 x 480, 720 x 240, 704 x 480, 704 x 240, 352 x 240

  • Video/Audio: Maximum frame rate

    NTSC: 30fps/camera (total 480fps)

  • Video quality

    Bitrate: 64Kbps to 2Mbps (H.264)
    Quality: Low, Medium, High, Highest (JPEG)

  • Audio codec

    G.711, 64Kbps

  • Interface: Input Connector

    Video input connector (cable): 16x BNC (black)
    Audio input connector (cable): 4x RCA (white)

  • Operating temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Operating humidity

    20 to 80%

  • Dimensions (W x H)

    Board: Approx. 7.56 x 2.72" / 192 x 69mm (exclusive projections)

  • Weight

    Board: Approx. 3.5oz / 99.22g
    Cable: 8.5oz / 240.97g

About Sony NSBK-EB05

• Analog encoder board for NSR-500
• 16CH camera input and 4Ch audio input

This product is an analog encoder board for the Sony NSR-500 series Network Surveillance Server. When installed in a slot on the main unit, this board enables the connection of analog cameras.

Supported models and versions
NSR-500 series V.1.5 or later

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony NSBK-EB05 Analog Encoder Board
  • 1x Analog Camera Input Cable
  • Installation Manual
  • Sony 1 Year Labor Warranty
