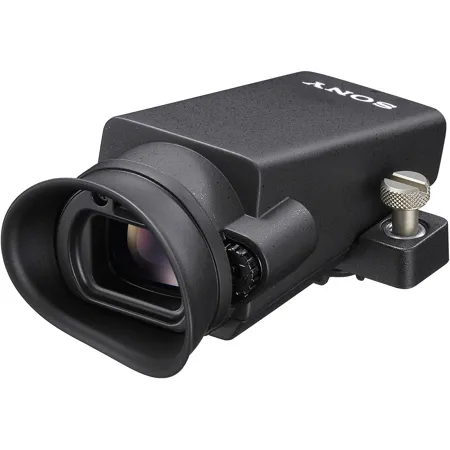

Sony DVF-EL1 OLED Electronic Viewfinder for FX5 Camera

The detachable tilt-type OLED Viewfinder DVF-EL1 enables accurate confirmation of focus and exposure, even in bright outdoor environments, supporting immersive image creation.

High-resolution, wide color gamut panel
By attaching the detachable tilt-type OLED Viewfinder, composition, focus and exposure can be accurately confirmed. The 0.58-type OLED panel features approx. 7.07 million dots, a wide color gamut equivalent to DCI-P3, 10-bit display support, and HDR monitoring, reproducing fine details and rich colors with clarity.

Two magnification display modes
With support for up to 0.90 x magnification, the display can be switched to suit shooting styles. The "VF Magnification" setting lets you choose between "Standard" and "Zoom Out", from resolution priority to enhanced visibility. It adapts to a wide range of shooting scenarios, including low- and high-angle shooting.

Vertical tilt mechanism for easy shooting
The vertical tilt mechanism allows adjustment from 0 Degree up to approximately 90 Degree upwards. The eyepiece cup is detachable and can be reversed from left to right, offering flexibility for various shooting styles. Removing the eyepiece cup allows the eye to be positioned closer to the eyepoint, ensuring comfortable viewing even when wearing glasses.

Integrated storage for VF terminal cap
The camera's VF terminal protective cap can be stored inside the OLED Viewfinder body when removed. This design helps prevent loss and enables efficient handling.

Note: The OLED Viewfinder cannot be used simultaneously with the Multi Interface (MI) Shoe.
