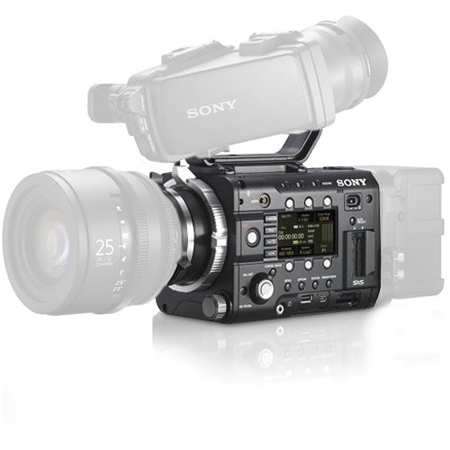

Sony PMW-F55KAEL F55 Camera Kit with OLED Viewfinder, Codec Board, Hard Case and Catalyst Prepare

PMWF55 Camcorder
Sony 4K sensor for gorgeous, super-sampled HD, 2K and 4K The PMW-F55 CineAlta camera shoots spectacular images with its 8.9 megapixels (effective) Sony 4K image sensor. You get superb dynamic range, the widest color gamut and pristine image quality, whether you shoot in HD, 2K or 4K. Multiple recording formats includes HD/2K/4K on SXS memory and 16-bit RAW 2K/4K on AXSM media Multiple recording formats include MPEG-2 HD422, MPEG4 SStP, XAVC 2K/HD, XAVC QFHD/4K and 16-bit RAW 2K/4K. You can have simultaneous recording on internal high-speed SXS PRO+ memory cards and RAW 2K/4K recording on sleek AXSM memory cards using the optional bolt-on AXS-R5 recorder, designed specifically to attach seamlessly to the F55 and F5 cameras. There is also high speed shooting up to 240 fps RAW 2K and 60 fps in RAW 4K recording onto the AXS-R5. Expected as a future upgrade. Recording onto the optional AXS-R5 recorder.

Lightweight modular design to maximize versatility in 2D and 3D The F55 is exceptionally small, light and modular, letting you build up the right configuration for each job - or each shot. As well as the choice of formats and internal and external recording options, you can attach a variety of viewfinders, including the revolutionary optional DVF-EL100 OLED viewfinder, PL-mount, FZ-mount and still lenses, including second-generation Sony PL-mount lenses and extra long-life Olivine - Lithium Iron Phosphate - batteries. The chassis is only slightly wider than a typical PL-mount prime lens, perfect for 3D rigs. An optional shoulder rig provides for hand-held and shoulder-mounted shooting.

The PMW-F55's Sony 4K image sensor captures a true 4K 4096 x 2160 DCI-standard cinema image. Its 4K CMOS sensor features 11.6 megapixels (total) and 8.9 megapixels (effective). The "Frame Image Scan" technology used by F55 sensor eliminates flash band and image artifacts common to conventional CMOS sensors. This sensor captures with an impressive 14 stops of exposure latitude with excellent sensitivity and low noise. The F55 image sensor is also equipped with the same advanced color filter array technology used in Sony's flagship F65, which delivers color gamut that's wider than 35mm motion picture print film.

The F55 CineAlta camera provides the choice recording of three formats to SXS cards: MPEG-2, 50Mbps HD422 plus two 10-bit mastering formats: XAVC at HD, 2K & 4K resolution, plus SR Codec (HDCAM SR) at 440Mbps or 220Mbps. 16-bit Linear 2K/4K RAW recording to the optional AXS-R5 recorder preserves the greatest latitude for color correction and other post processes. Sony's 16-bit recording captures 16x more tonal values than 12 bit RAW. Thus it's the ideal acquisition format for the 16-bit linear Academy Color Encoding System (ACES) workflow.

The F55 features high frame-rate on-board XAVC HD and 4K recordings up to 60 fps, plus a free planned upgrade to XAVC, QFHD up to 60 fps in addition to XAVC 2K/HD up to180 fps. It also offers 240 fps 2K RAW with the optional AXS-R5 outboard recorder and a planned upgrade, achieving the highest frame rates most productions will need, while retaining exceptional, 16-bit image quality.

Simultaneous RAW and onboard camera SXS recording provides a coordinated "off-line, on-line" workflow with simultaneous recording to internal SXS cards and the optional AXS-R5 RAW recorder. For seamless conforming in post, you get matching time code, start frame, stop frame and file names.

The F55 is equipped with Sony's large diameter, robust, FZ-mount which is compatible with virtually all 35mm DSLR and Cine lenses with simple inexpensive lens adapters. It ships with a PL-mount compatible with Cooke/i and Arri LDS.

The F5/F55 excellent camera ergonomics enable comfortably shooting for long periods of time. The camera head, viewfinder and shoulder mount can be adjusted to fit any shooter and optimized for different lens configurations. Their clean, flexible architecture enables shooting in many configurations.

CBK55PD Additional Codec Board
CBK-55PD is an additional Codec Board for the PMW-F5 and PMW-F55. This hardware upgrade option for the F55/F5 cameras offers Apple ProRes 422 and Avid DNxHD encoding. The board includes three operating points of Apple ProRes and two operating points of Avid DNxHD as of the release date. The board requires F5/F55 version 5.0 firmware planned to also be available at the end of December 2014. Files will be encoded internally to the F55/F5 and recorded to Sony's SXS Pro+ memory cards. Apple ProRes 4444 is planned to be supported with a future firmware update planned for June 2015.The CBK-55PD must be installed at a Sony Service Center. This is a one way upgrade, the encoder board cannot be uninstalled.

• Apple ProRes 4444: 12bit 1920x1080, 23.98P, 24P, 25P, 29.97P
• Apple ProRes 422HQ: 10bit 1920x1080, 23.98P, 24P, 25P, 29.97P, 50i, 59.94i, 50P, 59.94P
• Apple ProRes 422: 10bit 1920x1080, 23.98P, 24P, 25P, 29.97P, 50i, 59.94i, 50P, 59.94P
• Avid DNxHD 220x: 10bit 1920x1080, 23.98P, 25P, 29.97P, 50i, 59.94i
• Avid DNxHD 145: 8bit 1920x1080, 23.98P, 25P, 29.97P, 50i, 59.94i
• Avid and DNxHD are trademarks or registered trademarks of Avid Technology, Inc. or its subsidiaries in the United States and/or other Countries.

DVFEL100 OLED Viewfinder
0.7" Hi resolution OLED viewfinder for Sony F55/5 series cameras.

• The DVF-EL100 OLED viewfinder 1280 x 720 OLED panel
• Only OLED technology - a self-emitting technology - guarantees highest contrast ratio. Faithfully reproduces tonal grations into the deepest blacks. Exceeds CRT technology
• Easy to focus 4K image
• Its 26-pin digital viewfinder cable can be substituted for a longer cable (47-1/4 inches long)
• Compatible with PMW-F5 & PMW-F55 plus F65 equipped with version 3.0 upgrade
• Emissive technology with 10,000: 1 contrast ratio. Displays 13.28 Stops. It nearly reproduces the full 14 stop exposure latitude, over ten times more than LCD technology.
• No smear or blur, reproduces motion with high fidelity
• OLED technology used on the DVF-EL100 accurately reproduces color and tone simply as they are
• Widely adjustable mounting system for optimum VF positioning regardless of operator's height or body shape.

LCF55CZ Hard Case
The LC-F55CZ is built ATA tough for both shipping and transit, this new case offers full protection from careless handlers. The new LC-F55CZ features an integrated telescoping handle, fully recessed into the body of the case, as well as high density wheels a gasket seal, locking hasp and custom pre-cut foam for complete protection. The case also includes pre-cut cavities for the PMWF55 or F5 camera with DVF-EL100 or DVF-L350 and VCT-FSA5 attached plus two BP-FL75 batteries, AXS-R5 RAW recorder, DVF-L700 LCD VF, BPL90 Sony dual charger.

• ATA tough for shipping and transit
• Top entry
• Removable insert accepts camera head with battery adapter, viewfinder and VCT-FSA5 attached
• Includes cavities for all PMW-F5 & F55 accessories: AXS-R5, AXS-CR1, two BP-FL75, BC-L90, DVF-L700 and Israeli-arm
• Additional storage space for miscellaneous items
• Integrated retractable handle
• Watertight tongue & grove seal with rubber gasket
• Four locking latches. Two with stainless steel padlock protectors

SBAC-US30 Memory Card Reader

High speed transfers from SXS PRO+ and SXS-1 cards
The SBAC-US30 SXS PRO+ and SXS-1 memory card reader/writer works on both Windows-based PCs and Macintosh computers via a USB 3.0 interface for high-speed transfer of audio-visual material. The reader is also compatible with a USB 2.0 interface. This compact and portable device is the successor to the SBAC-US20 and comes in handy in many situations on location, for desktop browsing and fully-fledged editing.

Higher speed transfers, approx. 2x faster than predecessor model
Read speeds of approx. 440 MBps from latest SXS Pro+ and SXS-1 cards. Write speeds of approx. 350 MBps to latest SXS Pro+ cards.

Compatible with Windows and Mac operating systems
The SBAC-US30 works on both Windows-based PCs and Macintosh computers.

USB 3.0 and USB 2.0 transfers
The SBAC-US30 provides high speed transfer of audio/visual material from a SXS PRO+ or SXS-1 solid state memory card using an USB 3.0 interface, allowing you to make transfers when your computer does not have an ExpressCard slot. The device also provides compatibility with USB 2.0.

Bus-powered operation (AC adapter is not necessary)
The SBAC-US30 is compatible with media other than a SXS PRO+ or SXS-1 card when using the following adapters.
