Sony FS5 II ProRes RAW Atomos Kit

- - Sony PXW-FS5M2 Camera - -
New look for unbounded creativity: FS5 II is Sony s Super35 handheld camcorder with stunning 4K HDR and 120fps performance.

Stunning new Super 35 look
FS5 II's all-new default look is specifically tuned to meet the requirements of today's content creators with rich mid-range colors, alluring facial tones and a softer tonal look tuned with the same expertise as Sony's world-leading VENICE digital cinematography camera. Straight out of the camera your content will look fresh and vivid, with subjects that really stand out, while still retaining plenty of latitude for post production refinement due to the high performance Super 35 Exmor sensor.

Making an impact
Standing out from the crowd isn't easy. FS5 II makes it easy with complete creative freedom: slow down time with phenomenal high frame rates up to 120fps in 4K and 240fps 2K/Full HD. Deliver spectacularly vivid HDR imagery with a choice of HLG and S-log2/3.

Grab and shoot mobility
Lightweight but robust, FS5 II is an endlessly adaptable camcorder for capturing breath-taking imagery anywhere the action takes you. Its modular design makes it easy to reconfigure for any application including mounting on a gimbal or drone.

High Frame Rate (HFR) recording
FS5 II delivers stunning slow motion imagery, including four seconds of 120fps in 4K, continuous 240fps in 2K RAW when used in partnership with a compatible third-party external recorder, such as the ATOMOS Shogun and Convergent Design Odyssey 7Q.

FS5 II also offers High Frame Rate (HFR) cache recording at Full HD 10bit 4:2:2 image quality and a frame rate of up to 240 fps. 8-second cache recording on to SDXC card means no more mistimed shots leading to extra takes. It also lets you pick out footage at exactly the point that you want. FS5 II also records continuous 120fps internally in Full HD. Higher frame rates of 480 fps and 960 fps are possible at specific resolutions.

Spectacular HDR performance
Demand for HDR content is increasing and FS5 II offers you a choice of two powerful workflows. Whichever option you choose, a phenomenal fourteen stops of exposure latitude ensures the highest fidelity in capturing highlights and details within shadows.

• Instant HDR Workflow is all about speed. Shoot, edit and view content in Hybrid Log-Gamma (HLG) to deliver content quickly without compromising on imaging expression and quality of content
• S-Log2/3 is the proven choice for premium applications where you wish to capture as much data as possible for the ultimate flexibility in grading

4K Super 35 Exmor sensor
FS5 II is built around a high-sensitivity 4K Super35 'Exmor' CMOS Sensor that offers all the benefits of a large format sensor in combination with the exceptional image readout speeds required for 4K motion-picture shooting and super slow motion.

4K resolution
11.6 million total pixels and 8.8 million effective pixels deliver 4K resolution. Even if you're delivering in HD, your recordings will capture detail and image texture that HD sensors simply cannot see.

Super 35 size sensor
Offers 'bokeh,' the defocused backgrounds made possible by shallow depth of field, as well as excellent low-light sensitivity and an expansive field of view.

14 stops of exposure latitude
Deliver powerful grayscale rendition without crushing shadow detail or blowing out highlight detail.

Sony's Exmor CMOS design
Provides high-speed full-pixel read-out capability (without pixel binning) and sophisticated camera processing to ensure jaggies and more are minimized.

Record 10bit 4:2:2 in Full HD
At up 50Mbps internally.

Record 4K at 60/50 fps
In FS-RAW via a compatible third-party external recorder, such as ATOMOS Shogun and Convergent Design Odyssey 7Q.

Alpha mount flexibility
Sony's Alpha mount system offers unsurpassed compatibility with both Sony and third-party lenses. FS5 II's E-Mount can take cinema lenses and SLR lenses with a third-party adaptor, as well as Sony's E-mount and A-mount lenses. So whether buying new lenses or making use of lenses you've already purchased, FS5 II makes it easy.

Built-in electronic Variable ND Filters
FS5 II features Sony's unique built-in electronic variable Neutral Density (ND) filter, further expanding the depth of field capability of its large format sensor. Unlike conventional optical ND Filters, the electronic ND Filter on FS5 II can be controlled from 1/4ND to 1/128ND linearly. ND Filters can also be set to auto. This makes FS5 II ideal for fast-moving shoots in changeable environments - there's no need to change filters as lighting conditions change and variable control makes it easy to keep depth of field under control.

Clear Image Zoom
This proprietary Sony technology significantly extends your ability to get closer to a remote scene while preserving image quality. Once you've zoomed in at maximum optical magnification, By Pixel Super Resolution technology can enlarge the image by additional 200% in Full HD and 150% in 4K. It is also compatible with fixed focal length lenses, so you can zoom into a scene while using a prime lens.

Lightweight, modular and robust
Despite its amazingly light 0.8kg body, FS5 II is more than tough enough for the rig ours of real-world shooting. A magnesium chassis ensures high rigidity with 1/4" screw holes on handle, top and bottom of the body to support mounting on a drone, gimbal or in an underwater housing. A detachable Smart Grip puts all of the FS5's key functions are at your fingertips and is easily adjusted with the press of a single button.

Versatile monitoring
However you want to shoot, the FS5 II adapts to fit your style. A high resolution 0.39" OLED viewfinder enables precise manual focus and is perfectly offset for right-eye or left-eye viewing. A 3.5" LCD screen can be attached in no less than nine different locations: three on top of the handle and another six on top of the body. And once attached, the positioning of the screen can be freely adjusted - for example either beside the camera body or directly along the axis of the lens.

Networked for high mobility
• Live stream from any event thanks to a choice of Wi-Fi or built-in wired LAN
• Control FS5 II from your smartphone or tablet
• Built-in NFC supports one-touch authentication possible with appropriate devices
• Be first with breaking news thanks to a built-in wired LAN jack for high-speed FTP transfer of full resolution content
• GPS function automatically records GPS data

- - Shogun Inferno - -
Set your set ablaze with Shogun Inferno, the ultimate 7" HDR monitor/recorder. Record ProRes RAW, ProRes, DNxHR or CDNG.

Record ProRes RAW
Unlock the true potential of your RAW cinema camera with the Shogun Inferno. Preserve your sensor's pristine pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD and 2kp240 DCI/HD. CDNG supports up to 4kp30 DCI. Inferno is compatible with Sony FS series, Canon C300MKII/C500 or Panasonic EVA-1/VariCam LT.

10-bit ProRes/DNxHR up to 4Kp60
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in ProRes or DNxHR codecs at 4Kp60 or 2Kp240, depending on the camera's capability. The depth and quality of the image is preserved with data rates of up to 1.8Gbs, 220MB/s.

Bright, vibrant HDR images anywhere
The 7" 1920x1200 1500nit high bright HDR display allows you to see your images with unparalleled accuracy. Nail focus and exposure, even outside in daylight. The AtomHDR panel shows 10+ stops of HDR resolved in real time from RAW/Log/PQ/HLG sources.

Balanced XLR monitor & record
Eliminate the need for a separate audio recorder. Add 48V stereo mics via the balanced XLR breakout cable. Select Mic or Line input levels, record up to 12 channels of digital audio from HDMI or SDI. Monitor selected stereo via the 3.5mm headphone jack. There are dedicated meters, gain controls and adjustments for frame delay.

Professional monitoring tool
Shogun Inferno has extensive monitoring tools, including custom 3D LUTs, false color, peaking, movable 1-1 and 2-1 pixel magnification, waveform, RGB parade, vectorscope. You can even calibrate for color accuracy.

Portable Playback Deck
The ultimate battery-powered playback deck, review and playout footage anywhere - scrub through, jog frame-by-frame and even watch back in slow motion. Metadata tag footage as you go to mark favorites, rejects and more. Bring your footage into your timeline and immediately filter your tags.

Quad SDI & HDMI 2.0 In/Out
Seamlessly connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quadlink SDI in almost any combination and eliminate the need for specialist converters.

Edit HDR in the field
After shooting, immediately feed HDR into your Shogun directly from your Final Cut Pro X timeline using an I/O box for mobile HDR grading. We support any NLE or Grading suite that support our file formats - basically all of them!

- - Atomos Accessory Kit - -

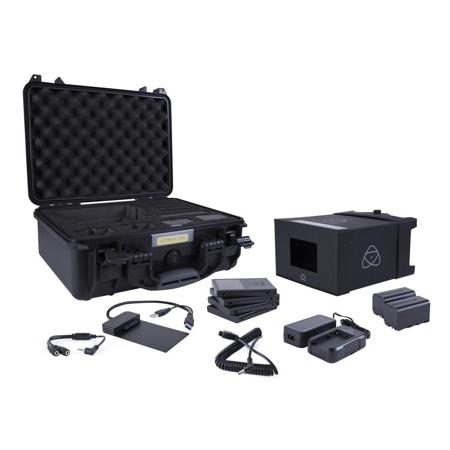

The Atomos Accessory kit is the ideal companion to your Atomos Flame or Inferno Series monitor recorder. Providing all the accessories for your devices including 2x 5200mAh battery, fast charger, Dtap to DC cable, 4x Master Caddy, USB drive docking station and HDR sunhood. These fit into a custom black HPRC rugged case with shoulder strap and formed foam inserts.
