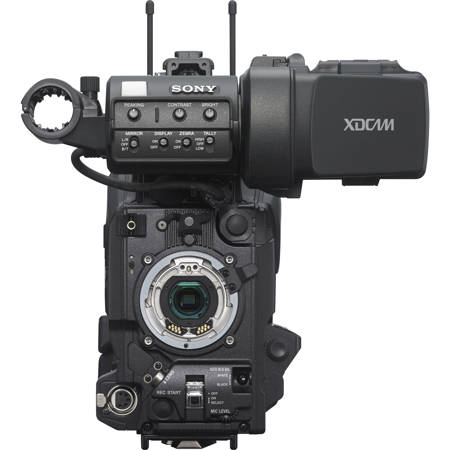

Sony PXW-X320 XDCAM Solid State Memory Camcorder, without Lens

The PXW-X320 is a high-performance SxS memory camcorder which inherits field-proven operability from the reputable PMW-320. The PXW-X320 has become a part of the XDCAM HD422 family, comes equipped with cutting-edge imaging technology - three 1/2"-type Full-HD Exmor CMOS sensors with an extremely high S/N ratio - with Flash Band Reducer feature to provide outstanding picture quality.

The PXW-X320 supports XAVC offering high quality content creation in the HD domain. In addition to XAVC, MPEG HD422, MPEG HD, MPEG IMX and DVCAM are supported. Two HD/SD-SDI, HDMI, i.LINK and composite outputs provide a wide range of AV and IT interfaces. The PXW-X320 also supports wireless operation using an optional adapter, the CBK-WA101. This enables easy and quick clip data transmission to broadcast stations, saving the time and transportation cost of shot clip delivery.

With various functions inherited from Sony's world-acclaimed XDCAM camcorders and yet highly cost effective, the PXW-X320 is an ideal choice for many different camera professionals, from those engaged in news gathering, when speed is the key concern, to those who produce TV programs and documentaries, when quality is crucial.

High picture quality recording on SxS memory cards
Offer high resolution, high sensitivity (F11 at 59.94Hz / F12 at 50Hz), low noise (60dB) and a wide dynamic range with 3chip 1/2" type CMOS.

Selectable format and bit rates
Includes Full HD (1920x1080) 59.94i/50i/29.97p/25p/23.98p and HD (1280 x 720) 59.94p/50p, as well as XAVC Intra at 100 Mbps, XAVC Long at up to 50 Mbps, MPEG HD422 at 50 Mbps, MPEG HD at up to 35 Mbps, MPEG IMX at 50 Mbps and DVCAM at 25 Mbps.

Variety of interfaces
Interfaces include 2x SD / HD-SDI, HDMI, USB and i.Link.

Wireless adaptor increases operational flexibility
Supports wireless operation using an optional wireless adapter, the CBK-WA101, for live streaming via an IP network.

High picture quality
The PXW-X320 incorporates three 1/2"-type Full HD Exmor CMOS sensors (1920 x 1080) to achieve high resolution, high sensitivity (F11 at 59.94Hz / F12 at 50Hz), low noise (60 dB) and a wide dynamic range to give more freedom of expression for creative shooting.

Three-dimensional noise reducer
In addition to existing noise reduction features, the PXW-X320 also includes a three-dimensional noise reducer. This not only detects vertical and horizontal direction in a frame picture but also noise components in a time axis, utilizing correlation characteristics between video frames. Using this feature, the S/N ratio is improved to 60 dB, which is the highest level of noise reduction in a 1/2"-type Full HD shoulder camcorder.

Selectable format and bit rates
The PXW-X320 incorporates XAVC in the HD domain at a 100 Mbps data rate, enabling the creation of rich content with 10-bit quality. It is capable of recording XVAC Intra at 1920 x 1080 Full HD 59.94i, 50i, 29.97p, 25p and 23.98p or 1280 x 720 HD 59.94p and 50p. The camcorder can also record Full HD video (1920 x 1080) at up to 50 Mbps using XAVC Long and MPEG HD422, as well as MPEG HD at 35 Mbps / 25 Mbps, MPEG IMX at 50 Mbps and DVCAM at 25 Mbps in MXF file, as standard supported formats.

High resolution 3.5" color LCD viewfinder
With a large, easy-to-read 3.5" QHD color LCD viewfinder as a standard accessory, the PXW-X320 offers outstanding resolution of 960 x 540 pixels, strongly supporting critical focus control during HD shooting. The viewfinder cover can be flipped up to enhance visibility when the camera is set on a tripod.

Wireless adaptor increases operational flexibility
The PXW-X320 is designed to support wireless operation using an optional wireless adapter, the CBK-WA101, which can be attached without any additional cables. Using this adapter, you can stream out pictures for live shooting via an IP network. After shooting, you can select a recorded proxy or high resolution (A USB connection is required.) file from the list and upload it to an on-premises server or to a cloud service via a mobile Wireless LAN router or 3G/4G/LTE device. The adapter also provides live monitoring and remote control of the PXW-X320 by mobile tablet or smartphone with mobile application software.

Enhanced flash band reducer
Incorporating a newly developed algorithm, the PXW-X320 detects and processes flash banding inside its hardware before recording begins. This provides greater flexibility in reducing flash banding across different shooting environments. This feature can be disabled from the menu if you want to use Content Browser for flash band reduction after shooting. You are free to choose to reduce flash band before or after shooting, depending on each shooting circumstance.

Customizable menu
The PXW-X320 has a User Menu feature that is typically associated only with high-end camcorders. This feature allows you to pick and organize frequently used menu items much in the same way as the bookmark feature of a web browser. By using this feature, you can save a lot of time - you won't have to repeatedly search for specific menu items - and experience more efficient operation.

Variety of interfaces including SD / HD-SDI and i.Link
Two lines of SDI output connection are provided by the PXW-X320. This enables, for example, the director and camera operator to concurrently check shot content via two separate monitors. Also, for monitoring purposes this camcorder can be connected via HDMI to professional displays as well as domestic-use TVs with an HDMI connector. The i.LINK connector can be used for HDV when SP 1440 (FAT) mode is selected and for DV when DVCAM (FAT) mode is selected, for both input and output signal flows.

Low power consumption
The lightweight PXW-X320 has a low power consumption of 25W (with viewfinder and microphone while recording).
