Sony PXW-Z190 Specifications

Lens
  • Lens Mount

    Fixed type

  • Zoom Ratio

    25x

  • Focal Length

    3.7 mm to 92.5 mm
    (equivalent to 28.8 mm to 720 mm on a 35 mm lens)

  • Iris

    Auto/manual swichable
    F1.6 to F11 and C(close)

  • Focus

    800 mm to Infinite (Macro Off)
    10 mm to Infinite (Macro On, Wide)
    800 mm to Infinite (Macro On, Tele)
    AF/MF/Full MF selectable

  • Image Stabilizer

    On/Off selectable, shift lens

  • Filter Diameter

    M 82 mm , pitch 0.75 mm

Camera Section

Jump to...
  • Imaging Device (Type)

    1/3 type back-illuminated Exmor R 3CMOS sensor

  • Effective Picture Elements (H x V)

    3840 x 2160

  • Optical System

    F1.6 prism system

  • Built-in Optical Filters

    ND filters
    OFF: CLEAR
    1: 1/4ND
    2: 1/16ND
    3: 1/64ND
    Linear variable ND (Approx. 1/4ND to 1/128ND)

  • Sensitivity (2000 lx, 89.9% reflectance)

    F11 (typical, 1920 x 1080/59.94p, High Sensitivity Mode)
    F12 (typical, 1920 x 1080/50p, High Sensitivity Mode)

  • Minimum Illumination

    0.02lx (typical)
    (1920 x 1080/59.94i mode, F1.6, +30 dB gain, High Sensitivity Mode, with 64 frame accumulation)

  • Horizontal Resolution

    2,000 TV lines or more (3840 x 2160p mode)
    1,000 TV lines or more (1920 x 1080p mode)

  • Shutter Speed

    1/24 sec to 1/8,000 sec

  • Slow Shutter (SLS)

    2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation

  • Slow and Quick Motion Function

    XAVC Long
    2160P: 1-60 fps
    1080P: 1-60 fps
    720P: 1-60 fps

  • White Balance

    Preset (3200K), Memory A
    Memory B/ATW

  • Gain

    -3, 0, 3, 6, 9, 12, 18 dB, 30dB (Turbo Gain ON), AGC

  • Gamma Curve

    Selectable

Input/Output

Jump to...
  • Audio Input

    2x XLR-type 3-pin (female), line/mic/mic +48 V selectable
    LINE:+4, 0, -3dBu/10kOhm
    MIC:-80dBu to -30dBu /3kOhm
    (0 dBu=0.775 Vrms)

  • Audio Output

    1x Integrated into Multi/Micro USB jack

  • SDI Output

    1x BNC, 3G/HD/SD selectable

  • Timecode Input

    1x BNC (switchable to TC out) 0.5V-1.8Vp-p, 3.3kOhm

  • Timecode Output

    1x BNC (switchable to TC in) 1.0Vp-p, 75Ohm

  • USB

    1x USB device, Multi/Micro USB jack
    1x Host:USB 3.0/2.0 type A
    1x USB 2.0 type A

  • Headphone Output

    1x Stereo mini jack
    -16dBu 16Ohm

  • Speaker Output

    Monaural
    Output: 500mW

  • DC Input

    DC jack

  • Remote

    Stereo mini-minijack (2.5 mm)

  • HDMI Output

    HDMI connector (Type A)

  • Wired LAN

    1x RJ-45, 1000BASE-T, 100BASE-T, 10BASE-T

Monitoring

Jump to...
  • Viewfinder

    1.0 cm (0.39 type)
    Approx 2.36M dots

  • LCD

    8.8cm (3.5 type)
    Approx. 1.56M dots

Built-in Microphone

Jump to...
  • Built-in Microphone

    Omni-directional stereo electret condenser microphone

  • Type

    1x MS/SD, 1x SD

Wi-Fi/NFC

Jump to...
  • Supported Format

    IEEE 802.11 a/b/g/n/ac

  • Frequency Band

    2.4 GHz bandwidth
    5.2/5.3/5.6 GHz bandwidth

  • Security

    WEP/WPA-PSK/WPA2-PSK

  • NFC

    NFC Forum Type 3 Tag compliant

General

Jump to...
  • Recording Format (Video)

    XAVC Long:
    XAVC-L QFHD mode: VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
    XAVC-L HD 50 mode: VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
    XAVC-L HD 35 mode: VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
    XAVC-L HD 25 mode: VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC

    DVCAM:
    DVCAM mode: CBR, 25Mbps, DVCAM

  • Recording Format (Audio)

    XAVC Long:
    XAVC-L mode: LPCM 24-bit, 48kHz, 4 channels

    DVCAM:
    DVCAM mode: LPCM 16-bit, 48kHz, 4 channels

  • Recording Frame Rate

    XAVC Long:
    XAVC-L QFHD 150 mode: 3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P
    XAVC-L HD 50 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P
    XAVC-L HD 35 mode: XAVC-L HD 35 mode:
    1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
    XAVC-L HD 25 mode: 1920x1080/59.94i, 50i

    DVCAM:
    DVCAM mode: 720x480/59.94i, 29.97PsF 720x576/50i, 25PsF

  • Recording/Playback Time

    XAVC Long:
    XAVC-L QFHD 150 mode
    When using 128GB memory card: Approx. 88 minutes
    XAVC-L HD 50 mode
    When using 128GB memory card: Approx. 240 minutes
    XAVC-L HD 35 mode
    When using 128GB memory card: Approx. 325 minutes
    XAVC-L 25 mode
    When using 128GB memory card: Approx. 445 minutes

    DVCAM:
    When using 128GB memory card: Approx. 425 minutes

  • Recording Format (Proxy Audio)

    XAVC Proxy: AAC-LC, 128 kbps, 2 channels

  • Recording Format (Proxy Video)

    XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
    1920x1080, 9Mbps
    1280x720, 9Mbps
    1280x720, 6Mbps
    640x360, 3Mbps
    480x270, 1Mbps
    480x270, 0.5Mbps

  • Power Requirements

    DC In: 12V
    Battery: 14.4V
    Please use genuine Sony batteries to ensure correct and safe operation

  • Power Consumption

    Approx. 22W
    (while recording with LCD Off, EVF On when the external device connector is not used.)

    Approx. 29W
    (while recording with LCD On, EVF On when the external device connector is used.)

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to +140 Degree F (-20 Degree C to +60 Degree C)

  • Dimensions (W x H x D)

    7.5 x 8 x 16.5" (19.0 x 20.3 x 41.9cm)
    (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)

  • Weight

    Body: Approx. 5 lb 1.1 oz (2.3 kg)
    Approx. 6 lb 2.8 oz (2.8 kg) (with Lens Hood, Eyecup, BP-U30 Battery, SD Memory Card)

  • UPC Code

    027242913806

96 Accessories for Sony PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder

  • All Accessories (96)
  • Batteries & Power Supply (3)
  • Microphones & Audio (5)
  • Monitor & Recorder (3)
  • Filters (5)
  • Bags & Cases (4)
  • Tripod and Stand Accessories (3)
  • Headphones (5)
  • Cables & Adapters (17)
  • Flash & Lighting (51)

About Sony PXW-Z190

FEATURED REVIEWS

Excellent camera for event coverage and news gathering!

By LEILANI V.

The Sony PXW-Z190 is an excellent camera for event coverage, news gathering, nature footage, interviews, and professional video work. I use the camera for interviews, convention, stage, event coverage, YouTube content creation, and trade show coverage. Sony's new 3CMOS 1/3-inch chips are VERY good in lower light conditions than any other 1/3-inch sensor camera I've seen in the past. The 25x optical aoom Sony Lens G on this camera is spectacular. It takes two SDXC memory cards (have used up ...

View full Review

Great services and price

By ERNEST F.

The price of my camera along with other accessories was great. My camera was delivered earlier than expected. The customer service was great. I will continue to do business with these guys.

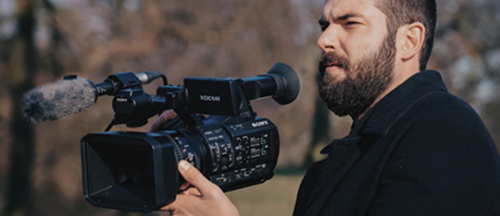

4K 50p/60p with a stunning 25x zoom lens

This superb all-rounder is the de facto choice for a wide range of 4K and HD single camera shoots with an all-new 1/3-type 3CMOS sensor. A powerful 25x zoom lens with three independent lens rings delivers pin-sharp 4K imaging for almost any professional shooting scenario. Advanced Face Detection AF and Sony’s unique Electronic Variable ND filter making shooting great content stress-free

4K 50p/60p with a stunning 25x zoom lens

Advanced workflow features

Instant HDR means you can deliver stunning imagery quickly without need for additional color grading. Dual MI Shoe allows simultaneous use of wireless audio and video lighting, while advanced network performance support is easily enabled when required

Advanced workflow features

Advanced usability and network solutions!

The PXW-Z190 combines advanced usability and network solutions for enhanced workflow efficiency. It is HLG compatible to support Sony’s Instant HDR workflow, delivering beautiful HDR content quickly, without the need for additional color grading. In addition, “Content Browser Mobile” software allows the camera to be operated remotely via smartphone. With an optional license, the camcorder can be used with Sony’s cloud-based ENG service, XDCAM air. File transfer and streaming is also possible using a wired or wireless LAN or LTE modem connection, enabling immediate editing and live monitoring.

4K 1/3-type 3CMOS Sensor

The PXW-Z190 is the world’s first professional camcorder with a 4K (QFHD) 1/3-inch type sensor. Red, blue, and green light are independently captured by separate image sensors within the Exmor RTM system in 3840 x 2160 resolution at up to 60fps. Even if you’re delivering in HD, 4:2:2 10-bit recordings will capture detail and image texture that HD sensors simply cannot see.

4K 1/3-type 3CMOS Sensor

Dual MI shoes enable the use of a wireless microphone and video light at the same time to achieve further flexibility. When using Sony’s UWP-D series wireless microphone, audio signals can be delivered without cabling – eliminating the risk of accidental disconnection and battery loss of the wireless audio receiver. Enhanced 4-channel audio recording is supported by a combination of 2 XLR inputs and audio input via an MI shoe.

ony’s UWP-D series wireless microphone

Dual SD media slots

The camcorder is equipped with two SD memory card slots, which can record in either Simul or Relay or Back up mode. Simul mode permits simultaneous recording to two memory cards, ideal for archival purposes. Relay mode automatically switches recording from the first to the second memory card when the first is full to extend recording times. In Back up mode, users can set up the two Start/Stop buttons on the PXW-Z190, one on the grip and one on the camcorder body, to independently start and stop recording on different memory cards while recording in Simul mode.

Wide range of main formats!

The PXW-Z190 covers a wide range of main formats including XAVC-Long, DVCAM. In addition to these formats, MPEG HD 422 and MPEG HD are available with an optional license. Proxy 1080i up to 9Mbps can be used for 4K and HD simultaneous recording. Other features include 3G-SDI output and a remote terminal for compact multi-camera operation using Sony’s MCX-500 production switcher and RM-30BP controller.

Wide range of main formats!

From professional videography to event coverage, the PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder is your ultimate tool for high-quality video production. This compact 4K handheld camcorder is equipped with an all-new 1/3-type 3CMOS sensor, capable of 4K 50p/60p (59.94fps) recording, ensuring you capture every detail in stunning clarity.

The PXW-Z190 features a powerful 25x zoom lens, providing you with the flexibility to frame your shots perfectly, even from a distance. The lens has three independent control rings for manual adjustment of focus, zoom, and iris, offering you complete control over your footage.

This camcorder is not just about stunning visuals; it also boasts advanced Face Detection AF, ensuring your subjects remain in sharp focus. Sony's unique Electronic Variable ND filter is integrated into the camcorder, allowing for fast, agile shooting in varying light conditions.

The PXW-Z190 supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD, and Proxy 1080i, making it a versatile choice for professionals. It also features dual SD slots, 3G-SDI output, and a Remote Terminal, ensuring it can support all workflow scenarios.

The PXW-Z190 is the world's first professional camcorder with a 4K (QFHD) 1/3-inch type sensor. Red, blue, and green light are independently captured by separate image sensors within the Exmor RTM system in 3840 x 2160 resolution at up to 60fps. This means even if you're delivering in HD, 4:2:2 10bit recordings will capture detail and image texture that HD sensors simply cannot see.

The PXW-Z190 also features an Instant HDR workflow, allowing you to shoot, edit, and view HDR content in HLG without the need for additional color grading. This simplifies your workflow and ensures you can deliver stunning imagery quickly.

With dual Multi-Interface (MI) Shoe, you can simultaneously use wireless audio and video lighting. The camcorder also offers four-channel audio recording with two independent volume dials, enabling precision control of external audio inputs.

The PXW-Z190 comes with 5GHz and 2.4GHz Wi-Fi as standard, allowing for remote operation and easy sharing of footage. With the PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder, you have a reliable, high-quality tool for all your professional video recording needs.

Sony PXW-Z190 Features

  • 4K 50p/60p with a stunning 25x zoom lens
  • 4K 1/3-type 3CMOS Sensor
  • Advanced Face Detection AF
  • Built-in electronic Variable ND Filters
  • Instant HDR workflow
  • Dual Multi-Interface (MI) Shoe
  • Dual XLR and 4 Channel Audio
  • Dual SD media slots
  • Network workflow flexibility
  • XAVC Long GOP recording at QFHD and Full-HD
  • Broadcast-standard MPEG HD422 and MPEG HD
  • DVCAM at 25 Mbps in MXF file format

Product Documents

User Manual

Key Features

  • Compact 4K handheld camcorder with 1/3-type 3CMOS sensor for high-quality video recording
  • Powerful 25x zoom lens with three independent rings for manual control of focus, zoom, and iris
  • Advanced Face Detection AF and Sony's unique Electronic Variable ND filter for agile shooting
  • Supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD, and Proxy 1080i
  • Features Instant HDR workflow for quick delivery of stunning imagery
  • Comes with 5GHz and 2.4GHz Wi-Fi for remote operation and easy sharing of footage

What's in the box:

  • Lens Hood (Pre-installed)
  • EVF Eyecup
  • BP-U30 Battery Pack
  • BC-U1A AC Adapter/Charger
  • Power Cord
  • USB Cable
  • CDROM "Operating Instructions "
  • Sony 1 Year Warranty

Articles & Videos
