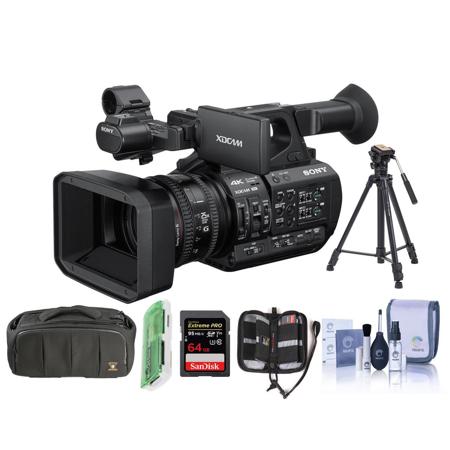

Sony PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder - Bundle With Video Bag, 64GB SDXC U3 Card, Video Tripod, Cleaning Kit, Memory wallet, Card Reader,

SKU: SOPXWZ190A

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the zoom capability of the PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder?

The PXW-Z190 is equipped with a powerful 25x zoom lens, capable of zooming from 28.8mm to 720mm (35mm equivalent).

What advanced features does the PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder offer?

The PXW-Z190 comes with advanced features like Face Detection AF, Sony's unique Electronic Variable ND filter, and Instant HDR, which makes shooting great content stress-free and delivers stunning imagery quickly without the need for additional color grading.

What formats does the PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder support?

The PXW-Z190 supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD, and Proxy 1080i.

Does the PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder offer remote operation?

Yes, the PXW-Z190 comes with 5GHz and 2.4GHz Wi-Fi as standard, allowing for remote operation and one-touch authentication with smartphones that offer NFC connectivity.

What is the audio recording capability of the PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder?

The PXW-Z190 offers four channel audio recording with two independent volume dials enabling precision control of external audio inputs, including an MI-shoe attached microphone.

Shopper : Why Did You Choose This?ERIC C : we wanted a small camera and liked all the specs from this camera. It had a few more things we wanted over the Z90.JUVENTINO P : Because i want try it.?CHINTHAKA H : Purchased everything as a donation to a non profit religious organization.STEVEN B : Zoom qualityYOLANDA B : Gift for my son

Reviews about this item

Review Summary

2023-11-09T10:23:50

Rated 5 out of 5

Very good item

Very good item

Johanna M.

2022-01-04T11:04:23

Rated 5 out of 5

Great picture, great camera

Would highly recommend for a variety of solutions. We use this as a studio camera in our high school TV studio. Lots of pro features for a great price.

ACCOUNTS P.

2020-08-28T07:15:49

Rated 4 out of 5

Solid camera and accessories

No major complaints. Needs to be learned like any camera but is full of great features built in. The accessories are all good entry level pieces but might need replacing in the future.

KYLE M.

2020-07-03T01:56:56

Rated 5 out of 5

Great price with great customer service.

Great price with great customer service.

ERNEST F.

2020-07-03T01:55:28

Rated 5 out of 5

Great services and price

The price of my camera along with other accessories was great. My camera was delivered earlier than expected. The customer service was great. I will continue to do business with these guys.

ERNEST F.

2020-06-26T10:20:11

Rated 5 out of 5

Glad to recommend this equipment

Thus far a great piece of equipment

PASTOR V.

2020-06-17T10:56:05

Rated 5 out of 5

Good camera

So far so good. Set up for remote and it works well with the switcher. Love having a white balance button.

ACCOUNTS P.

2020-06-08T09:20:41

Rated 5 out of 5

Great Camera

Great Camera, Our junior high production team will love all of the features that this camera has to offer.

LAWRENCE G.

2020-03-13T06:56:18

Rated 3 out of 5

Awful for indoors

really awful at filming anything indoors. Traded in for the 280, which is wonderful.

Jonathan F.

2020-03-11T20:29:52

Rated 5 out of 5

A very solid camera for event work

This is my second Sony camera. It works well in low light.

TIMOTHY A.

2019-01-10T13:39:25

Rated 3 out of 5

Good Features, Mediocre Performance

I wanted a camcorder to record sporting events indoors at 4K 60fps. I had been using a DSLR on a gimbal and wanted to upgrade to a real video camera for the form factor and simplicity. I have only used this for one basketball game at this point. The basketball court was fairly well lit for a gym. I would rank the low light performance as not great compared to a Sony A7RIII, Sony A9, Sony FDR-X300, and BMPCC4K. Each of these cameras has been used at this same gym in the same lighting conditions. The Sony PXW-Z190 had the most noise by far. I have not seen this much noise in many years. I love the camcorder on a monopod and the physical layout and features of this camera, however the performance is not great for what I need. Compared to these other cameras I use this noise was much more noticeable. Neat Video took care of it pretty well, but not perfectly. I am really surprised by how noisy the footage is for any indoor shots, even reasonable well-lit rooms. I also experienced several glitches using the eyepiece viewfinder. Twice I had black line flickering that lasted several seconds, and once I had the screen turn white for a few seconds while I was recording. I am in wait and see mode. I love the form factor, but the quality is not what I was hoping for. The footage from this Sony PXW-Z190 looks crappy to average compared to the beautiful shots from the same gym taken the same night with the BMPCC4K. With a lot more post production work I was able to make it look decent.

ABRAHAM W.

2018-12-26T18:04:25

Rated 5 out of 5

Recommend Sony z-190 to everyone. Quality images and good sound.

They’re the best. They have time for everyone and they are polite. They know how to talk to everyone, been you a customer or not. I recommend them for everyone. Thanks

ASOMANING A.

2018-09-12T22:00:44

Rated 5 out of 5

Excellent camera for event coverage and news gathering!

The Sony PXW-Z190 is an excellent camera for event coverage, news gathering, nature footage, interviews, and professional video work. I use the camera for interviews, convention, stage, event coverage, YouTube content creation, and trade show coverage. Sony's new 3CMOS 1/3-inch chips are VERY good in lower light conditions than any other 1/3-inch sensor camera I've seen in the past. The 25x optical aoom Sony Lens G on this camera is spectacular. It takes two SDXC memory cards (have used up to 512GB in size with no issues) and record up to 4K UHD (3840x2160p) 60fps in the XAVC-L format as well as DVCAM. In December 2018, the optional MPEG-2 (4:2:2) license will be available for purchase along with a more advanced networking package, It also record 1080p 4:2:2 out of the box in the XAVC format. Includes 4-channel audio. 2 phantom powered XLR audio jacks, 3G-SDI, WiFi, ethernet LAN cable connectivity, and a host of other options. This camera has improved my workflow and quality and gives me the professional look, feel, and workflow I've always wanted. My convention and event coverage as well as YouTube content creation has improved dramatically even since I've started using this camcorder. Highly recommended!!

LEILANI V.

2018-09-09T20:00:42

Rated 1 out of 5

Not Ready for Release!

I own a small production Company with one full time employee and myself. This is my 19th $3k+ "professional" video camera purchase. Many of my cameras have been $5K to $8.5K. I have rented many more cameras than this. This has got to be the worst video camera release from Sony EVER. Much of this camera's function does not work at all. Not a single auto focus feature works. Switching from "manual" to "auto makes absolutely no difference. The "variable ND filter" function only works once you have already selected to use the ND filter in manual mode. In other words, it IS NOT a 0-infinity feature. The "direct menu" feature does not work in any usable manner in either "Full Auto" or "Manual" modes. Only a single codec is available in 4K. Once you use the camera's on-board black balance feature you cannot reverse the effect. The owners's manual that is supplied on a CD is replete with inaccuracies and "holes". The assign buttons don't work. Many of the functions within the menu are greyed out as if the will be available at some later date with some firmware update. Did ADORAMA sell me some grey market, pre-release JUNK?! I paid 3 figures for next day air to get this thing for a VERY important shoot. Now I can't even get a hold of anyone due to ANOTHER holiday that I don't understand. I had so much hope for this camera, and for a professional relationship with a new (to me) New York camera super store.

Dennis M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sony PXW-Z190 Specifications

Lens
  • Lens Mount

    Fixed type

  • Zoom Ratio

    25x

  • Focal Length

    3.7 mm to 92.5 mm
    (equivalent to 28.8 mm to 720 mm on a 35 mm lens)

  • Iris

    Auto/manual swichable
    F1.6 to F11 and C(close)

  • Focus

    800 mm to Infinite (Macro Off)
    10 mm to Infinite (Macro On, Wide)
    800 mm to Infinite (Macro On, Tele)
    AF/MF/Full MF selectable

  • Image Stabilizer

    On/Off selectable, shift lens

  • Filter Diameter

    M 82 mm , pitch 0.75 mm

Camera Section

Jump to...
  • Imaging Device (Type)

    1/3 type back-illuminated Exmor R 3CMOS sensor

  • Effective Picture Elements (H x V)

    3840 x 2160

  • Optical System

    F1.6 prism system

  • Built-in Optical Filters

    ND filters
    OFF: CLEAR
    1: 1/4ND
    2: 1/16ND
    3: 1/64ND
    Linear variable ND (Approx. 1/4ND to 1/128ND)

  • Sensitivity (2000 lx, 89.9% reflectance)

    F11 (typical, 1920 x 1080/59.94p, High Sensitivity Mode)
    F12 (typical, 1920 x 1080/50p, High Sensitivity Mode)

  • Minimum Illumination

    0.02lx (typical)
    (1920 x 1080/59.94i mode, F1.6, +30 dB gain, High Sensitivity Mode, with 64 frame accumulation)

  • Horizontal Resolution

    2,000 TV lines or more (3840 x 2160p mode)
    1,000 TV lines or more (1920 x 1080p mode)

  • Shutter Speed

    1/24 sec to 1/8,000 sec

  • Slow Shutter (SLS)

    2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation

  • Slow and Quick Motion Function

    XAVC Long
    2160P: 1-60 fps
    1080P: 1-60 fps
    720P: 1-60 fps

  • White Balance

    Preset (3200K), Memory A
    Memory B/ATW

  • Gain

    -3, 0, 3, 6, 9, 12, 18 dB, 30dB (Turbo Gain ON), AGC

  • Gamma Curve

    Selectable

Input/Output

Jump to...
  • Audio Input

    2x XLR-type 3-pin (female), line/mic/mic +48 V selectable
    LINE:+4, 0, -3dBu/10kOhm
    MIC:-80dBu to -30dBu /3kOhm
    (0 dBu=0.775 Vrms)

  • Audio Output

    1x Integrated into Multi/Micro USB jack

  • SDI Output

    1x BNC, 3G/HD/SD selectable

  • Timecode Input

    1x BNC (switchable to TC out) 0.5V-1.8Vp-p, 3.3kOhm

  • Timecode Output

    1x BNC (switchable to TC in) 1.0Vp-p, 75Ohm

  • USB

    1x USB device, Multi/Micro USB jack
    1x Host:USB 3.0/2.0 type A
    1x USB 2.0 type A

  • Headphone Output

    1x Stereo mini jack
    -16dBu 16Ohm

  • Speaker Output

    Monaural
    Output: 500mW

  • DC Input

    DC jack

  • Remote

    Stereo mini-minijack (2.5 mm)

  • HDMI Output

    HDMI connector (Type A)

  • Wired LAN

    1x RJ-45, 1000BASE-T, 100BASE-T, 10BASE-T

Monitoring

Jump to...
  • Viewfinder

    1.0 cm (0.39 type)
    Approx 2.36M dots

  • LCD

    8.8cm (3.5 type)
    Approx. 1.56M dots

Built-in Microphone

Jump to...
  • Built-in Microphone

    Omni-directional stereo electret condenser microphone

  • Type

    1x MS/SD, 1x SD

Wi-Fi/NFC

Jump to...
  • Supported Format

    IEEE 802.11 a/b/g/n/ac

  • Frequency Band

    2.4 GHz bandwidth
    5.2/5.3/5.6 GHz bandwidth

  • Security

    WEP/WPA-PSK/WPA2-PSK

  • NFC

    NFC Forum Type 3 Tag compliant

General

Jump to...
  • Recording Format (Video)

    XAVC Long:
    XAVC-L QFHD mode: VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
    XAVC-L HD 50 mode: VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
    XAVC-L HD 35 mode: VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
    XAVC-L HD 25 mode: VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC

    DVCAM:
    DVCAM mode: CBR, 25Mbps, DVCAM

  • Recording Format (Audio)

    XAVC Long:
    XAVC-L mode: LPCM 24-bit, 48kHz, 4 channels

    DVCAM:
    DVCAM mode: LPCM 16-bit, 48kHz, 4 channels

  • Recording Frame Rate

    XAVC Long:
    XAVC-L QFHD 150 mode: 3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P
    XAVC-L HD 50 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P
    XAVC-L HD 35 mode: XAVC-L HD 35 mode:
    1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
    XAVC-L HD 25 mode: 1920x1080/59.94i, 50i

    DVCAM:
    DVCAM mode: 720x480/59.94i, 29.97PsF 720x576/50i, 25PsF

  • Recording/Playback Time

    XAVC Long:
    XAVC-L QFHD 150 mode
    When using 128GB memory card: Approx. 88 minutes
    XAVC-L HD 50 mode
    When using 128GB memory card: Approx. 240 minutes
    XAVC-L HD 35 mode
    When using 128GB memory card: Approx. 325 minutes
    XAVC-L 25 mode
    When using 128GB memory card: Approx. 445 minutes

    DVCAM:
    When using 128GB memory card: Approx. 425 minutes

  • Recording Format (Proxy Audio)

    XAVC Proxy: AAC-LC, 128 kbps, 2 channels

  • Recording Format (Proxy Video)

    XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
    1920x1080, 9Mbps
    1280x720, 9Mbps
    1280x720, 6Mbps
    640x360, 3Mbps
    480x270, 1Mbps
    480x270, 0.5Mbps

  • Power Requirements

    DC In: 12V
    Battery: 14.4V
    Please use genuine Sony batteries to ensure correct and safe operation

  • Power Consumption

    Approx. 22W
    (while recording with LCD Off, EVF On when the external device connector is not used.)

    Approx. 29W
    (while recording with LCD On, EVF On when the external device connector is used.)

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to +140 Degree F (-20 Degree C to +60 Degree C)

  • Dimensions (W x H x D)

    7.5 x 8 x 16.5" (19.0 x 20.3 x 41.9cm)
    (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)

  • Weight

    Body: Approx. 5 lb 1.1 oz (2.3 kg)
    Approx. 6 lb 2.8 oz (2.8 kg) (with Lens Hood, Eyecup, BP-U30 Battery, SD Memory Card)

  • UPC Code

    192223065482

92 Accessories for Sony PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder - Bundle With Video Bag, 64GB SDXC U3 Card, Video Tripod, Cleaning Kit, Memory wallet, Card Reader,

  • All Accessories (92)
  • Batteries & Power Supply (3)
  • Microphones & Audio (5)
  • Monitor & Recorder (3)
  • Filters (5)
  • Bags & Cases (4)
  • Tripod and Stand Accessories (3)
  • Headphones (5)
  • Cables & Adapters (16)
  • Flash & Lighting (48)

About Sony PXW-Z190

FEATURED REVIEWS

Excellent camera for event coverage and news gathering!

By LEILANI V.

The Sony PXW-Z190 is an excellent camera for event coverage, news gathering, nature footage, interviews, and professional video work. I use the camera for interviews, convention, stage, event coverage, YouTube content creation, and trade show coverage. Sony's new 3CMOS 1/3-inch chips are VERY good in lower light conditions than any other 1/3-inch sensor camera I've seen in the past. The 25x optical aoom Sony Lens G on this camera is spectacular. It takes two SDXC memory cards (have used up ...

View full Review

Great services and price

By ERNEST F.

The price of my camera along with other accessories was great. My camera was delivered earlier than expected. The customer service was great. I will continue to do business with these guys.

Why settle for less when you can have the best with the Sony PXW-Z190 Compact 4K 3-CMOS 1/3-type sensor XDCAM Camcorder This advanced handheld camcorder is equipped with a 1/3-type 3CMOS sensor that supports 4K 50p/60p (59.94fps) recording capability, ensuring high-quality video capture in every shot.

The PXW-Z190 boasts a powerful 25x zoom lens with three independent lens rings, offering pin-sharp 4K imaging for almost any professional shooting scenario. Whether you're filming a wide-angle landscape or a close-up interview, this versatile camcorder has got you covered.

Stay ahead of the game with advanced features like Face Detection AF and Sony's unique Electronic Variable ND filter, which make shooting great content stress-free. The Instant HDR feature allows you to deliver stunning imagery quickly without the need for additional color grading.

This professional camcorder supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD, and Proxy 1080i, catering to all your workflow scenarios. The PXW-Z190 is also equipped with dual SD slots, 3G-SDI output, and a Remote Terminal, ensuring it can support all workflow scenarios.

The PXW-Z190 is the world's first professional camcorder with a 4K (QFHD) 1/3-inch type sensor, capturing red, blue, and green light independently by separate image sensors within the Exmor RTM system in 3840 x 2160 resolution at up to 60fps.

The camcorder comes with a 25x professional zoom lens able to zoom from 28.8mm to 720mm (35mm equivalent). The 1/3-inch type lens has three independent control rings, allowing manual control of focus, zoom, and iris for better and faster adjustment.

The PXW-Z190 features newly developed Face detection AF, offering Face Priority AF and Face Only AF. This ensures your subject remains in pin-sharp focus, no matter how you move to obtain a better angle.

Sony's ground-breaking integration of electronic variable ND Filters into the body of a camcorder enables fast, agile shooting. Moving from shadowy interiors to bright sun-lit exteriors is no problem with the PXW-Z190.

The camcorder offers four channel audio recording with two independent volume dials enabling precision control of external audio inputs, including an MI-shoe attached microphone. Dual SD media slots allow for Simul or Relay or Back up mode recording, providing flexibility for your recording needs.

The PXW-Z190 comes with 5GHz and 2.4GHz Wi-Fi as standard, allowing for remote operation and one-touch authentication with smartphones that offer NFC connectivity. The camcorder also supports high-quality QoS Streaming to Network RX station, XDCAM air secure wireless workflow, MPEG TS UDP streaming, FTP Transfer of proxy clip and high resolution clip to remote servers, Wired LAN streaming and file transfer, and Trimming proxy and high resolution clip prior to sharing.

The PXW-Z190 offers production flexibility with support for a variety of production formats. XAVC Long GOP recording at QFHD and Full-HD XAVC technology is based on the H.264 standard, providing an exceptionally robust and efficient compression technology. The XAVC codec adopts 10-bit sampling for high definition recording with rich tonal expression.

The PXW-Z190 is the perfect choice for professionals seeking a compact, high-quality, and versatile camcorder for their video recording and production needs.

Sony PXW-Z190 Features

  • 4K 50p/60p with a stunning 25x zoom lens
  • 4K 1/3-type 3CMOS Sensor
  • Advanced Face Detection AF
  • Built-in electronic Variable ND Filters
  • Instant HDR workflow
  • Dual Multi-Interface (MI) Shoe
  • Dual XLR and 4 Channel Audio
  • Dual SD media slots
  • Network workflow flexibility
  • XAVC Long GOP recording at QFHD and Full-HD
  • Broadcast-standard MPEG HD422 and MPEG HD
  • DVCAM at 25 Mbps in MXF file format

Product Documents

User Manual

Key Features

  • 4K Compact XDCAM Camcorder with 1/3-type 3CMOS sensor for high-quality video recording
  • Powerful 25x zoom lens with three independent control rings for versatile shooting scenarios
  • Supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD, and Proxy 1080i
  • Dual SD slots, 3G-SDI output, and Remote Terminal for all workflow scenarios

What's in the box:

  • Lens Hood (Pre-installed)
  • EVF Eyecup
  • BP-U30 Battery Pack
  • BC-U1A AC Adapter/Charger
  • Power Cord
  • USB Cable
  • CDROM "Operating Instructions "
  • Sony 1 Year Warranty
  • Video Bag
  • 64GB SDXC U3 Card
  • Video Tripod
  • Cleaning Kit
  • Memory wallet
  • Card Reader

Articles & Videos
