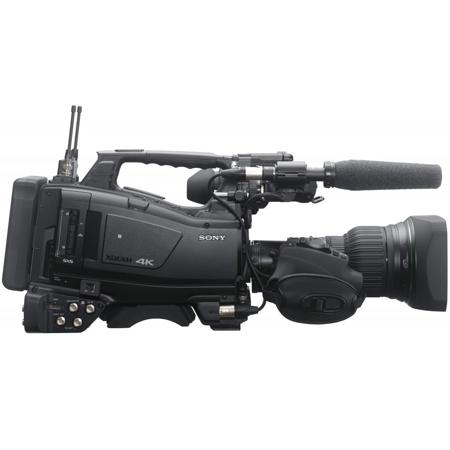

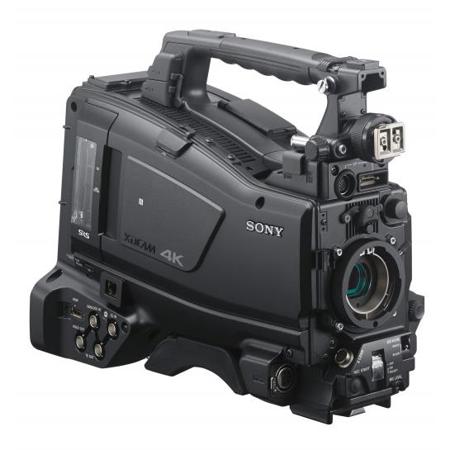

Sony PXW-Z450 4K XDCAM Shoulder Mount Camcorder (Body Only)

SKU: SOPXWZ450 MFR: PXW-Z450
Earn VIP Reward Points

Key Features

  • Capture stunning 4K footage with the PXW-Z450's advanced Exmor R CMOS sensor.
  • Achieve cinematic quality with versatile XAVC Intra and Long recording formats.
  • Enjoy extended recording times on SxS cards, perfect for long events and shoots.
  • Rely on the camcorder's robust build for dependable performance in any environment.
  • Seamlessly integrate with broadcast workflows using genlock and timecode I/O.
  • Experience superior audio with 4-channel, 24-bit recording for professional sound.
See More Product Details
Temporarily On Backorder?Request assistance or get notified

Final Sale - No Returns or Exchanges

Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sony PXW-Z450 Specifications

  • Continuous Operating Time

    Approx. 160 min with BP-FLX75

  • Recording Format (Video)

    XAVC Intra:

    XAVC-I QFHD 300 mode: MPEG-4 AVC/H.264, CBG, Max.600Mbps
    XAVC-I HD 100 mode: MPEG-4 AVC/H.264, CBG, Max.223Mbps

    XAVC Long:
    XAVC-L QFHD 150 Mode: MPEG-4 AVC/H.264, VBR, Max. 150Mbps
    XAVC-L QFHD 100 Mode: MPEG-4 AVC/H.264, VBR, Max. 100Mbps
    XAVC-L422 HD 50 Mode: MPEG-4 AVC/H.264, VBR, Max. 50Mbps
    XAVC-L422 HD 35 Mode: MPEG-4 AVC/H.264, VBR, Max. 35Mbps
    XAVC-L422 HD 25 Mode: MPEG-4 AVC/H.264, VBR, Max. 25Mbps

  • Recording Format (Video) (Cont.)

    MPEG HD422:
    HD422 mode: MPEG-2 422P at HL, CBR, Max.50 Mbps

    MPEG HD:
    HQ mode: MPEG-2 MP at HL, VBR, Max.35 Mbps

    MPEG IMX: MPEG-2 422 at ML, CBR, 50 Mbps

    DVCAM: CBR, 25 Mbps

  • Recording Format (Audio)

    XAVC Intra: LPCM 24 bits, 48kHz, 4 channels
    XAVC Long: LPCM 24 bits, 48kHz, 4 channels
    MPEG HD422: LPCM 24 bits, 48kHz, 4 channels
    MPEG HD: LPCM 16 bits, 48kHz, 4 channels
    MPEG IMX: LPCM 16/24 bits, 48kHz, 4 channels
    DVCAM: LPCM 16 bits, 48kHz, 4 channels

  • Recording Format (Proxy Video)

    XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
    1280x720, 9 Mbps (Target Rate)
    1280x720, 6 Mbps (Target Rate)
    640x360, 3 Mbps (Target Rate)
    480x270, 1 Mbps, 500kbps (Target Rate)

  • Recording Format (Proxy Audio)

    XAVC Proxy: AAC-LC, 128kbps, 2 channels

  • Recording Time: XAVC Intra, XAVC Long

    XAVC-I 4K QFHD 300 mode: Approx. 20 min. with 128GB SxS card at 59.94p
    XAVC-I HD 100 mode: Approx. 120 min. with 128GB SxS card at 59.94i
    XAVC-L QFHD 150 mode: Approx. 80 min. with 128GB SxS card at 59.94P
    XAVC-L QFHD 100 mode: Approx. 120 min. with 128GB SxS card at 59.94P
    XAVC-L422 HD 50 mode: Approx. 240 min. with 128GB SxS card at 59.94i
    XAVC-L422 HD 35 mode: Approx. 340 min. with 128GB SxS card at 59.94i
    XAVC-L422 HD 25 mode: Approx. 440 min. with 128GB SxS card at 59.94i

  • Recording Time: MPEG-2 HD422/HD420

    MPEG HD422 mode: Approx. 240 min. with 128GB SxS card at 59.94i
    MPEG HD420 HQ mode: Approx. 360 min. with 128GB SxS card at 59.94i

  • Recording Time: MPEG HD

    HD HQ Mode: Approx. 400 min. with 128GB SxS card at 59.94i
    HD SP Mode: Approx. 560 min. with 128GB SxS card at 59.94i

  • Recording Time: DVCAM

    Approx. 440 min. with 128GB SxS card at 59.94i

  • Recording Frame Rate

    XAVC Intra (XAVC-I QFHD 300 mode):
    3840x2160: 59.94p, 50p, 29.97p, 25p, 23.98p

    XAVC Intra (XAVC-I HD 100 mode):
    1920x1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    1280x720: 59.94p, 50p

    XAVC Long (XAVC-L QFHD 150 mode):
    3840x2160: 59.94p, 50p

    XAVC Long (XAVC-L QFHD 100 mode):
    3840x2160: 29.97p,25p, 23.98p

    XAVC Long (XAVC-L422 HD 50 mode):
    1920x1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    1280x720: 59.94p, 50p

  • Recording Frame Rate (Cont.)

    XAVC Long (XAVC-L422 HD 35 mode):
    1920x1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p

    XAVC Long (XAVC-L422 HD 25 mode):
    1920x1080: 59.94i, 50i

    MPEG HD422:
    1920x1080: 59.94i, 50i, 29.97p, 25p, 23.98p
    1280x720: 59.94p, 50p, 29.97p, 25p, 23.98p

    MPEG HD420:
    1920x1080: 59.94i, 50i, 29.97p, 25p, 23.98p
    1440x1080: 59.94i, 50i
    1280x720: 59.94p, 50p

    MPEG IMX:
    720x486: 59.94i
    720x576: 50i

    DVCAM:
    720x480: 59.94i
    720x576: 50i

  • Lens Mount

    Sony 2/3-inch type bayonet mount

  • Genlock Input

    1x BNC, 1.0 Vp-p, 75Ohms, unbalanced

  • Timecode Input

    1x BNC, 0.5 V to 18 Vp-p, 10KOhms

  • SDI Input

    SMPTE ST292/ST259 standard compliant, 4-channel audio
    1.5G
    Poolfeed Recording (up to 1080 59.94i)

  • Audio Input

    CH1/CH2: XLR-type 3-pin (female) (x2), Line/Mic/Mic/+48V selectable
    LINE: +4, 0, -3 dBu
    AES/EBU: AES3 compliant
    MIC: -70 dBu to -30 dBu

  • Mic Input

    XLR-type 5-pin, female: -70 dBu to -3 0 dBu

  • WRR (Wireless Microphone Receiver)

    D-sub 15-pin
    Analog CH1: -40 dBu
    Digital CH1/CH2: -40 dBFS

  • SDI Output

    Output 1/2/3/4: 4x BNC, 0.8 Vp-p

  • Video Output

    BNC, SD analog composite/HD-Y selectable

  • Audio Output

    XLR-type 5-pin, male, +4/0/-3 dBu (balanced)

  • Timecode Output

    BNC, 1.0 Vp-p, 75Ohms

  • Earphone Output

    1x Stereo mini jack
    -11 dBu reference level output, maximum monitor volume, 16Ohms load

  • Speaker Output

    Monaural, 300mW output

  • DC Input

    XLR-type 4-pin, male, 11 - 17V DC

  • DC Output

    Round type 4-pin, 11 - 17V DC, 1.8A maximum rated current

  • Lens

    12-pin, lens power source (11 - 17V DC, 1.0A maximum rated current)

  • Remote

    8-pin

  • Light

    2-pin

  • Camera Adaptor

    1x D-sub, 50-pin

  • Ethernet

    1x RJ-45, 100BASE-TX: IEEE 802.3u, 10BASE-T: IEEE 802.3

  • USB

    USB 3.0/2.0 4-pin (type A), USB2.0 4-pin (type B), USB2.0 4-pin (type-A)

  • HDMI

    1x A type, 19-pin

  • Viewfinder

    20-pin IF for HDVF Series Viewfinder, and 26-pin IF for CBK-VF02, HDVF-L750

  • Frequency Response

    20Hz - 20kHz (+/-3dB or less)

  • Dynamic Range

    90dB (typical)

  • Distortion

    0.08% or lower (-40 dBu input level)

  • Headroom

    20dB (factory default) (20, 18, 16, 12dB), EBUL

  • Imager

    2/3-type "Exmor R" 4K CMOS

  • Effective Picture Elements

    3840 (H) x 2160 (V)

  • Built-in Optical Filters

    1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND

  • Shutter Speed (Time)

    59.94i/p, 50i/p: 1/60 sec. to 1/2000 sec. + ECS
    29.97p: 1/40 sec. to 1/2000 sec. + ECS
    25p: 1/33 sec. to 1/2000 sec. + ECS
    23.94p: 1/32 sec. to 1/2000 sec. + ECS

  • Shutter Speed (Slow Shutter (SLS))

    2, 3, 4, 5, 6, 7, 8, 16-frame accumulation

  • Slow & Quick Motion Function

    1080p: Frame rate selectable from 1fps to 60 fps

  • Sensitivity (2000 lx, 89.9% Reflectance)

    F10 (typical) (1920 x 1080/59.94i mode or 3840 x 2160/59.94p mode)
    F11 (typical) (1920 x 1080/50i mode or 3840 x 2160/50p mode)

  • Minimum Illumination

    0.019 lx (F1.4, +42 dB, 16-frame accumulation)

  • White Balance

    Preset (3200K), Memory A, Memory B/ATW

  • Gain Selection

    -9, -6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB

  • S/N Ratio

    61dB typical (typical, 1920x1080/59.94i mode, Noise Suppression On)

  • Built-in LCD Monitor

    Color LCD, Screen Size: 3.5" diagonal, Aspect Ratio: 16:9, Number of pixels: 960 (H) x 540 (V) for Video display, Audio level, TC, battery and media remaining capacity

  • Built-in Speaker

    1x Built-in Speaker

  • Media SxS Card Slots

    Number of slots: 2

  • Media SD Card Slots

    Proxy (1), Utility (1)

  • GPS

    Yes

  • Built-in Network Module

    Yes

  • NFC

    Yes

  • High Resolution Video/Audio

    SxS card
    XQD card (with XQD ExpressCard Adapter, QDA-EX1)
    SDXC card (with XQD ExpressCard Adapter, MEAD-SD02)

  • Proxy Video/Audio and Utility

    SDXC/SDHC

  • Power Requirements

    DC 12V (11 - 17V)

  • Power Consumption

    Approx. 24W (while XAVC recording, color LCD on)
    Approx. 26W (while XAVC recording, color LCD on)

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Dimensions (W x H x D)

    Excluding Protrusions, Body Only: 170 x 269 x 332mm (6.69 x 10.59 x 13.07")

  • Weight

    Approx. 3.6kg (7.94lbs) (body only without lens, VF, Mic)

Related Articles & Videos

A Complete Guide to Netflix Approved Cameras 2024

A Complete Guide to Netflix Approved Cameras 2024

Are you looking to rent or purchase a camera for film? This article includes all the Netflix approved cameras, the best for film. Pick one!
Read more

1 Accessories for Sony PXW-Z450 4K XDCAM Shoulder Mount Camcorder (Body Only)

  • All Accessories (1)
  • Batteries & Power Supply (1)
Models
Sony PXW-Z450 4K XDCAM Shoulder Mount Camcorder (Body Only)
$24,995.00

$27,100.00

Save:$2,105.00 (8%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Sony PXW-X400 XDCAM 2/3" Weight-Balanced Advanced Shoulder Camcorder
$16,995.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Special Features24P, 25P, Genlockable, Interchangeable Lenses, Time Code I/O, XLR Mic Input24P, 25P, Genlockable, Interchangeable Lenses, Time Code I/O, XLR Mic Input
Resolution-AVCHD
Kit StyleNANA
ConfigurationCamcorder OnlyCamcorder Only
Sensor TypeCMOSCMOS
Version--
Sensor Size2/3"2/3"
Lens IncludedBody OnlyBody Only

About Sony PXW-Z450

Be at the forefront of professional videography with the Sony PXW-Z450 4K XDCAM Shoulder Mount Camcorder. This advanced, high-quality camcorder is designed to deliver 4K QFHD (3840 x 2160) recording at 50p/59.94p, as well as a variety of HD formats including XAVC Intra, XAVC Long GOP, MPEG HD 422, and MPEG HD 420.

The PXW-Z450 is equipped with a specially developed 4K 2/3-type Exmor R CMOS sensor, making it an ideal choice for a broad spectrum of 4K operations. This innovative feature allows you to use a wide range of commercially available B4 mount lenses without the need for an adapter, providing versatility and convenience for all your professional videography needs.

This durable camcorder offers the same advanced features as the PXW-X400 Full HD camcorder, including exceptional weight balance and low power consumption. It also boasts excellent networking features such as a built-in wireless module, an embedded RJ-45 Ethernet 100B-T connector, and a Near Field Communication (NFC) function for easy Wireless LAN setup and operation via a mobile or tablet with Sony's Content Browser Mobile application.

The PXW-Z450 supports a wide variety of formats including 4K QFHD and HD XAVC Intra and XAVC Long GOP at 50p/59.94p. Thanks to its versatile 2/3-type native sensor and B4 lens mount, this camcorder allows you to install a variety of B4 ENG lenses including either 4K or HD. This flexibility supports a variety of shooting applications while saving costs.

Designed with an ergonomic focus, the PXW-Z450's lighter lens grip reduces front weight and helps lessen the load on the right arm, providing comfort during long shooting sessions. The camcorder's specially developed 4K 2/3-type Exmor R CMOS sensor provides superb image quality and high sensitivity, matching B4 mount lens systems and allowing you to use commercially available B4 4K/HD lens systems without the need for an adapter.

The PXW-Z450 is the world's first 4K shoulder-mount camcorder and it inherits the design concept of the PXW-X400 XDCAM camcorder with a favorable reception. Thanks to its ergonomic design, the PXW-Z450 camcorder achieves optimized weight balance to lessen the weight on the lens grip and stable image shooting.

The camcorder supports a variety of Sony's viewfinders, including the Full HD OLED HDVF-EL30 and HDVF-EL20. The OLED viewfinders take advantage of focusing the 4K shooting. An embedded RJ-45 Ethernet 100B-T connector on the right side of the camcorder provides a robust and fast network connection that can be used for file transfer, live-streaming, and camera control from a web browser.

A Near Field Communication (NFC) function allows easy, one-touch wireless LAN connection to a smartphone or tablet device without manual setting of the network parameters. The camcorder's built-in wireless module gives you more mobility without the need for a cable, enabling proxy recording and file transfer or live-streaming.

In file transfer mode, high-resolution files and XAVC Proxy files can be transferred over wireless connection to the cloud or FTP server thanks to Content Browser Mobile (CBM) application. In Push mode, the CBM application enables users to monitor the currently shot video and to wirelessly control camcorder settings such as focus, zoom, iris, white balance, REC START/STOP and more.

With Content Browser Mobile V2.0, proxy trim, proxy partial clip upload, and logging are available. High-quality live-streaming is provided by the advanced Sony QoS technology embedded in the camcorder and in the PWS-100RX1 network RX station. Non-QoS live-streaming is also possible with a third-party receiver or VLC player.

A dedicated button gives simple on-off control of Network Client Mode, Auto Upload (Proxy) and Live-Streaming. An SD or HD-SDI (up to 1.5 G) signal can be recorded by the camcorder, a useful function to record an external feed from another camera.

By optimizing the design of the hardware, the lightweight camcorder has a low power consumption. This enables continuous recording operation for long hours of filming. Experience the future of professional videography with the Sony PXW-Z450 4K XDCAM Shoulder Mount Camcorder.

Sony PXW-Z450 Features

  • Advanced 4K XDCAM Shoulder Mount Camcorder with high-quality recording capabilities
  • Features 4K 2/3-type Exmor R CMOS sensor for superb image quality and high sensitivity
  • Versatile B4 lens mount compatibility, allowing for a wide range of commercially available lenses
  • Excellent networking features including built-in wireless module, RJ-45 Ethernet 100B-T connector, and NFC function for easy Wireless LAN setup
  • Supports a variety of Sony's viewfinders, including Full HD OLED HDVF-EL30 and HDVF-EL20
  • Optimized ergonomic design for comfortable, long hours of filming with low power consumption

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning 4K footage with the PXW-Z450's advanced Exmor R CMOS sensor.
  • Achieve cinematic quality with versatile XAVC Intra and Long recording formats.
  • Enjoy extended recording times on SxS cards, perfect for long events and shoots.
  • Rely on the camcorder's robust build for dependable performance in any environment.
  • Seamlessly integrate with broadcast workflows using genlock and timecode I/O.
  • Experience superior audio with 4-channel, 24-bit recording for professional sound.

What's in the box:

  • Sony PXW-Z450 4K XDCAM Shoulder Mount Camcorder
  • Shoulder Belt
  • Cold Shoe Kit
  • Lens Mount Cap
  • IFU-WLM3 USB Wireless LAN Module
  • 2x Protective Cap
  • Operation Guide
  • Operation Manual (CD-ROM)
  • Sony 1 Year Labor Warranty
