Sonifex Quad 3 Way Passive AES3ID Splitter with XLR Connector, Red
See all Sonifex items

Sonifex Quad 3 Way Passive AES3ID Splitter with XLR Connector, Red

SKU: SORBAES4X3
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sonifex Quad 3 Way Passive AES3ID Splitter with XLR Connector, Red Specifications

  • Minimum Signal Amplitude

    Minimum signal amplitude required to drive 100m (cumulative) of 110Ohms twisted pair cable, based on the sample rate of the digital audio
    2Vpk-pk at 32kHz
    2Vpk-pk at 44.1kHz
    2Vpk-pk at 48kHz
    5Vpk-pk at 88.2kHz
    5Vpk-pk at 96kHz
    Minimum signal amplitude required to drive 30m (cumulative) of 110Ohms twisted pair cable, based on the sample rate of the digital audio
    3Vpk-pk at 176.4kHz
    3Vpk-pk at 192kHz

  • Dimensions (W x D x H)

    Raw: 18.9 x 4.25 x 1.65" / 48 x 10.8 x 4.2cm
    Boxed: 23.03 x 8.86 x 2.76" / 58.5 x 22.5 x 7cm

  • Weight

    2.25lbs / 1.02kg

About Sonifex Quad 3 Way Passive AES3ID Splitter with XLR Connector, Red

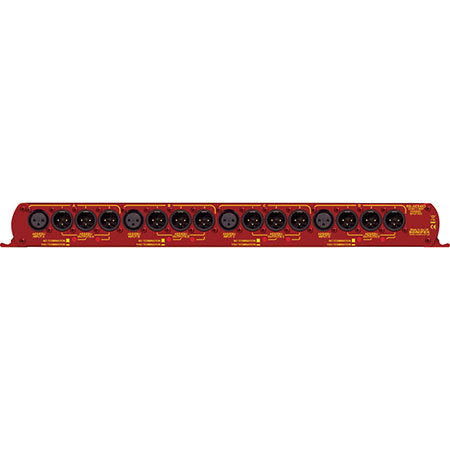

The Sonifex Quad 3 Way Passive AES3ID Red Splitter with XLR Connector is a passive, quad "one-to-three" splitter housed in a 19" rack. Each bank is designed to split a single AES3 digital audio source to up to three destinations, using Neutrik XLR connectors. The RB-AES4x3 provides solutions to a range of digital signal distribution problems, where correct termination is essential to maintain signal integrity. The input signal is split through high quality transformers and 110Ohms termination can be applied, if desired, to unconnected outputs. It requires no power to operate, ensuring your audio remains connected from source to destination without interruption from power failures.
