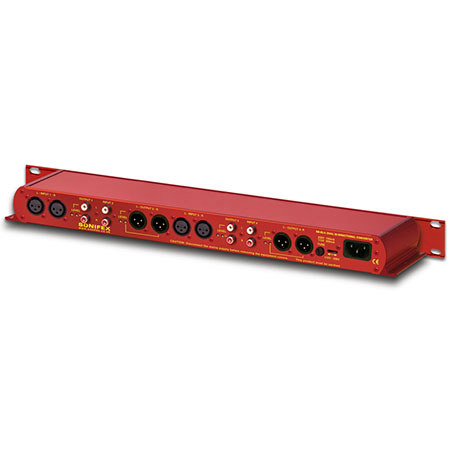

Sonifex RB-BL4 1U Dual Stereo Bi-Directional Matching Converter
See all Sonifex items

Sonifex RB-BL4 1U Dual Stereo Bi-Directional Matching Converter, <50Ohms Output Impedance, 20Hz-20kHz, 4x XLR 3 Pin Male, 4x RCA Phono Outputs

SKU: SORBBL4
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Sonifex RB-UL2: Picture 1 regular
Sonifex RB-UL2 1U Dual Stereo Unbalanced to Balanced Converter
$435.03$424.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sonifex RB-BL4 Specifications

  • Maximum Input Level

    +28dBu

  • Maximum Output Level

    +28dBu

  • Input Impedance (RCA)

    >10kOhms unbalanced

  • Input Impedance (XLR)

    >20kOhms balanced bridging

  • Output Impedance (RCA)

    <50Ohms

  • Output Impedance (XLR)

    <50Ohms

  • Distortion

    0.01% THD at 1kHz, ref +8dBu output

  • Noise

    -100dB, unity gain, ref +8dBu output

  • Common Mode Rejection

    >66dB typically

  • Frequency Response

    20Hz to 20kHz +/-0.1dB (600 Ohms load, ref 1kHz)

  • Gain Range

    Unbalanced Output: -28dBu to 0dBu, ref 0dBu into balanced XLR input
    Balanced Output: -15dBu to +15dBu, ref -15dBu into unbalanced RCA input

  • Inputs

    4x RCA phono (Unbal), 4x XLR 3 pin female (Bal)

  • Outputs

    4x XLR 3 pin male (Bal), 4x RCA phono (Unbal)

  • Mains Input

    Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max

  • Fuse Rating

    Anti-surge fuse 100mA 0.79 x 0.2" / 20 x 5mm (230VAC)
    Anti-surge fuse 250mA 0.79 x 0.2" / 20 x 5mm (115VAC)

  • Rack Height

    1U

  • Dimensions (W x D x H)

    19 x 4.3 x 1.7" / 48.26 x 10.92 x 4.32cm

  • Weight

    2.9lbs / 1.32kg

About Sonifex RB-BL4

The Sonifex RB-BL4 is a dual bi-directional stereo unit for interfacing domestic or semi-pro unbalanced equipment to professional balanced line levels and vice versa. The four XLR-3 electronically balanced inputs have an impedance of 20kOhms bridging and are routed to four unbalanced RCA (phono) outputs with an output impedance of <50Ohms.

The four RCA unbalanced inputs have an impedance of 20kOhms and are routed to four balanced XLR-3 outputs with an output impedance of <50Ohms. All connections are on the rear panel. The output gain can be adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sonifex Redbox RB-BL4 1U Dual Stereo Bi-Directional Matching Converter
  • Sonifex 1 Year Warranty
