Sonifex RB-HD2 Dual Stereo Headphone Amplifier
See all Sonifex items

Sonifex RB-HD2 Dual Stereo Headphone Amplifier, >20kOhm Input Impedance, +28dBu Input Level, 1U

SKU: SORBHD2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sonifex RB-HD2 Specifications

  • Input impedance

    >20kOhms balanced bridging (main)

  • Max Input Level

    +28dBu

  • Input Gain Range

    -12dB to +20dB gain (pre-set pots)

  • Output Level

    Drives 150mW into 32Ohms to 600Ohms headphones

  • Volume Controls

    -80dB to +11dB gain

  • Main Stereo Inputs

    2 x XLR 3 pin female (balanced, can be unbalanced)

  • Outputs

    2 x 1/4" (6.35mm) A-gauge 3-pole stereo jack sockets

  • Mains Input

    Filtered IEC, switchable 110-120V, or 220-240V, fused, 9W max

  • Fuse Rating

    Anti-surge fuse 100mA 20 x 5mm (230VAC)
    Anti-surge fuse 250mA 20 x 5mm (115VAC)

  • Dimensions (W x D x H)

    19 x 4.3 x 1.7" / 48.26 x 10.92 x 4.31cm
    1U

  • Weight

    3lbs / 1.36kg

About Sonifex RB-HD2

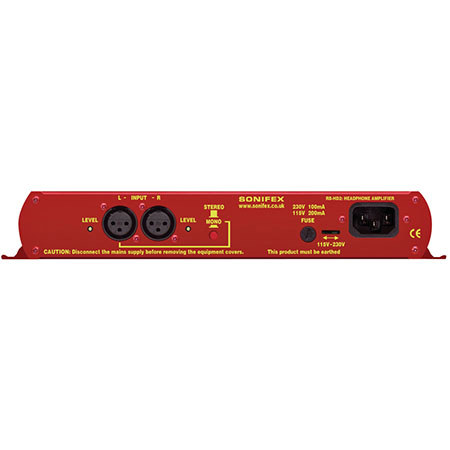

The Sonifex RB-HD2 is a high performance 2-way stereo headphone distribution amplifier for driving up to 2 pairs of professional stereo headphones from a single stereo or mono input. A switch on the rear panel enables the distribution of a mono signal to all four outputs (i.e. both earpieces of a pair of stereo headphones) via the left channel input. The stereo/mono switch is located on the rear panel to prevent accidental knocking.

The XLR-3 inputs are electronically balanced and can be wired unbalanced. There are two pre-set controls on the rear panel that adjust the level of the master input signal to the outputs. Each output is on a 1/4" stereo jack socket and is designed to drive 150mW into 32 ohm to 600 ohm stereo headphones. The outputs are individually buffered with their own front panel volume control. A LED power indicator on the front panel displays the power supply connection.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sonifex RB-HD2 Dual Stereo Headphone Amplifier
  • Sonifex 1 Year Warranty
