This item is no longer available.
This advanced camera is suitable for various environments such as e-sports venues, reality TV shows, classrooms, meeting spaces, and hospital operating rooms. Its compact size and easy installation make it ideal for multi-camera setups.
The camera features a sophisticated wide-angle lens that provides an expansive over-102-degree field of view (85 degrees with distortion correction), ensuring comprehensive coverage even from close range or tricky positions.
The SRG-XP1 camera offers multiple streaming outputs with HDMI, Ethernet, and USB 3.0 interfaces, providing greater operational flexibility.
The camera is equipped with a large 1/1.8-type Exmor R CMOS sensor, known for capturing smooth, detailed 4K 60p video with excellent low-light sensitivity.
Yes, the camera has full IP integration and includes support for Real Time Streaming Protocol (RTSP), Real Time Messaging Protocol (RTMP), and Secure Reliable Transport (SRT), with NDI |HX license included.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
3840 x2160/59.94p
3840 x2160/29.97p
1920 x1080/59.94p
1920 x1080/59.94i
1920 x1080/29.97p
1280 x720/59.94p
1280 x720/29.97p
640 x360/59.94p
640 x360/29.97p
3840 x2160/50p
3840 x2160/25p
1920 x1080/50p
1920 x1080/50i
1920 x1080/25p
1280 x720/50p
1280 x720/25p
640 x360/50p
640 x360/25p
640 x480/59.94p
Internal synchronization
1/1.8-type, CMOS image sensor
Number of effective pixels: Approx. 8.40 Megapixels
Single focus
f = 4.57mm, F1.7
f = 21mm (35mm camera equivalent)
300mm
0.5 lux (4K output, 50 IRE, 1/30s)
1/10000s to 1/1s
Terminal: HDMI connector (Type A) x1
Color space:
YUV, 4:2:2 8-bit
YUV, 4:2:0 8-bit
RGB, 4:4:4 8-bit
Terminal: USB connector (Type B) x 1
Standard: USB 3.0
Terminal: RJ45
Standards: IEEE802.3af
compatible (PoE)
Terminal: Mini jack 3.5 (Dia) (Plug-in-Power supported)
IEC60130-10 (JEITA standard RC-5320A) TYPE 4
White
DC 12 V (AC adapter 100 V to 240 V, 50/60 Hz), PoE (IEEE802.3af compatible)
For DC 12 V: 12.5 W
For PoE input: 12.9 W
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to +140 Degree F (-20 Degree C to +60 Degree C)
Less than +/-45 degrees to the horizontal
External: 2.87 x 2.12 x 4.87" (72.4 x 51.2 x 121.7mm) (excluding protrusions)
14 oz (0.41kg) (Approx.)

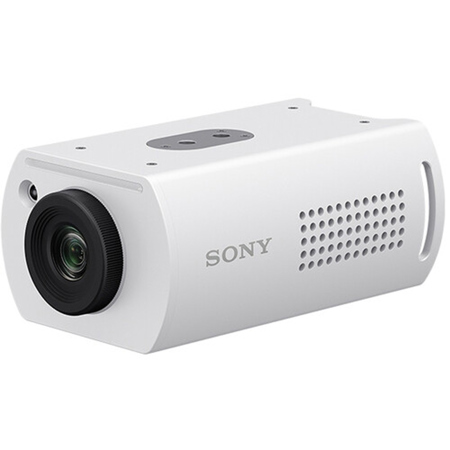

Become a part of the advanced world of 4K video production with the SRG-XP1 4K UltraHD NDI|HX Box-Style POV Camera. This high-tech device is perfect for live streaming in various environments such as e-sports venues, reality TV shows, classrooms, meeting spaces, and hospital operating rooms. Its compact size and easy installation make it an ideal choice for multi-camera setups without the need for dedicated camera operators.
This innovative camera can be installed on walls, ceilings, tripods, and shelves, making it a versatile solution for space-limited locations where installing large numbers of full-size cameras may be costly or impractical. The sophisticated wide-angle lens provides an expansive over-102-degree field of view (85 degrees with distortion correction), ensuring comprehensive coverage even from close range or tricky positions.
The SRG-XP1 camera is equipped with state-of-the-art features that simplify integration in today's IP networked production environments. It carries streaming video, power, and camera control signals over a standard Ethernet cable, reducing installation costs. The camera's robust and compact design, measuring just 2.85 x 2.02 x 4.79 inches and weighing 14 oz, allows for easy integration into any setting.
Experience the flexibility of multiple streaming outputs with HDMI, Ethernet, and USB 3.0 interfaces. The camera's full IP integration includes support for Real Time Streaming Protocol (RTSP), Real Time Messaging Protocol (RTMP), and Secure Reliable Transport (SRT), with NDI |HX license included.
Capture smooth, detailed 4K 60p video with the camera's large 1/1.8-type Exmor R CMOS sensor, known for its excellent low-light sensitivity. The camera-mounted tally light provides visual confirmation when the camera is active, while the audio input allows for the connection of an external microphone or line-level source.
With the SRG-XP1 4K UltraHD NDI|HX Box-Style POV Camera, you can capture high-quality video and live stream with ease, making it a valuable addition to any production setup.
