Sonifex Reference Monitor 1 Stereo 53 Segment Meter with Rack-Mount
SKU: SORMM1R53
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Sonifex Reference Monitor 1 Stereo 53 Segment Meter with Rack-Mount Specifications
Audio Inputs
1x stereo analogue or AES/EBU digital (auto-selecting)
Max level (0dB input gain)
+18dBu (analogue)/0dBFS digital
CMRR
> 60dB typical
Input Impedance
20kOhms (analogue) 110Ohms (digital with termination switchable via DIPswitch)
AES/EBU Sample Rate
32 to 192kHz, converted internally to 48kHz
Input Gain
0, +6, +12 or +18dB digital gain (switchable via DIPswitch)
Level Metering: Number
1x 53-segment tri-color LED bargraphs
Level Metering: Characteristics
Selectable by DIPswitch from:
Dual BBC PPM + standard VU
BBC PPM - IEC60268-10 11a
EBU PPM - IEC60268-10 11b
Nordic PPM - IEC60268-10
AES/EBU digital PPM - IEC60268-18
DIN PPM - DIN45406
Standard VU - IEC60268-17
Extended VU - IEC60268-17Level Metering: Ballistics
According to selected characteristic
Level Metering: Line-Up Level
According to selected characteristic
Phase Metering: Type
5-segment, indication at 0, 45, 90, 135 and 180 degrees, 1 per stereo meter
Remote Control: Serial
RS232, 19200 baud, 3-wire connection
Remote Control: Alarm Outputs 1
(1-4 single input units, 1-8 twin units)
Audio input 1 under-level/fail (latching)
Audio input 1 over-level (latching)
Audio input 1 sustained phase error above 90 degrees (latching)
AES/EBU input 1 unlock (non-latching)
Audio input 2 under-level/fail (latching)
Audio input 2 over-level (latching)Remote Control: Alarm Outputs 2
Audio input 2 sustained phase error above 90 degrees (latching)
AES/EBU input 2 unlock (non-latching)
Open-collector outputs rated at 30V, 50mA maximum
Output low/conducting in normal condition (no alarm)Remote Control: Control Inputs
(1 single input units, 2 twin units)
Input 1 Alarm reset
Input 2 Alarm reset
Pull-to-ground to activate inputsStatus Indicators: AES Lock
Indicates lock achieved on digital input
Status Indicators: Level Alarm
Indicates audio over-level

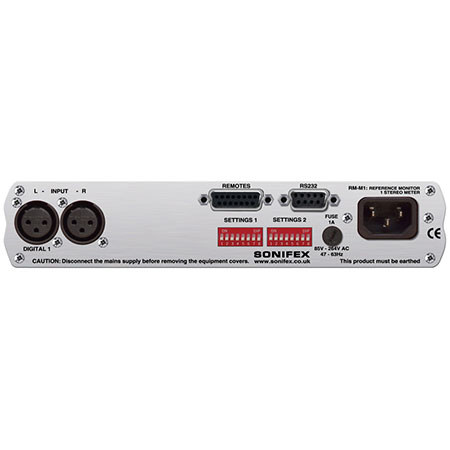

Connectors: Audio Inputs
2x XLR 3-pin female (All balanced, but may be wired unbal)
Connectors: Serial
D-sub 9-pin female
Connectors: Remote I/O
D-sub 15-pin female
Connectors: Mains Input
Filtered 3-pin IEC male, continuously rated 85 - 264VAC, 47 - 63Hz, fused 1A, 30W peak, 15W average
Dimensions (W x D x H)
19 x 5.8 x 1.73" / 48.26 x 14.73 x 4.39cm
Weight
2.9lbs / 1.31kg
About Sonifex Reference Monitor 1 Stereo 53 Segment Meter with Rack-Mount
The Sonifex RM-M1R53 is a rack-mount, single stereo channel meter with bright, multi-colored 53-segment bargraph meters. This product has settings that can be adjusted using the Sonifex SCi (Serial Control Interface) software.
