Sonifex RM-MC51L 5.1 Stereo Input and 1 Output Reference Monitor Controller
See all Sonifex items

Sonifex RM-MC51L 5.1 Stereo Input and 1 Output Reference Monitor Controller with Light Control, <50Ohms Output Impedance

SKU: SORMMC51L
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sonifex RM-MC51L Specifications

  • Input Impedance

    >20kOhms

  • Maximum Input Level

    +25dBu

  • Output Impedance

    <50 Ohms

  • Maximum Output Level

    +25dBu

  • Attenuation Range

    >86dB

  • DIM Attenuation Range

    Adjustable -3dB to -23dB via rear panel potentiometer

  • Common Mode Rejection

    >66dB typical

  • Distortion

    <0.04% ref +8dBu

  • Crosstalk

    <-80dB at 1kHz input, ref 0dBu

  • Light Control (All units)

    Transmit (TX), Standby & Rehearse (REH) illuminated buttons

  • Audio Controls

    Dim & Cut illuminated buttons

  • Volume Control

    Rotary potentiometer for output attenuation on front panel

  • Audio Inputs

    6 x XLR 3-pin female (balanced)

  • Audio Outputs

    6 x XLR 3-pin female (balanced)

  • Remote I/O Port

    15 way D-type socket

  • Mains Input

    Filtered 3-pin IEC male, continuously rated 85-264VAC, 47-63Hz, fused

  • Power Consumption

    Peak 10W, average 7W

  • Fuse Rating

    Anti-surge fuse 1A, 20 x 5mm

  • Rack Height

    1U

  • Dimensions (W x H x D)

    48 x 10.8 x 4.3cm / 18.89 x 4.25 x 1.69"

  • Weight

    1.3kg / 2.86lbs

About Sonifex RM-MC51L

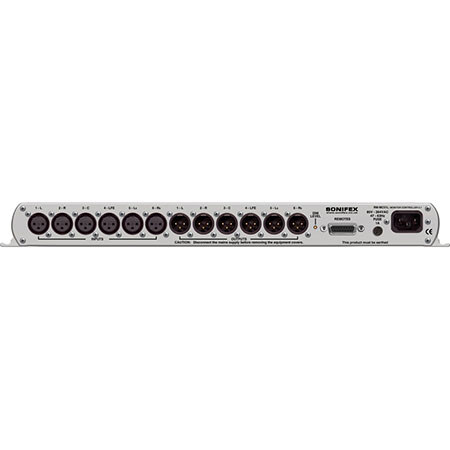

The Sonifex RM-MC51L is a controller for surround sound applications with 6 balanced analogue inputs and 6 balanced analogue outputs all on XLR connectors. It is used in situations where you need to adjust the volume or CUT or DIM all of the speakers in a 5.1 surround system. Alternatively, the unit can be used as a global volume control for 6 analogue outputs. The RM-MC51L has the same master volume control, CUT, DIM and light control functions and adjustments as the RM-MC1L unit.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sonifex RM-MC51L 5.1 Stereo Input and 1 Output Reference Monitor Controller With Light Control
  • Sonifex 1 Year Warranty
