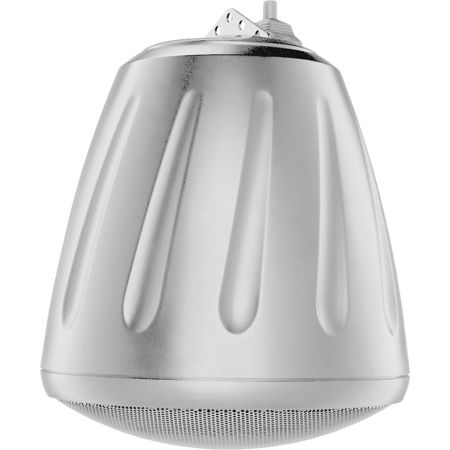

SoundTube RS500I 5.25" Coaxial Open-Ceiling Hanging Speaker with a BroadBeam, 75W RMS, White, Single

SKU: SORS500IWH MFR: RS500I-WH
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this SoundTube open-ceiling hanging speaker.
  • Enjoy wide sound dispersion thanks to the BroadBeam technology in these speakers.
  • This speaker is ideal for commercial spaces needing excellent audio coverage.
  • The durable design ensures long-lasting performance, even in demanding environments.
  • Its sleek, white finish seamlessly integrates into any interior aesthetic design.
  • Easy to install with included hardware, this speaker simplifies your setup process.
See More Product Details
Special Order?Estimated to Ship: 09/04/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$18.99

2 Year

$31.99

3 Year

$54.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube RS500I Specifications

  • System Type

    5.25", coaxial, open-ceiling, ported (33-watt transformer for 25/70.7/100-volt or transformer bypass applications)

  • Impedance

    8 Ohms (nominal)

  • Sensitivity

    At 2.38 V/1m: 86.5dB
    At 1 W/1m: 86.5dB

  • Frequency Response

    87 Hz - 22 kHz (-3dB)
    61 Hz - 22 kHz (-10dB)

  • Max. Program Power

    150Watts

  • Max. Continuous Power RMS

    75W

  • Max. UL Power Rating

    50 watts

  • Max. SPL

    At 1 m: 105.5dB

  • Coverage Angle

    75 deg. (-6dB At 2kHz)
    105 deg. (-6dB At 10kHz)
    95 deg. (averaged 2-10kHz)

  • Directivity Factor (Q)

    4.80 (Averaged 100 Hz - 10 kHz); 12.30 At 2 kHz

  • Directivity Index (DI)

    5.40dB (Averaged 100 Hz - 10 kHz); 10.9dB At 2 kHz

  • Tap Selector

    Six-position rotary switch with transformer bypass

  • Transducer

    1 x 133mm (5.24") polypropylene cone, butyl rubber surround

  • Low-Frequency Driver

    133mm (5.24") convex titanium tweeter with waveguide

  • High-Frequency Driver

    25mm (0.98")

  • Low-Frequency Voice Coil

    25.4mm (1.00")

  • Crossover Frequency

    3kHz

  • Network Type

    12dB per octave, 2nd order (Low-Pass)
    12dB per octave, 2nd order (High-Pass)

  • Enclosure Material

    Injection-molded ABS, glass fiber reinforced

  • Motor Board

    Cast aluminum

  • Grille

    Iridite-plated steel with powder-coat finish

  • Inputs

    Four-pin, 5.08mm (0.20") Euroblock for individual or daisy chain connection

  • Regulatory

    UL 1480 (UEAY) and 2239 approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    245.9 x 298.2mm (9.68 x 11.74")

  • Weight

    4.3kg (9.5 lbs)

  • UPC Code

    644216202201

About SoundTube RS500I

Take your auditory experience to new heights with the SoundTube RS500i, a modern and sleek 5.25" coaxial open-ceiling hanging speaker that boasts a stylish and elegant design. This high-tech audio solution is engineered to deliver an effective low-end response starting at 61 Hz and exceptional off-axis performance, with a 105-degree dispersion pattern from 2 to 10 kHz, independently verified for accuracy.

The RS500i's proprietary BroadBeam waveguide tweeter system ensures consistent, high-performance audio coverage throughout its operating bandwidth, making every note clear and precise. The speaker's design is not only visually appealing but also functional, featuring a low-profile grille that blends seamlessly into any environment. The proprietary motor-board enhances the speaker's audio fidelity, while the six-position tap switch with a transformer bypass position offers versatile power options to suit your specific needs.

Installation is a breeze with the included hanging hardware, which utilizes the Speed Clamp self-locking wire grip for a fast, secure, and effortless setup. Whether you're looking to enhance the ambiance in retail spaces, grocery stores, restaurants, hotels, casinos, museums, trade shows, or conference rooms, the RS500i is designed for both indoor and outdoor background to mid-level SPL applications.

With a broad dispersion pattern and high sensitivity of 86.5 dB 1 W/1 m, the RS500i speaker is ideal for delivering both music and paging applications with clarity and reach. For those seeking an even richer bass experience, the SoundTube RS1001i-II-T 10" subwoofer can be paired with the RS500i to extend the bass response down to 38 Hz, ensuring a full-spectrum audio experience.

Choose the SoundTube RS500i for its reputable brand heritage and unique ceiling-hanging design, and elevate your space with a speaker that is as visually captivating as it is acoustically impressive.

SoundTube RS500I Features

  • Patented BroadBeam waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker (EASE documented)
  • One 5.25 inch (133 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with Ferro Fluid cooling mounted to a proprietary cast aluminum baffle and heat sink
  • Weatherized components for indoor and outdoor applications
  • Includes UL listed hanging hardware with cables and integrated Speed Clamp self-locking wire grip for fast, easy and secure installation. Also includes Euro-block connector and terminal weather boot
  • Patented technology for optimal sound reproduction and cabinet rigidity
  • Easy-access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking
  • Plated steel grille with protective powder coated finish for lasting durability
  • Average sensitivity 86.5dB offers high output capabilities and reduced amplification costs
  • UL 1480 (UEAY), CE and Mil Spec 810 approved
  • High-quality white paint finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with this SoundTube open-ceiling hanging speaker.
  • Enjoy wide sound dispersion thanks to the BroadBeam technology in these speakers.
  • This speaker is ideal for commercial spaces needing excellent audio coverage.
  • The durable design ensures long-lasting performance, even in demanding environments.
  • Its sleek, white finish seamlessly integrates into any interior aesthetic design.
  • Easy to install with included hardware, this speaker simplifies your setup process.

What's in the box:

  • SoundTube RS500I 5.25 " Coaxial Open-Ceiling Hanging Speaker
  • Hanging Hardware
  • Euroblock Connector
  • Terminal Weather Boot
  • SoundTube 5 Year Limited Warranty
