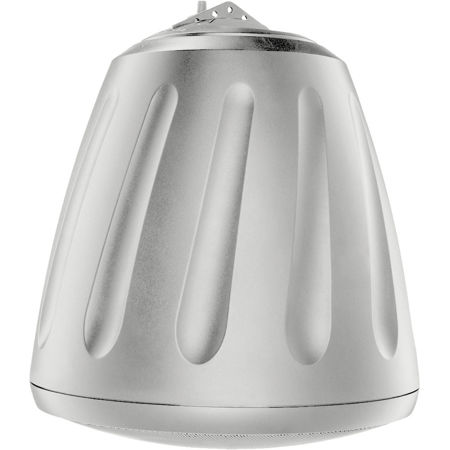

SoundTube RS800I 8" Coaxial Open-Ceiling Hanging Speaker with a BroadBeam, 125W RMS, White, Single

SKU: SORS800IWH MFR: RS800I-WH
Earn VIP Reward Points

Key Features

  • Experience superior audio with this 8" SoundTube hanging speaker, perfect for open ceilings.
  • Enjoy wide sound dispersion with BroadBeam technology, ensuring consistent coverage throughout the room.
  • This coaxial speaker delivers 125W RMS power, providing clear and powerful sound for any environment.
  • The white finish of this pendant speaker blends seamlessly into any decor, offering aesthetic appeal.
  • With a frequency response of 80 Hz - 22 kHz, this speaker accurately reproduces a wide range of sounds.
  • Easy to install with included hanging hardware and Euroblock connector for quick setup and secure connection.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube RS800I Specifications

  • System Type

    8" coaxial, open-ceiling, ported (66-watt transformer for 25/70.7/100-volt or transformer bypass applications)

  • Impedance

    8 Ohms (nominal)

  • Sensitivity

    89.5dB (At 2.83 V / 1 m)
    89.5dB (At 1 W / 1 m)

  • Frequency Response

    80 Hz - 22 kHz ( - 3dB)
    58 Hz - 22 kHz ( - 10dB)

  • Max. Program Power

    250W

  • Max. Continuous Power RMS

    125W

  • Max. Power SPL

    At 1 m: 110.5dB

  • Coverage Angle

    100 deg. (-6dB At 2kHz)
    115 deg. (-6dB At 10kHz)
    105 deg. (averaged 2-10kHz)

  • Directivity Factor (Q)

    4.7 (averaged 100 Hz - 10 kHz); 5.5 (2 kHz)

  • Directivity Index (DI)

    5.8 (averaged 100 Hz - 10 kHz); 7.4dB (2 kHz)

  • Tap Selector

    Six-position rotary switch with transformer bypass

  • Transducer

    Low-Frequency Driver: 203mm (7.9") Polypropylene cone, butyl rubber surround
    High-Frequency Driver: 25mm (1.0") Convex titanium tweeter with waveguide

  • Low-Frequency Voice Coil

    30.4mm (1.2")

  • Crossover Frequency

    3.0kHz

  • Network Type

    12dB per octave, 2nd order (Low Pass)
    12dB per octave, 2nd order (High Pass)

  • Enclosure Material

    Injection molded ABS, glass fiber reinforced

  • Grille

    Steel with powder-coat finish

  • Inputs

    Four-pin, 5.08mm (0.20") Euroblock for individual or daisy chain connection

  • Regulatory

    Surface-mount bracket (AC-RS-SM8) (UL)
    UL 1480 (UEAY) and 2239 (hanging cable) approved
    CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    376.4 x 437.6mm (14.82 x 17.23")

  • Weight

    9.3kg (20.5 lbs)

  • UPC Code

    644216202409

About SoundTube RS800I

The RS800i is an 8", two-way, ported speaker with an open-ceiling enclosure design that delivers extended low-end response (58 Hz) and 105 deg. off axis performance (2 to 10 kHz, independently verified). SoundTube's proprietary BroadBeam waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The RS800i speaker design incorporates a low-profile grille, a proprietary motorboard, driver protection circuitry and a six-position tap switch with a transformer bypass position. Hanging hardware is included and features a Speed Clamp self-locking cable grip for fast, easy and secure installation.

Applications
Designed for indoor and outdoor background to mid-level SPL applications, the RS800i includes a single-point mounting system for rapid open-ceiling installations and has an optional bracket for surface-mount applications. The broad dispersion pattern (105 deg. ), true low-end response (58 Hz, -10 dB) and high sensitivity (89.5 dB 1 W/1 m) make the RS800i speaker ideal for big box stores, fitness centers, sports bars, multipurpose rooms, churches, airports, theme parks, ballrooms, convention centers, casinos and other open-ceiling applications. For applications where additional bass is required, SoundTube's RS1001i-II-T 10" subwoofer may be used with bass down to 38 Hz.

SoundTube RS800I Features

  • Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (up to 10 kHz, independently verified)
  • One 8.0 inch (203 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with Ferro Fluid cooling mounted to a proprietary cast aluminum baffle and heat sink
  • Weatherized components for indoor and outdoor applications
  • Includes UL listed hanging hardware with galvanized steel cables and integrated Speed Clamp self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot
  • Patented technology for optimal sound reproduction and cabinet rigidity
  • Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking
  • Steel grille with protective powder coated finish for lasting durability
  • Average sensitivity of 89.5dB offers high-output capabilities and reduced amplification costs
  • UL 1480 (UEAY), CE and Mil Spec 810 approved
  • High-quality white paint finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this 8" SoundTube hanging speaker, perfect for open ceilings.
  • Enjoy wide sound dispersion with BroadBeam technology, ensuring consistent coverage throughout the room.
  • This coaxial speaker delivers 125W RMS power, providing clear and powerful sound for any environment.
  • The white finish of this pendant speaker blends seamlessly into any decor, offering aesthetic appeal.
  • With a frequency response of 80 Hz - 22 kHz, this speaker accurately reproduces a wide range of sounds.
  • Easy to install with included hanging hardware and Euroblock connector for quick setup and secure connection.

What's in the box:

  • SoundTube RS800I 8 " Coaxial Open-Ceiling Hanging Speaker
  • Hanging Hardware
  • Euroblock Connector
  • Terminal Weather Boot
  • SoundTube 5 Year Limited Warranty
