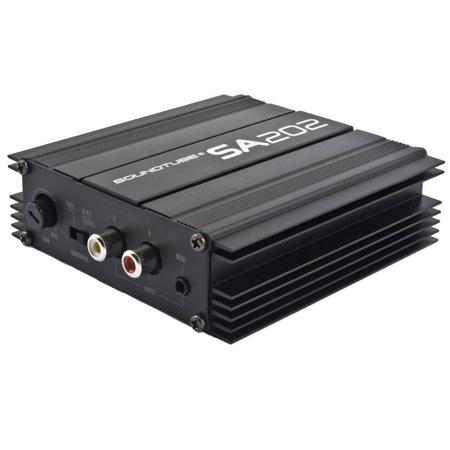

SoundTube SA202 Class AB Mini Amplifier
SKU: SOSA202
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
About SoundTube SA202
The SA202 is 20-watt per channel (4 Ohms) Class AB amplifier with maximum gain of 35dB. Input options include dual RCA jacks and a stereo mini jack for line-level audio sources and a speaker-level (amplified) input for applications with low-wattage speaker outputs (e.g., AV projector to external speakers). Mounting hardware is included and adapts to pole, surface or security attachment installations.
Applications
Small and cost-effective, the SA202 is engineered for external amplification with SoundTube FP sound-focusing and other high-fidelity speakers. Additional applications include digital signage, education, point of purchase, museums, surgical centers, AV carts or any application where a small amplifier is needed to boost a limited source output (e.g., computers, A/V projectors, etc.).
SoundTube SA202 Features
- 35dB maximum gain with 2 x 20 watt output
- Dual RCA, stereo mini jack and high-level inputs
- High pass filter at 120Hz (12dB per octave) to reduce bass distortion in smaller speakers
- Aluminum housing with integrated heat sink
- Power inputs include either three-pin Euroblock or barrel connector
- 12-volt trigger for automatic on/off functions when source power is detected
