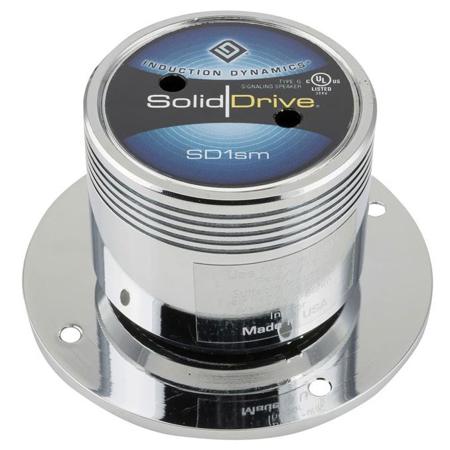

SolidDrive SD-1 Wood Surface Mount Actuator, Chrome

SKU: SOSD1SMCR MFR: SD-1SM-CR
Earn VIP Reward Points

Key Features

  • Enhance your sound with the SolidDrive SD-1 actuator, designed for easy surface mounting.
  • Experience superior sound quality with this chrome SolidDrive, boasting robust durability.
  • Achieve discreet audio with this compact actuator; dimensions are 2.3 x 2.06 inches.
  • Enjoy wide sound coverage; the SolidDrive offers a 120-degree angle at 2kHz.
  • This SolidDrive actuator is safety-certified with CE, RoHS, and UL standards.
  • Get powerful audio; the SolidDrive SD-1 handles up to 100W program power.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$54.99

2 Year

$94.99

3 Year

$139.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SolidDrive SD-1 Specifications

  • Color

    Chrome

  • Category

    The Original SolidDrive

  • Certifications

    CE
    RoHS
    UL1480A
    UL2043

  • Enclosure Properties

    Anodized Aluminum

  • Source Inputs

    Wire Leads

  • Coverage Angle (-6dB @ 2kHz)

    120 Degree

  • Frequency Response

    +/- 10 dB: 60 Hz - 15 kHz Nominal without EQ
    +/- 3 dB: 80 Hz - 10 kHz Nominal without EQ

  • Magnetically Boosted

    No

  • Max. Continuous Power RMS

    30 W

  • Max. Program Power

    100 W with 100 Hz 12 dB octave high-pass

  • Impedance

    Minimum: 8 Ohm
    Nominal: 8 Ohm

  • Sensitivity dB @ 1W/1M

    73.5 dB

  • Sensitivity dB @ 2.83V/1M

    70 - 75 dB

  • Dimensions (Diameter x H)

    2.3 x 2.06" (58.42 x 52.32mm)

  • Weight

    1.2 lbs (0.54kg)

  • UPC Code

    644216214808

Related Articles & Videos

Weekend Wrap For July 8, 2011

Weekend Wrap For July 8, 2011

In recent weeks, with the introduction of the Pentax Q, the third generation of the Read more

About SolidDrive SD-1

Be captivated by the immersive audio experience delivered by the SolidDrive SD-1 Wood Surface Mount Actuator, finished in anodized black. This innovative device is expertly designed to attach to wood and similar surfaces using the included wood screws, transforming each surface into a unique audio channel.

The SD-1 Surface Mount Actuator is equipped with an optional equalization module, specifically designed to optimize its performance on wood surfaces. This feature ensures that the audio output is tailored to the specific acoustics of the wood, enhancing the overall sound quality.

At the heart of the SolidDrive SD-1 is a patent-pending dual-voice coil technology housed in a robust aluminum enclosure. This advanced technology, combined with high-powered neodymium magnets and dual symmetrically opposed motors, converts audio signals into powerful vibrations. These vibrations are then transferred directly into solid surfaces, creating a unique sound propagation method.

The SD-1 Surface Mount Actuator is capable of radiating high-quality, full-range sound from the entire surface it's attached to. With a frequency response of 60 Hz to 15 kHz, it ensures that you enjoy every note in its full richness and depth.

The strategic use of symmetrically opposed neodymium magnets and specifically engineered mounting hardware results in hidden planar-source acoustics. This innovative design approach ensures acoustical uniformity throughout the listening space, providing you with an unparalleled audio experience.

In essence, the SolidDrive SD-1 Wood Surface Mount Actuator in Chrome is not just a device, but a revolution in sound technology, transforming ordinary surfaces into extraordinary sound systems.

SolidDrive SD-1 Features

  • SolidDrive is a patent-pending technol-ogy that utilizes neodymium magnets and dual symmetrically opposed motors to convert audio signals into acoustical energy in a wide variety of substrates.
  • With direct contact to glass, drywall and tabletops, SolidDrive units radiate full-range sound across the entire surface
  • Full-frequency sound can be delivered from 60 Hz - 15 kHz with a max SPL of 88.8 dB and a coverage angle greater than 120 Degree (60 Hz - 3 kHz)
  • Capable of handling 5 - 100 Watts, Solid-Drive units can deliver single to multi-channel audio for home theater, home audio and commercial audio application
  • Patent pending balanced cantilever spring bracket for behind-wall mount-ing allows for a completely hidden speaker system in drywall applications
  • For extended system performance, active and passive subwoofers are available
  • SolidDrives operate in a virtually friction-free environment and are engineered for infinite life

Key Features

  • Enhance your sound with the SolidDrive SD-1 actuator, designed for easy surface mounting.
  • Experience superior sound quality with this chrome SolidDrive, boasting robust durability.
  • Achieve discreet audio with this compact actuator; dimensions are 2.3 x 2.06 inches.
  • Enjoy wide sound coverage; the SolidDrive offers a 120-degree angle at 2kHz.
  • This SolidDrive actuator is safety-certified with CE, RoHS, and UL standards.
  • Get powerful audio; the SolidDrive SD-1 handles up to 100W program power.

What's in the box:

  • SD-1 Wood Surface Mount Actuator
  • Mounting Hardware
  • SolidDrive 7 Year Limited Warranty
