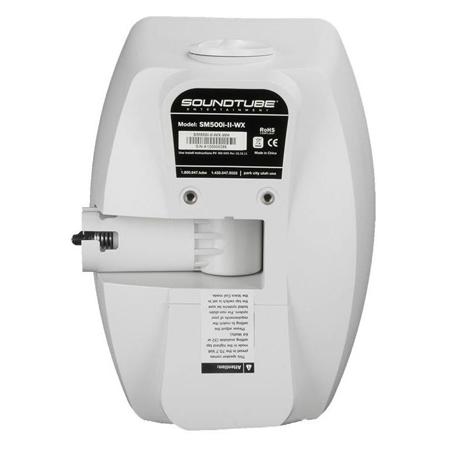

SoundTube SM500i-II 5.25" Outdoor Surface Mount Speaker, 75W RMS, White, Single

SKU: SOSM500IIIWH

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

SoundTube SM500I-II Specifications

  • System Type

    5.25", coaxial, surface-mount, ported (64W transformer for 25/70.7/100V or transformer bypass)

  • Impedance

    4 Ohms (Nominal)

  • Sensitivity

    At 2.83V/1M: 86.0 dB
    At 1W/1M: 83.0 dB

  • Frequency Response

    86 Hz - 22 kHz (-3 dB)
    60 Hz - 22 kHz (-10 dB)

  • Max. Program Power

    150W

  • Max. Continuous Power RMS

    75W

  • Max. SPL

    At 1m: 102 dB

  • Coverage Angle

    75 deg. horizontal / 90 deg. vertical (-6 dB at 2 kHz)
    120 deg. horizontal / 125 deg. vertical (-6 dB at 10 kHz)
    100 deg. horizontal / 100 deg. vertical (Avg. 2 to 10 kHz)

  • Aiming Angle

    360 deg. (radial)
    0 - 90 deg. (horizontal)

  • Directivity Factor (Q)

    4.6dB (Averaged 100 Hz - 10 kHz); 9.8dB at 2 kHz

  • Directivity Index (DI)

    5.6 dB (Averaged 100 Hz - 10 kHz); 9.9 dB at 2 kHz

  • Tap Selector

    Six-position rotary switch with transformer bypass

  • Frequency Driver

    Low-Frequency Driver: 133mm (5.25") polypropylene cone, butyl rubber surround
    High-Frequency Driver: 25mm (1.0") convex titanium tweeter with waveguide

  • Low Frequency Voice Coil

    25mm (1.0")

  • Crossover Frequency

    3 kHz

  • Network Type

    Low-Pass: 12 dB per octave, 2nd order
    High-Pass: 12 dB per octave, 2nd order

  • Enclosure Material

    Injection-molded ABS, glass fiber reinforced

  • Grille

    Aluminum with powder-coat finish

  • Inputs

    Four-pin, 5.08mm Euroblock for individual or daisy chain connection

  • Regulatory

    1480 (UEAY) planned; CE Approved

  • RoHS

    Approved

  • Dimensions (HxWxD)

    Including Bracket: 289.56 x 212.26 x 266.30mm (11.40 x 8.36 x 10.48")

  • Weight

    4.3kg (9.5 lbs)

About SoundTube SM500I-II

The SM500i-II is a 5.25", two-way surface-mount speaker with a midsize enclosure design that delivers effective low-end response (60 Hz) and optimal off-axis performance (2 to 10 kHz). SoundTube's proprietary BroadBeam waveguide tweeter system delivers consistent high-performance audio across operating bandwidth. The SM500i-II speaker design incorporates a low-profile grille, six-position tap switch with transformer bypass and mounting hardware, including the Stealth bracket mounting system. The SM500i-II incorporates a security knob to reduce tampering after placement, unlimited directional aiming and a low profile

Applications
Designed for indoor and damp outdoor (SM500i-II-WX available for severe weather installations) background to mid-level SPL surface mount applications, the SM500i-II includes the new Stealth bracket mounting system, allowing for an increased aiming angle. The system includes a detachable mounting plate designed for premounting in either wall or pole applications. The full frequency dispersion pattern and high sensitivity make the SM500i-II surface mount speaker ideal for music and paging in retail, amusement, restaurant, airports, hotels, schools and casinos. For applications where additional bass is required, SoundTube's RS1001i-II-T and SM1001p subwoofers provide bass down to 41 Hz (-10 dB).

SoundTube SM500I-II Features

  • BroadBeam waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker
  • One 5.25" (133mm) polypropylene woofer and one 1.0" (25mm) convex titanium tweeter with FerroFluid cooling
  • 86.0 dB average sensitivity offers high output capabilities and reduced amplification costs
  • Includes stainless steel screws and weatherized components for indoor and outdoor applications (SM500i-II-WX available for severe weather installations)
  • Easy access, six-position selectable tap switch for 25-, 70.7- and 100V applications with transformer bypass position
  • Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity
  • Aluminum grille with powder-coat finis
  • Includes the new SM500i-II Stealth bracket mounting system
  • Vertical and horizontal pivoting allow the SM500i-II to be aimed anywhere within the installation space
  • Low profile enclosure design keeps the speaker close to the wall
  • UL 1480 (UEAY) planned
  • High-quality white paint finish

What's in the box:

  • SoundTube SM500i-II 5.25 " Outdoor Surface Mount Speaker
  • Safety Cable with Speaker Mounting Bolt
  • Euroblock Connector
  • Wall Mount Bracket
  • Terminal Weather Boot
  • SoundTube 5 Year Limited Warranty
