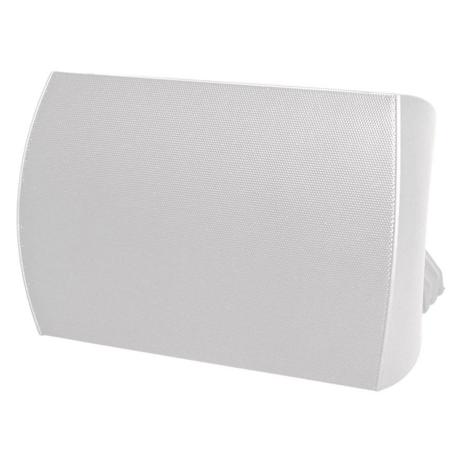

SoundTube SM82-EZ-II 8" Outdoor Surface Mount Speaker, 75W RMS, White, Single

SKU: SOSM82EZIIWH MFR: SM82-EZ-II-WH
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this SoundTube outdoor speaker, perfect for patios.
  • Enjoy versatile connectivity options; this surface mount speaker works with most systems.
  • Built for durability, the SoundTube SM82-EZ-II withstands weather for lasting outdoor use.
  • Simple setup with included bracket makes this outdoor speaker easy to install on any surface.
  • Get powerful audio at an affordable price; this speaker offers great value for home theaters.
  • This weather-resistant speaker delivers clear audio, enhancing your outdoor entertainment experience.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$21.99

2 Year

$35.99

3 Year

$64.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube SM82-EZ-II Specifications

  • System Type

    8" coax, surface-mount, ported (64W transformer for 25/70.7/100V or transformer bypass applications)

  • Impedance

    8 Ohms (nominal)

  • Sensitivity

    At 2.83 V/1m: 87.0 dB
    At 1W/1m: 87.0 dB

  • Frequency Response

    50 Hz - 20 kHz ( - 3 dB)
    38 Hz - 22 kHz ( - 10 dB)

  • Max. Program Power

    150W

  • Max. Continuous Power RMS

    75W

  • Max. Power SPL

    At 1m: 106.0 dB

  • Coverage Angle

    70 deg. Horizontal / 90 deg. Vertical (-6 dB at 2 kHz)
    110 deg. Horizontal / 100 deg. vertical (-6 dB at 10 kHz)
    90 deg. horizontal / 105 deg. vertical (averaged 2-10 kHz)

  • Aiming Angle

    0 deg. -90 deg.

  • Directivity Factor (Q)

    5.2dB (Averaged 100 Hz - 10 kHz); 12dB at 2 kHz

  • Directivity Index (DI)

    6.20dB ( Averaged 100 Hz - 10 kHz); 10.8dB at 2 kHz

  • Tap Selector

    Six-position rotary switch with transformer bypass

  • Transducer

    Low-Frequency Driver: 203.0mm (8.0") polypropylene woofer with butyl rubber surround
    High-Frequency Driver: 25.0mm (1.0") soft dome tweeter

  • Low Frequency Voice Coil

    38.1mm (1.50 in) high temperature Kapton

  • Crossover Frequency

    2.5 kHz

  • Network Type

    Low Pass: 12 dB per octave, 2nd order
    High Pass: 12 dB per octave, 2nd order

  • Enclosure Material

    High Impact Poly Styrene (HIPS)

  • Grille

    Aluminum with powder-coat finish

  • Inputs

    4 position ceramic terminal strip

  • Regulatory

    UL 1480A planned; CE Approved

  • EN54-24

    Planned

  • RoHS

    Approved

  • IP65

    Approved

  • Dimensions (HxWxD)

    457.2 x 292.1 x 251.4mm (18.00 x 11.50 x 9.90")

  • Weight

    7.1kg (15.4 lbs)

  • UPC Code

    748252172075

About SoundTube SM82-EZ-II

The SM82-EZ-II is a cost-effective, high efficiency surface-mount loudspeaker for distributed or 8 Ohms applications. The SM82-EZ-II incorporates a dedicated 8" polypropylene woofer and an offset 1" soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 106.0 dB max. SPL). The SM82-EZ-II uses a 64W low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Mounting for the SM82-EZ-II includes a premountable U-bracket for fast, secure installation and easy division of labor.

Applications
Engineered for cost-conscious applications requiring true intelligibility, quality low-frequency response and quick installation, the versatile SM82-EZ-II delivers smooth and even coverage ideal for casinos, convention centers, gyms, nightclubs, aerobic rooms, airports, super stores, arenas, theme parks, transportation hubs, shipping centers and stadiums. For additional low-end response down to 41 Hz (-10 dB) the powered SM1001p may be incorporated.

SoundTube SM82-EZ-II Features

  • The SM82-EZ-II is a cost-conscious, weather-resistant, surface-mount loudspeaker
  • BroadBeam Ring technology for midrange clarity and ultra wide off axis performance up to 10 kHz for maximum coverage area per speaker
  • One 8.00" (203mm) polypropylene woofer and one 1.0" (25.4mm) soft dome tweeter
  • IP65 rated (when included port plug is installed) for high dust- and water-resistance
  • 87.0 dB average sensitivity offers high output capabilities and reduced amplification costs
  • Easy access, six-position selectable tap switch for 25-, 70.7- and 100V applications with transformer bypass position
  • Aluminum grille with powder-coat finish
  • Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications
  • UL 1480 (UEAY) and EN54-24 planned
  • High-quality white paint finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with this SoundTube outdoor speaker, perfect for patios.
  • Enjoy versatile connectivity options; this surface mount speaker works with most systems.
  • Built for durability, the SoundTube SM82-EZ-II withstands weather for lasting outdoor use.
  • Simple setup with included bracket makes this outdoor speaker easy to install on any surface.
  • Get powerful audio at an affordable price; this speaker offers great value for home theaters.
  • This weather-resistant speaker delivers clear audio, enhancing your outdoor entertainment experience.

What's in the box:

  • SoundTube SM82-EZ-II 8 " Outdoor Surface Mount Speaker
  • Safety Cable
  • Wall Mount Bracket
  • Port Plug
  • Allen Wrench
  • Watertight Strain-Relief Bushing
  • SoundTube 5 Year Limited Warranty
