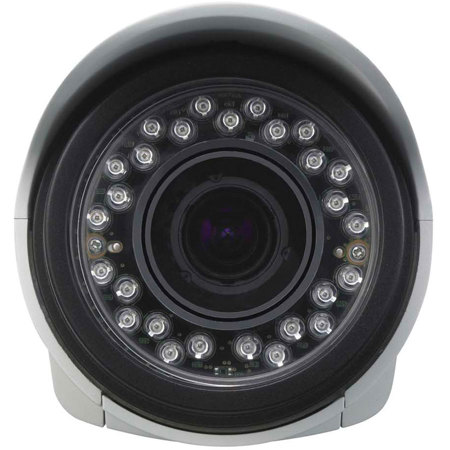

Sony SNC-CH160 1.3MP Day/Night Indoor/Outdoor 720p HD IP Network Bullet Camera
See all Sony items

Sony SNC-CH160 1.3MP Day/Night Indoor/Outdoor 720p HD IP Network Bullet Camera with IR Illuminator, 30fps, JPEG, MPEG-4, H.264, Dual Streaming, PoE

SKU: SOSNCCH160
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SNC-CH160 Specifications

  • Image device

    1/3 type progressive scan Exmor CMOS sensor

  • Minimum illumination

    0.50 lx (Color), 0 lx (BW) (IR ON)
    (F1.2/AGC 42dB/50IRE [IP])

  • Dynamic Range

    Better than 60dB

  • No. of effective pixels (H x V)

    1.4 Megapixel
    (1329 x 1049)

  • Electronic shutter speed

    1 s to 1/10000 s

  • Gain control

    Auto

  • Exposure control

    Auto, EV Compensation, Auto Slow Shutter

  • White balance mode

    Auto (ATW, ATW-PRO), Preset, One-push WB, Manual

  • Lens type

    Vari focal lens

  • Zoom ratio

    Optical 2.9X

  • Horizontal viewing angle

    85.4 to 31.2 deg.

  • Focal length

    f= 3.1 to 8.9mm

  • F-number

    F1.2 (Wide), F2.1 (Tele)

  • Minimum object distance

    300mm / 11.81"

  • Powered focus

    Yes (Easy Focus)

  • Powered zoom

    Yes (Easy Zoom)

  • IR illuminators

    Yes (Wave Length: 850nm (Typical), IR LED: 21pcs)

  • IR working distance

    82' / 25m (50 IRE)

  • Day / Night

    Yes (True D/N)

  • Noise reduction

    Yes

  • Codec image size (H x V)

    1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)

  • Video compression format

    H.264, MPEG-4, JPEG

  • Codec streaming capability

    Dual streaming

  • Maximum frame rate

    H.264: 20fps (1280 x 1024) / 30 fps (1280 x 720)
    MPEG-4: 25fps (1280 x 1024) / 30 fps (1280 x 720)
    JPEG: 30fps (1280 x 1024) / 30 fps (1280 x 720)

  • Intelligent motion detection

    Yes

  • Protocols

    IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)

  • ONVIF software

    Yes.

  • Number of clients

    5

  • Authentication

    IEEE802.1X

  • Analog Monitor Output: Signal system

    NTSC

  • Interface: Ethernet

    10BASE-T / 100BASE-TX (RJ-45)

  • Interface: Analog monitor output

    1x Phono jack

  • Interface: Sensor input

    1x Make contact, break contact

  • Interface: Alarm output

    24V AC/DC, 1A
    (Mechanical relay outputs electrically isolated from the camera)

  • Operating system requirements

    Microsoft Windows XP, Windows Vista (32bit), Windows 7 (32bit)

  • Processor requirements

    Intel Core2 Duo 2GHz or higher

  • Memory requirements

    1GB or more

  • Web browser requirements

    Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0, Ver. 9.0
    Firefox: Ver.3.5 (Plug-in free viewer only)
    Safari Ver.4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only)

  • Power requirements

    PoE (802.3af)

  • Power consumption

    12.9W max.

  • Starting temperature

    -4 to 122 deg. F / 20 to 50 deg. C

  • Working temperature

    -22 to +122 deg. F / -30 to +50 deg. C

  • Storage temperature

    -4 to 140 deg. F / 20 to 60 deg. C

  • Ingress protection

    IP66

  • Safety regulation

    UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A

  • Dimensions (Dia. x L)

    93 x 186mm / 3.66 x 7.32"
    Including Arm: 140 x 334.8mm / 5.51 x 13.18"

  • Weight

    3.86lbs / 1.75kg

4 Accessories for Sony SNC-CH160 1.3MP Day/Night Indoor/Outdoor 720p HD IP Network Bullet Camera with IR Illuminator, 30fps, JPEG, MPEG-4, H.264, Dual Streaming, PoE

  • All Accessories (4)
  • Extended Warranty (4)
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1500, 2 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1500, 2 Year Plan
$94.00
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1500, 2 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1500, 2 Year Plan
$109.99
Recommended
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1500, 3 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1500, 3 Year Plan
$117.99
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1500, 3 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1500, 3 Year Plan
$134.99
Recommended

About Sony SNC-CH160

• Excellent 720p HD picture quality, supporting H.264 at 30 fps
• 1.3 Megapixel (1280 x 1024) maximum resolution
• Three codecs (H.264, MPEG-4, JPEG) and dual streaming capability
• Exmor CMOS sensor incorporated to deliver high image quality and low noise
• Dynamic range better than 60dB
• Sony is pleased to introduce the SNC-CH160, a powerful new addition to its network HD camera lineup
• Built-in IR (Infrared) illuminators to assist capturing objects in the dark even under 0 lx, up to 82 feet (25 m) (50 IRE) away. Adaptive IR auto adjusts IR level for best picture
• IP66-rated water-resistant and dust-tight feature for outdoor surveillance or indoor where water ingress may pose an issue
• Easy Focus/Easy Zoom functions to remotely change the field of view and focus
• True Day/Night function to switch to Day or Night mode depending on the light level
• Recording software (RealShot Manager Lite) is bundled to start recording and monitoring instantly
• Stream Squared function allows simultaneous streaming of two 4: 3 aspect ratio videos in user selectable SD resolutions
• User can select the entire image or a portion of the image from the original fie ld of view and resize to VGA resolution or lower for each stream
• With this feature, the SNC-CH160 can replace two standard definition cameras installed in the same line of view
• Intelligent Motion Detection that supports DEPA analytics
• Analog monitor output (phono jack)
• Powered by PoE (Power over Ethernet) for simple installation
• Equipped with a built-in heater for continued camera operation in cold weather
• ONVIF (Open Network Video Interface Forum) software that ensures greater interoperability and more flexibility in building multiple- vendor systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony SNC-CH160 1.3MP Day/Night Indoor/Outdoor 720p HD IP Network Bullet Camera with IR Illuminator
  • Wire Rope
  • M4x8 Screw
  • Template
  • CD-ROM (User's Guide and SNC Toolbox)
  • Installation Manual
  • Sony Warranty
