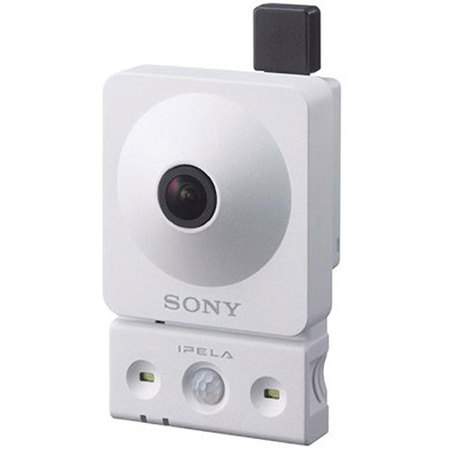

Sony SNC-CX600W 1.3MP 720p HD Wireless IP Network Fixed Camera with Wi-Fi, 30fps, H.264, JPEG

SKU: SOSNCCX600W

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sony SNC-CX600W Specifications

  • Camera: Image Sensor

    1/4-type progressive scan Exmor CMOS sensor

  • Camera: Number of Effective Pixels

    Approx. 1.3 Megapixels

  • Camera: Minimum Illumination (50 IRE)

    Color: 1.0 lx (F2.0, VE OFF, AGC MAX, 1/30 s, 30 fps)

  • Camera: Minimum Illumination (30 IRE)

    Color: 0.5 lx (F2.0, VE OFF, AGC MAX, 1/30 s, 30 fps)

  • Camera: Dynamic Range

    More than 60dB

  • Camera: Gain

    Auto

  • Camera: Shutter Speed

    1/1 s to 1/10000 s

  • Camera: Exposure Control

    Exposure compensation, AGC, Shutter speed

  • Camera: White Balance

    ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual

  • Camera: Lens

    Fixed lens

  • Camera: Horizontal Viewing Angle

    120 deg.

  • Camera: Vertical Viewing Angle

    64.0 deg.

  • Camera: Focal Length

    f = 1.83mm

  • Camera: F-Number

    F2.0

  • Camera: Minimum Object Distance

    19.69" / 500mm

  • Camera: White-light LED Illuminator

    Yes

  • Camera: LED Working Distance

    3m / 9.84'

  • Camera: Wide-D

    View-DR LT-C technology

  • Camera: Tone Correction

    Visibility Enhancer (VE)

  • Camera: Noise Reduction

    XDNR technology

  • Camera: Image Stabilizer

    Yes

  • Camera: Picture Mode

    Yes

  • Camera: Privacy Masking (number)

    20

  • Camera: Privacy Masking (shape)

    Quadrangle formed by any four corner points

  • Camera: Privacy Masking (color / effect)

    Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic

  • Camera: Edge Storage

    Yes

  • Camera: Memory Size for Pre /Post Buffer

    Approx. 8MB

  • Camera: Compatibility with Cloud Service

    Yes

  • Camera: Voice Alert

    Yes

  • Camera: Super impose Number

    3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for logo marks

  • Camera: Super impose Language

    English

  • Camera: Menu Language

    English, Japanese, Chinese (simplified), Chinese (traditional),French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai

  • Camera: Smart phone viewer

    Yes

  • Video: Resolution

    1280 x 720, 1024 x 576, 720 x 576,720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 180, (H.264, JPEG)

  • Video: Compression Format

    H.264 (High/Main/Baseline Profile), JPEG

  • Video: Maximum Frame Rate

    H.264: 30 fps (1280 x 720)
    JPEG: 30 fps (1280 x 720)

  • Video: Bitrate Compression Mode

    CBR / VBR (selectable)

  • Video: Range of Bitrate Setting

    64 Kbps to 8 Mbps

  • Video: Solid PTZ

    Yes

  • Video: Bandwidth Control

    JPEG

  • Video: Multi Streaming Capability

    Triple streaming

  • Video: Number of Clients

    5

  • Video Analytics: Analytics Architecture

    DEPA Advanced technology

  • Video Analytics: Motion Detection

    Yes

  • Video Analytics: Face Detection

    Yes

  • Video Analytics: Tamper Alarm

    Yes

  • Video Analytics: Scene Analytics

    Passing, Intrusion, Left Object Detection, Removed Object

  • Audio: Compression Format

    G.711 / G.726 / AAC (16kHz, 48kHz)

  • System Requirements: Operating System

    Windows XP (32 bit) Professional Edition
    Windows Vista (32 bit) Ultimate, Business Edition
    Windows 7 (32/64 bit) Ultimate, Professional Edition
    Windows 8 Pro (32/64 bit)

  • System Requirements: Processor

    Intel Core2 CPU 6420 2.13GHz or higher

  • System Requirements: Memory

    2GB or more

  • System Requirements: Web Browser

    Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver 10.0
    Firefox Ver. 19.02 (plug-in free viewer only)
    Safari Ver. 5.1 (plug-in free viewer only)
    Google Chrome Ver. 25.0 (plug-in free viewer only)

  • Network: Protocols

    IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP,RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3),SSL

  • QoS

    DSCP, Wi-Fi Multimedia

  • Network: Multicast Streaming Support

    Yes

  • Network: ONVIF Conformance

    Profile S

  • Network: Wireless Network

    IEEE802.11b/g/n

  • Network: Wi-Fi Certified

    Yes

  • Network: Wi-Fi Protected Setup

    Yes (WPS)

  • Network: Authentication

    Wireless: No, Wired: IEEE802.1X

  • Interface: Microphone Input

    Built-in microphone

  • Interface: Line Output

    Built-in speaker

  • Interface: Network Port

    10BASE-T / 100BASE-TX (RJ-45)

  • Interface: Card Slots

    micro SD

  • Interface: Confirmed SD Card Type

    SDHC (no support for SDXC)

  • Power Requirements

    DC 5V

  • Power Consumption

    5.0W max.

  • External Material

    PC (polycarbonate)

  • Fire Retardant

    UL94HB or higher

  • Safety Regulation

    JATE, UL2044, IEC60950-1, VCCI Class B, FCC Class B, IC Class B, EN55022 (Class B) + EN50130-4, EN55022 (Class B) + EN55024, EN60950-1 EN62311, EN300 328 EN301489-17 EN301489-1, AS/NZS CISPR22 (Class B), AS/NZS 4286, GB4943, (IEC60950) + GB9254 (CISPR22), SRRC, CNS14336 (IEC60950-1) + CNS13438 (CISPR22), RCM, Russia EAC, KCC

  • Operating Temperature

    Wired: 32 to 122 deg. F / 0 to 50 deg. C
    Wireless: 32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Operating Humidity

    20% to 80%

  • Storage Humidity

    20% to 95%

  • Dimensions (W x H x D)

    Approx. 61 x 95 x 41mm / 2.40 x 3.74 x 1.61"

  • Weight

    Approx. 3.9oz / 110.56g

4 Accessories for Sony SNC-CX600W 1.3MP 720p HD Wireless IP Network Fixed Camera with Wi-Fi, 30fps, H.264, JPEG

  • All Accessories (4)
  • Extended Warranty (4)

About Sony SNC-CX600W

• Maximum resolution of 1280 x 720 pixels with the Exmor CMOS sensor
• Wide horizontal viewing angle of 120deg.
• White-light LED Illuminators for clear color images in low-light conditions
• Voice Alert function by a built-in speaker
• Passive IR (PIR) sensor for motion detection and control of camera security functions
• Edge Storage for onboard recording with a micro SD/SDHC card
• WPS (Wi-Fi Protected Setup), Wi-Fi Certified and WMM (Wi-Fi Multimedia) for easy, reliable and stable wireless network operation
• IPELA ENGINE Ex signal processing system developed based on Sony's unique signal processing and intelligent video analytics technologies to provide unique features such as XDNR and DEPA Advanced technologies
• White-light LED Illuminators to capture clear color images at a distance of up to 10 feet (3 m), even in complete darkness of 0 lx
• Voice Alert function to play back a warning message through a built-in speaker when the PIR sensor detects a moving object
• Passive IR (PIR) sensor to detect an object in motion and then trigger an alarm to activate the camera's security functions such as white-light LED illuminators, Voice Alert, Edge Storage and email notification
• Edge Storage function to record video and audio data with a micro SD/SDHC card attached to the camera
• Up to 500 data files can be stored in the memory card. If more than 500 files are recorded, old ones are automatically overwritten with new ones.
• WPS (Wi-Fi Protected Setup) standard for easy wireless network security setting, requiring a simple touch of a camera button
• Wi-Fi Certified and IEEE802.11b/g/n standard to guarantee interoperability with other manufacturers' certified network devices
• WMM (Wi-Fi Multimedia) standard to ensure QoS (Quality of Service) for stable network transmission XDNR (excellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under low illumination
• Picture mode selectable from a range of camera scenes in the setting menu to optimize picture quality in various applications
• VBR (variable bitrate) or CBR (constant bitrate) compression mode selectable to correspond with various network conditions
• Built-in HTML viewer compatible with most Smartphones
• Image Stabilizer to help minimize the effect of camera shake or vibration to achieve less blurry images
• DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
• ONVIF (Open Network Video Interface Forum) Profile S conformance
• Built-in speaker and microphone
• Supplied camera stand and Wi-Fi module

What's in the box:

  • Sony SNC-CX600W 1.3MP 720p HD Wireless IP Network Fixed Camera
  • Wi-Fi Module
  • AC Adapter
  • Power Cord
  • Camera Stand
  • 3x Screws
  • Installation Manual
  • Quick Start Guide
  • Safety Regulations for Network Camera
  • Safety Regulations for USB Wireless LAN Module
  • Sony Warranty
