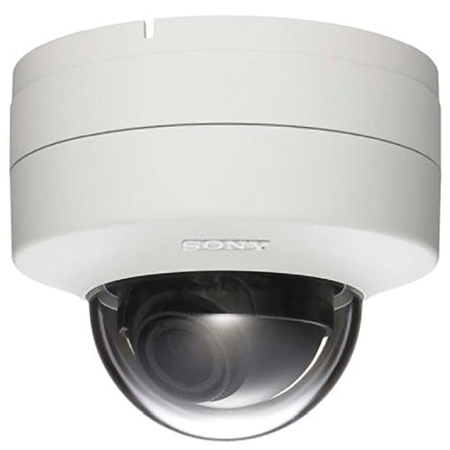

Sony SNC-DH240T 3MP 1080p Indoor Day/Night Vandal Resistant Minidome Camera
See all Sony items

Sony SNC-DH240T 3MP 1080p Indoor Day/Night Vandal Resistant Minidome Network Camera with View-DR, 2.9x Optical Zoom, 30 fps, JPEG/MPEG-4/H.264, PoE

SKU: SOSNCDH240T

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SNC-DH240T Specifications

  • Image device

    1/2.8 type progressive scan Exmor CMOS sensor

  • Minimum illumination

    Color: 0.40 lx, B/W: 0.25 lx (F1.2/View-DR OFF/XDNR ON-Middle/VE OFF/AGC High/50 IRE [IP])

  • Number of effective pixels (H x V)

    Approx. 3.27Megapixel (2096x1561)

  • Electronic shutter speed

    1s to 1/10000s

  • Gain control

    Auto (3 levels)

  • Exposure control

    Auto, EV Compensation, Auto Slow Shutter

  • White balance mode

    Auto (ATW, ATW-PRO), Preset, One-push WB, Manual

  • Lens type

    Built-in Vari-focal lens

  • Zoom ratio

    Optical 2.9X (x2 Digital Zoom)

  • Horizontal viewing angle

    88.5 to 32.3 deg.

  • Focal length

    f = 3.1 to 8.9mm

  • F-number

    F1.2 (Wide), F2.1 (Tele)

  • Minimum Object Distance

    300mm

  • Powered focus

    Yes (Easy Focus)

  • Powered zoom

    Yes (Easy Zoom)

  • Day/Night

    Yes

  • Wide-D

    View-DR technology (90dB)

  • Image enhancement

    Visibility Enhancer

  • Noise reduction

    XDNR technology

  • Image: Codec image size (H x V)

    1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080, 1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800, 1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)

  • Image: Video compression format

    H.264, MPEG-4, JPEG

  • Image: Codec streaming capability

    Dual streaming

  • Image: Maximum frame rate

    H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
    MPEG-4: 15fps (1920 x 1440) / 20 fps (1920 x 1080)
    JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)

  • Audio compression

    G.711/G.726

  • Scene Analytics: Motion detection

    Yes (with built-in Post Filter)

  • Scene Analytics: Object detection

    No

  • Scene Analytics: Rule filter

    Yes

  • Network Protocols

    IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)

  • Network ONVIF software

    Yes

  • Wireless Network

    No

  • Network Number of clients

    10

  • Network Authentication

    IEEE802.1X

  • Analog Video Output: Signal system

    NTSC / PAL

  • Analog Video O/P: Horizontal resolution

    600 TV lines

  • Analog Video Output: S/N ratio

    More than 50dB

  • Interface: Ethernet

    10BASE-T / 100BASE-TX (RJ-45)

  • Interface: Serial interface

    No

  • Interface: Card slots

    No

  • Interface: Analog video output

    BNC x1

  • Interface: Analog monitor output

    Phono jack x1

  • Interface: Sensor input

    x1

  • Interface: Alarm output

    x2

  • Interface: External microphone input

    Mini-jack (Monaural)
    MIC IN/LINE IN: 2.5VDC plug-in power

  • Interface: Audio line output

    Mini-jack (Monaural)
    Max output level: 1 Vrms

  • Power requirements

    PoE, AC24V, DC12V

  • Power consumption

    10.2W max.

  • Vandal resistant

    IK10

  • Safety Regulations

    UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A

  • Operating system

    Windows XP, Windows Vista, Windows 7

  • Processor

    Intel Core2 Duo 2GHz or higher

  • Memory

    1GB or more

  • Web browser

    Microsoft Internet Explorer Ver6.0, 7.0, or 8.0

  • Starting temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Working temperature

    23 to 122 deg. F / -10 to +50 deg. C

  • Storage temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions

    Dia. 5.62 x 4.75" / 142.75 x 120.65mm

  • Weight

    2.18lbs / 0.99kg

About Sony SNC-DH240T

This vandal-resistant, wide dynamic range, full HD mini dome camera supports H.264, MPEG-4 and JPEG compression formats and delivers excellent picture quality in HD 1080p resolution at 30 fps. Incorporating the new "Exmor" CMOS image sensor, which is designed for surveillance, this camera features state-of-the-art image-enhancement technology, View-DR.

Sony SNC-DH240T Features

  • Three codecs (JEPG/MPEG-4/H.264) and dual encoding
  • DEPA advanced - intelligent video and audio analytics, trigger an alarm based on user-defined rules, intelligent motion detection, tamper alarm and advanced audio detection
  • Excellent 1080p HD picture quality, supporting H.264 at 30 fps
  • 3 Megapixel (1920 x 1440) maximum resolution
  • The Exmor CMOS sensor incorporated to deliver high image quality and low noise
  • View-DR technology -Sony's innovative Wide Dynamic Range technology-to capture objects clearly and adaptively even under very severe backlight or highlight conditions
  • Visibility Enhancer to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene, within the given dynamic range
  • IK10-rated vandal-resistant feature to protect the camera from destructive behaviors
  • Easy Focus/Easy Zoom functions for easy installation
  • Optical Day/Night function to switch to Day or Night mode depending on the light level
  • XDNR (excellent Dynamic Noise Reduction) technology for clear images without motion blur under low illumination
  • Powered by either AC 24 V, DC 12 V or PoE (Power over Ethernet) for easy installation
  • Equipped with a BNC connector and a phono jack to instantly monitor the video while installing the camera
  • ONVIF (Open Network Video Interface Forum) software that ensures greater interoperability and more flexibility in building multiple-vendor

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Optical Day/Night function

What's in the box:

  • Sony SNC-DH240T 3MP 1080p Indoor Day/Night Vandal Resistant Minidome Network Camera with View-DR Technology
  • CD-ROM (User's Guides / SNC Toolbox)
  • Installation Manual
  • Template
  • Wire Rope
  • Bracket
  • LAN Cable
  • BNC Cable
  • Power Input Cable
  • I/O Cable
  • Audio Cable
  • M4 Shoulder Screw
  • 2x M4 Screws
  • Wrench
  • Sony 3 Year Parts and Labor Warranty
