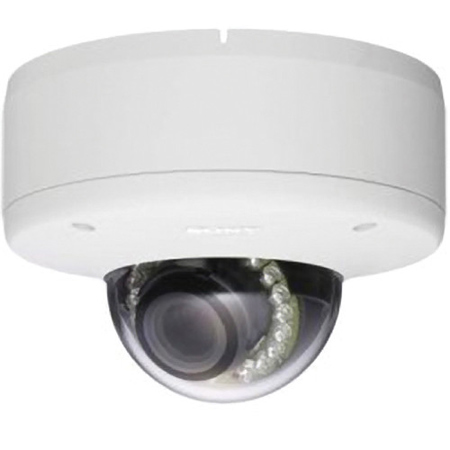

Sony SNC-DH260 3MP 1080p Indoor/Outdoor Day & Night VR Minidome Camera
See all Sony items

Sony SNC-DH260 3MP 1080p Indoor/Outdoor Day & Night Vandal Resistant Minidome Network Camera, 2.9x Optical Zoom, 20 fps, JPEG/MPEG-4/H.264, PoE

SKU: SOSNCDH260
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SNC-DH260 Specifications

  • Image device

    1/2.8 type progressive scan Exmor CMOS sensor

  • Minimum illumination

    Color: 0.70lx lx
    B/W: 0 lx (IR ON)(F1.2/ AGC 42dB / 50IRE [IP])

  • Dynamic range

    Better than 60dB

  • Number of effective pixels (H x V)

    Approx. 3.27 Megapixel (2096x1561)

  • Electronic shutter speed

    1s to 1/10000s

  • Gain control

    Auto

  • Exposure control

    Auto, EV Compensation, Auto Slow Shutter

  • White balance mode

    Auto (ATW, ATW-PRO), Preset, One-push WB, Manual

  • Lens type

    Built-in Vari-focal lens

  • Zoom ratio

    Optical 2.9X

  • Horizontal viewing angle

    88.5 to 32.3 deg.

  • Focal length

    f = 3.1 to 8.9mm

  • F-number

    F1.2 (Wide), F2.1 (Tele

  • Minimum Object Distance

    300mm

  • Powered focus

    Yes (Easy Focus)

  • Powered zoom

    Yes (Easy Zoom)

  • IR working distance

    59' / 17.98m (50 IRE)

  • Day/Night

    Yes (True D/N)

  • Noise reduction

    Yes

  • Image: Codec image size (H x V)

    1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080, 1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800, 1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)

  • Image: Video compression format

    H.264, MPEG-4, JPEG

  • Image: Codec streaming capability

    Dual streaming

  • Image: Maximum frame rate

    H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
    MPEG-4: 15fps (1920 x 1440) / 20 fps (1920 x 1080)
    JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)

  • Scene Analytics: Motion detection

    Yes

  • Network Protocols

    IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)

  • Network ONVIF software

    Yes

  • Network Number of clients

    5

  • Network Authentication

    IEEE802.1X

  • Analog Monitor Output: Signal system

    NTSC

  • Interface: Ethernet

    10BASE-T / 100BASE-TX (RJ-45)

  • Interface: Analog monitor o/p

    Phono jack x1 (1.0 Vp-p, 75Ohms, unbalanced, sync negative)

  • Interface: Sensor input

    x1, make contact, break contact

  • Interface: Alarm output

    x1, 24V AC/DC, 1A (mechanical relay outputs electrically isolated from the camera)

  • Power requirements

    PoE

  • Power consumption

    12.9W Max.

  • Ingress protection

    IP66

  • Vandal resistant

    IK10

  • Safety Regulations

    UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A

  • Operating system

    Microsoft Windows XP, Windows Vista (32bit), Windows 7 (32bit)

  • Processor

    Intel Core2 Duo 2GHz or higher

  • Memory

    1GB or more

  • Web browser

    Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8. 0, Ver. 9.0
    Firefox Ver.3.5 (Plug-in free viewer only)
    Safari Ver.4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only)

  • Starting temperature

    -4 to +122 deg. F / -20 to +50 deg. C

  • Working temperature

    -22 to +122 deg. F / -30 to +50 deg. C

  • Storage temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions

    Dia. 6.62 x 4.75" / 168.15 x 120.65mm

  • Weight

    6.46lbs / 2.93kg

About Sony SNC-DH260

Network 1080p HD /3 Megapixel Vandal Resistant Minidome Camera with IR Illuminator, IP66 rated with built-in heater, Dual Stream H.246/MPEG-4/JPEG, Day/Night, PoE, built-in 3.1 - 8.9 auto iris lens.

Sony SNC-DH260 Features

  • Excellent Sensitivity (F1.2, AGC 42dB, 50IRE [IP])
  • 0.5 lux (color), 0 lux (B/W)
  • Analog video output
  • Excellent 1080p HD picture quality, supporting H.264 at 30 fps
  • 3 Megapixel (1920 x 1440) maximum resolution
  • Three codecs (H.264, MPEG-4, JPEG) and dual streaming capability
  • Exmor CMOS sensor incorporated to deliver high image quality and low noise
  • Dynamic range better than 60 dB
  • Built-in IR (Infrared) illuminators to assist capturing objects in the dark even under 0 lx, up to 59 feet (18 m) (50 IRE) away. Adaptive IR auto adjusts IR level for best picture
  • IP66-rated water-resistant and dust-tight feature for outdoor surveillance or indoor where water ingress may pose an issue
  • IK10-rated impact-resistant feature to protect the camera from destructive behaviors
  • Easy Focus / Easy Zoom functions to remotely change the field of view and focus
  • True Day/Night function to switch to Day or Night mode depending on the light level
  • Recording software (RealShot Manager Lite) is bundled to start recording and monitoring instantly
  • Stream Squared function to send two 4:3 aspect ratio videos in user-selectable resolutions up to VGA simultaneously (Low-cost solution to replace two standard definition cameras located in a line)
  • Intelligent Motion Detection that supports DEPA analytics
  • Equipped with a phono jack to instantly monitor the video while installing the camera
  • Powered by PoE (Power over Ethernet) for simple installation
  • Equipped with a built-in heater for continued camera operation in cold weather supported (-22 deg.F to +122 deg.F/ -30 deg.C to +50 deg.C)
  • ONVIF Software (Open Network Video Interface F orum) software that ensures greater interoperability and more flexibility in building multiple- vendor systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 0.5 lux (color), 0 lux (B/W)
  • 3 Megapixel (1920 x 1440) maximum resolution
  • Analog video output
  • Dynamic range better than 60 dB
  • Excellent 1080p HD picture quality, supporting H.264 at 30 fps
  • Excellent Sensitivity (F1.2, AGC 42dB, 50IRE [IP])

What's in the box:

  • Sony SNC-DH260 3MP 1080p Indoor/Outdoor Day & Night Vandal Resistant Minidome Network Camera
  • CD-ROM (User's Guide / SNC Toolbox)
  • Installation Manual
  • Wire Rope
  • M4 Screw
  • Template
  • Sony 3 Year Parts and Labor Warranty
