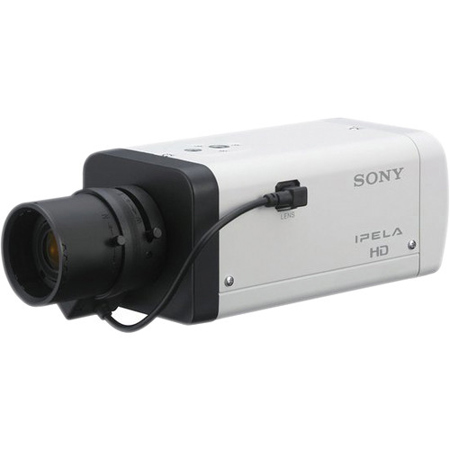

Sony SNC-EB630 2.14MP 1080p True Day/Night Fixed Network Box Camera
See all Sony items

Sony SNC-EB630 2.14MP 1080p True Day/Night Fixed Network Box Camera with IPELA ENGINE EX Technology, 2.9x Varifocal Lens, 30 fps, JPEG, H.264, PoE, ABF

SKU: SOSNCEB630

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Harold F : What lens does this camera use?ANDREW R : From the supplied specs: "Lens CS-mount varifocal lens Focal Length f = 2.8 to 8.0mm"

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SNC-EB630 Specifications

  • Image Sensor

    1/2.9-type progressive scan Exmor CMOS sensor

  • Number of Effective Pixels

    Approx. 2.14 Megapixels

  • Signal System

    NTSC

  • Sync System

    Internal synchronization

  • Minimum Illumination

    50 IRE:
    Color: 0.1 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0.07 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

    30 IRE:
    Color: 0.06 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0.05 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

  • Dynamic Range

    Equivalent to 90dB with View-DR technology

  • S/N Ratio

    More than 50dB (Gain 0dB)

  • Gain

    Auto

  • Shutter Speed

    1/1 s to 1/10000 s

  • Exposure Control

    Exposure compensation, AGC, Shutter speed, Iris

  • White Balance

    ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual

  • Lens

    CS-mount varifocal lens

  • Zoom Ratio

    Optical zoom 2.9x
    Digital zoom 4x
    Total zoom 11.6x

  • Easy Focus for Setup

    Yes

  • Horizontal Viewing Angle

    114.2 to 40.0 deg.

  • Vertical Viewing Angle

    60.6 to 22.5 deg.

  • Focal Length

    f = 2.8 to 8.0mm

  • F-Number

    F1.2 (Wide) to F1.95 (Tele)

  • Minimum Object Distance

    300mm

  • Day/Night

    True D/N

  • Wide-D

    View-DR

  • Tone Correction

    Visibility Enhancer (VE)

  • Noise Reduction

    XDNR

  • Image Stabilizer

    Yes

  • Privacy Masking (Number)

    20

  • Privacy Masking (Shape)

    Quadrangle formed by any four corner points

  • Privacy Masking (Color/Effect)

    Opaque: 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic

  • Superimpose Number

    3 independent positions for character (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for logo marks

  • Superimpose Language

    English

  • Menu Language

    English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai

  • Smartphone viewer

    Yes

  • Video: Resolution

    1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)

  • Video: Compression Format

    H.264 (High/Main/Baseline Profile), JPEG

  • Video: Maximum Frame Rate

    H.264: 30 fps (1920 x 1080)
    JPEG: 30 fps (1920 x 1080)

  • Video: Bitrate Compression Mode

    CBR/VBR (selectable)

  • Video: Range of Bitrate Setting

    64 Kbps to 32 Mbps

  • Video: Solid PTZ

    Yes

  • Video: Adaptive Rate Control

    H.264

  • Video: Bandwidth Control

    JPEG

  • Video: Multi Streaming Capability

    Triple streaming

  • Video: Number of Clients

    20

  • Video Analytics: Architecture

    DEPA Advanced

  • Video Analytics: Motion Detection

    Yes

  • Video Analytics: Face Detection

    Yes

  • Video Analytics: Tamper Alarm

    Yes

  • Video Analytics: Scene Analytics

    Passing, Intrusion, Left Object Detection, Removed Object Detection

  • Operating System

    Windows XP (32 bit) Professional Edition
    Windows Vista (32 bit) Ultimate, Business Edition
    Windows 7 (32/64 bit) Ultimate, Professional Edition
    Windows 8 Pro (32/64 bit)
    Microsoft DirectX 9.0c or higher

  • Processor

    Intel Corei7 2.8GHz or higher

  • Memory

    2GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver 10.0
    Firefox Ver. 19.02 (plug-in free viewer only)
    Safari Ver. 5.1 (plug-in free viewer only)
    Google Chrome Ver. 25.0 (plug-in free viewer only)

  • Network Protocols

    IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL

  • Network Multicast Streaming Support

    Yes

  • Network ONVIF Conformance

    Profile S

  • Network Authentication

    IEEE 802.1X

  • Interface: Analog Monitor o/p for Setup

    Mini jack x1

  • Interface: Network Port

    10BASE-T/100BASE-TX (RJ-45)

  • Power Requirements

    PoE system (IEEE 802.3af compliant) Class 2

  • Power Consumption

    5.0W max.

  • Operating Humidity

    20% to 80%

  • Storage Humidity

    20% to 95%

  • External Material

    Top cover: SECC-CF
    Bottom cover: SECC-CF
    Front panel: ADC12
    Rear panel: PC + ABS

  • Fire Retardant

    UL2044

  • Safety Regulations

    JATE Technical Standard (LAN)
    UL2044, IEC60950-1 (CB)
    VCCI (Class A), FCC (Class A), IC (Class A)
    Emission: EN55022 (Class A) + EN50130-4
    Immunity: EN55022 (Class A) + EN55024
    Emission: AS/NZS CISPR22 (Class A)
    KCC
    EMC-TR

  • Operating Temperature

    14 to 122 deg. F / -10 to +50 deg. C

  • Cold Start Temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage Temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions (W x H x D)

    Without lens:
    2.87 x 2.05 x 5.75" / 72.9 x 52.07 x 146.05mm
    With lens:
    2.87 x 2.05 x 7.87" / 72.9 x 52.07 x 199.9mm

  • Weight

    Approx. 1.11lbs / 0.5kg (with lens)

4 Accessories for Sony SNC-EB630 2.14MP 1080p True Day/Night Fixed Network Box Camera with IPELA ENGINE EX Technology, 2.9x Varifocal Lens, 30 fps, JPEG, H.264, PoE, ABF

  • All Accessories (4)
  • Extended Warranty (4)
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1000, 3 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1000, 3 Year Plan
$109.99
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1000, 2 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $1000, 2 Year Plan
$89.99
Recommended
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1000, 3 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1000, 3 Year Plan
$81.99
Recommended
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1000, 2 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $1000, 2 Year Plan
$65.00
Recommended

About Sony SNC-EB630

FHD Network fixed camera powered by IPELA ENGINE Ex, minimum illumination of 0.1lx (Color, 50IRE, 1/30 shutter speed), 1080p/30fps, View-DR (90dB), easy-focus, image stabilization, PoE.

Sony SNC-EB630 Features

  • Maximum resolution of 1920 x 1080 pixels with the Exmor CMOS sensor
  • Extremely Wide Dynamic Range to 90dB achieved with View-DR technology
  • H.264 (High/Main/Baseline Profile)/JPEG video codecs
  • Minimum illumination of 0.1 lx in Color and 0.07 lx in B/W (50 IRE at 1/30 sec)
  • Image Stabilizer to help minimize camera shake or vibration to achieve less blurry images
  • IPELA ENGINE EX signal processing system developed based on Sony's unique signal processing and video analytics technologies to provide unique features such as View-DR, XDNR and DEPA Advanced technologies
  • View-DR - Sony's innovative wide dynamic range technology - to capture objects clearly and adaptively even under very harsh, severe backlight or highlight conditions
  • Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
  • DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
  • XDNR (excellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under low illumination
  • Picture mode selectable from a range of camera scenes in the setting menu to optimize picture quality in various applications
  • True D/N (Day/Night) function to switch to Day or Night mode depending on the light level
  • Built-in HTML viewer compatible with most Smartphones
  • Easy Focus function for easy installation
  • Powered by PoE (IEEE 802.3af-compliant) for easy installation
  • ONVIF (Open Network Video Interface Forum) Profile S conformance software that ensures greater interoperability and more flexibility in building multiple-vendor systems
  • VBR (variable bitrate) or CBR (constant bitrate) compression mode selectable to correspond with various network conditions
  • Easy initial network settings with supplied SNC Easy IP Setup Guide application

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • True D/N (Day/Night) function
  • Easy initial network settings

What's in the box:

  • Sony SNC-EB630 2.14MP 1080p True Day/Night Fixed Network Box Camera with IPELA ENGINE EX Technology
  • CD-ROM (Supplied Programs)
  • Installation Manual
  • Wire Rope
  • Screw M4
  • Safety Regulations
  • Sony 3 Year Parts and Labor Limited Warranty
