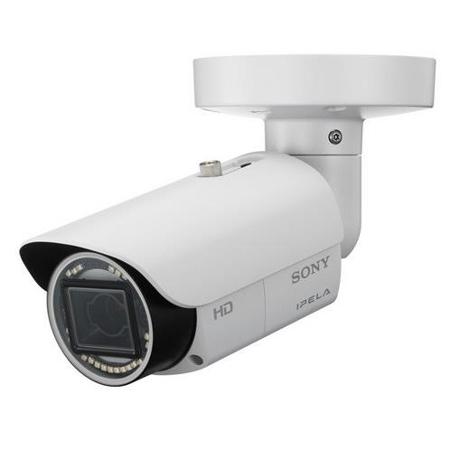

Sony SNC-EB632R 2.14MP 1080p Outdoor True Day/Night IR Bullet Network Camera
See all Sony items

Sony SNC-EB632R 2.14MP 1080p Outdoor True Day/Night IR Bullet Network Camera with IPELA ENGINE EX Technology, 3x Optical Zoom, 30 fps, JPEG, H.264, PoE

SKU: SOSNCEB632R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SNC-EB632R Specifications

  • Image Sensor

    1/2.9-type progressive scan Exmor CMOS sensor

  • Number of Effective Pixels

    Approx. 2.14 Megapixels

  • Signal System

    NTSC/PAL (switchable)

  • Sync System

    Internal synchronization

  • Minimum Illumination

    50 IRE:
    Color: 0.1 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0 lx (IR illuminator ON)

    30 IRE:
    Color: 0.06 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
    B/W: 0 lx (IR illuminator ON)

  • Dynamic Range

    Equivalent to 90dB with View-DR technology

  • S/N Ratio (Gain 0dB)

    More than 50dB

  • Gain

    Auto

  • Shutter Speed

    1 s to 1/10000 s

  • Exposure Control

    Exposure compensation, AGC, Shutter speed, Iris

  • White Balance

    ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual

  • Lens

    Built-in varifocal lens

  • Easy Zoom

    Yes

  • Zoom Ratio

    Optical zoom 3x
    Digital zoom 4x
    Total zoom 12x

  • Easy Focus for Setup

    Yes

  • Horizontal Viewing Angle

    105.3 to 35.6 deg.

  • Vertical Viewing Angle

    56.9 to 20.1 deg.

  • Focal Length

    f = 3.0 to 9.0mm

  • F-Number

    F1.2 (Wide) to F2.1 (Tele)

  • Minimum Object Distance

    300mm

  • IR illuminators

    Yes (Wave length: 850nm [typical], IR LED: 20 pieces)

  • IR Working Distance

    98.43'/ 30m (50 IRE)

  • Day/Night

    True D/N

  • Wide-D

    View-DR

  • Tone Correction

    Visibility Enhancer (VE)

  • Noise Reduction

    XDNR

  • Image Stabilizer

    Yes

  • Picture Mode

    Yes

  • Privacy Masking (Number)

    20

  • Privacy Masking (Shape)

    Quadrangle formed by any four corner points (Shape)

  • Privacy Masking (Color/Effect)

    Opaque: 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic

  • Ingress Protection

    IP66

  • Superimpose Number

    3 independent positions for characters (Codec, Date & Time, Event, Text (max. 64 characters)), 1 independent position for logo marks

  • Superimpose Language

    English

  • Menu Language

    English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai

  • Smartphone viewer

    Yes

  • Video: Resolution

    1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)

  • Video: Compression Format

    H.264 (High/Main/Baseline Profile), JPEG

  • Video: Maximum Frame Rate

    H.264: 30 fps (1920 x 1080)
    JPEG: 30 fps (1920 x 1080)

  • Video: Bitrate Compression Mode

    CBR/VBR/VBR with Cap (selectable)

  • Video: Range of Bit Rate Setting

    64 Kbps to 32 Mbps

  • Video: Solid PTZ

    Yes

  • Video: Adaptive Rate Control

    H.264

  • Video: Bandwidth Control

    JPEG

  • Video: Multi streaming Capability

    Triple streaming

  • Video: Number of Clients

    20

  • Video/Audio Analytics: Architecture

    DEPA Advanced

  • Video/Audio Analytics: Motion Detection

    Yes

  • Video/Audio Analytics: Face Detection

    Yes

  • Video/Audio Analytics: Tamper Alarm

    Yes

  • Video/Audio Analytics: Scene Analytics

    Passing, Intrusion, Left Object Detection, Removed Object Detection

  • Operating System

    Windows XP (32 bit) Professional Edition
    Windows Vista (32 bit) Ultimate, Business Edition
    Windows 7 (32/64 bit) Ultimate, Professional Edition
    Windows 8 Pro (32/64 bit), Windows 8.1 Pro (32/64 bit)

  • Processor

    Intel Corei7 2.8GHz or higher

  • Memory

    2GB or more

  • Web Browser

    Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver. 10.0, Ver. 11.0
    Firefox Ver. 19.02 (plug-in free viewer only)
    Safari Ver. 5.1 (plug-in free viewer only)
    Google Chrome Ver. 25.0 (plug-in free viewer only)

  • Network Protocols

    IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, FTP (client only), SNMP (v1, v2c, v3), SSL

  • Network QoS

    DSCP

  • Network Multicast Streaming Support

    Yes

  • Network ONVIF Conformance

    Profile S

  • Network Authentication

    IEEE 802.1X

  • Interface: Analog monitor o/p for Setup

    Phono jack x1

  • Interface: Network Port

    10BASE-T/100BASE-TX (RJ-45)

  • Power Requirements

    IEEE 802.3af compliant (PoE system)

  • Power Consumption

    Max. 11.4W (tentative, IEEE 802.3af-compliant PoE system)

  • Operating Humidity

    20% to 90% (no condensation)

  • Storage Humidity

    20% to 95% (no condensation)

  • Built-in Heater

    Yes

  • UL Listing

    UL2044

  • Operating Temperature

    -22 to +122 deg. F / -30 to +50 deg. C

  • Cold Start Temperature

    -4 deg. F / -20 deg. C

  • Storage Temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions (W x H x D)

    3.75 x 3.75 x 6.37" / 95.25 x 95.25 x 161.8mm
    Including the arm:
    Dia. 5.37 x 12.37" / Dia. 136.4 x 314.2mm

  • Weight

    Approx. 3.18lbs / 1.44kg

About Sony SNC-EB632R

Network 1080p/30fps Full HD Outdoor IR Bullet Camera Powered by IPELA ENGINE Ex, Maximum resolution of 1920 x 1080 pixels with the Exmor CMOS sensor. Dynamic range equivalent to 90 dB achieved with View-DR technology. Minimum illumination of 0 lx in B/W mode (IR illuminator: ON) and 0.1 lx in Color mode at 50 IRE.

Sony SNC-EB632R Features

  • Maximum resolution of 1920 x 1080 pixels with the Exmor CMOS sensor
  • Extremely Wide Dynamic Range to 90dB achieved with View-DR technology
  • H.264 (High/Main/Baseline Profile)/JPEG video codecs
  • Minimum illumination of 0.1 lx in Color and 0.07 lx in B/W (50 IRE at 1/30 sec)
  • Image Stabilizer to help minimize the effect of camera shake or vibration to achieve less blurry images
  • IPELA ENGINE EX signal processing system developed based on Sony's unique signal processing and video analytics technologies to provide unique features such as View-DR, XDNR and DEPA Advanced technologies
  • View-DR - Sony's innovative wide dynamic range technology - to capture objects clearly and adaptively even under very harsh, severe backlight or highlight conditions
  • Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
  • DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
  • XDNR (excellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under low illumination
  • Picture mode selectable from a range of camera scenes in the setting menu to optimize picture quality in various applications
  • Electronic D/N (Day/Night) function to switch to Day or Night mode depending on the light level
  • Built-in HTML viewer compatible with most Smartphones
  • Powered by PoE (IEEE 802.3af-compliant) for easy installation
  • ONVIF (Open Network Video Interface Forum) Profile S conformance software that ensures greater interoperability and more flexibility in building multiple-vendor systems
  • VBR (variable bitrate) or CBR (constant bitrate) compression mode selectable to correspond with various network conditions
  • Easy initial network settings with supplied SNC Easy IP Setup Guide application

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Easy initial network settings

What's in the box:

  • Sony SNC-EB632R 2.14MP 1080p Outdoor True Day/Night IR Bullet Network Camera with IPELA ENGINE EX Technology
  • CD-ROM (Supplied Programs)
  • Installation Manual
  • Wire Rope
  • Screw M4
  • Safety Regulations
  • Sony 1 Year Limited Warranty
