1/2.9-type progressive scan Exmor CMOS sensor
Approx. 2.14 Megapixels
NTSC
Internal synchronization
50 IRE:
Color: 0.1 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30s, 30 fps)
B/W: 0.07 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30s, 30 fps)
30 IRE:
Color: 0.06 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30s, 30 fps)
B/W: 0.05 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30s, 30 fps)
Equivalent to 90dB with View-DR technology
More than 50dB (Gain 0dB)
Auto
1/1 s to 1/10000 s
Exposure compensation, AGC, Shutter speed, Iris
ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
Built-in varifocal lens
Yes
Optical zoom 3x
Digital zoom 4x
Total zoom 12x
Yes
105.2 to 35.4 deg.
57.0 to 20.0 deg.
127.6 deg.
f = 3.0 to 9.0mm
F1.2 (Wide) to F2.1 (Tele)
300mm
Pan: +/-192 deg.
Tilt: -7 to +75 deg.
Rotation: +/-99 deg.
Yes (True D/N)
Yes
Yes (View-DR)
Yes (Visibility Enhancer (VE))
Yes (XDNR)
Yes
Yes
20
Quadrangle formed by any four corner points
Opaque: 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic
Yes (IK10)
3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for logo marks
English
15 Languages (English, Japanese, Chinese (simplified), Chinese (Traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai)
Yes
1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)
H.264 (High/Main/Baseline Profile), JPEG
H.264: 30 fps (1920 x 1080)
JPEG: 30 fps (1920 x 1080)
CBR/VBR (selectable)
64 Kbps to 32 Mbps
Yes
Yes (H.264)
Yes (JEPG)
Triple Streaming
20
DEPA Advanced
Yes
Yes
Yes
Passing, Appearance, Left Object Detection, Removed Object Detection
Windows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit)
Intel Corei7 2.8GHz or higher
2GB or more
Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0
Firefox Ver. 3.5 (Plug-in free viewer only)
Safari Ver. 4.0 (Plug-in free viewer only)
Google Chrome Ver. 4.0 (Plug-in free viewer only)
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL
Yes
Yes (Profile S)
IEEE 802.1X
Phono jack x1
10BASE-T / 100BASE-TX (RJ-45)
PoE system (IEEE 802.3af compliant) Class 2
5.0W max.
20% to 80%
20% to 95%
Top cover: ABS + PC
Dome cover: PC
UL2044
JATE Technical Standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
KCC
EMC-TR
14 to 122 deg. F / -10 to +50 deg. C
32 to 122 deg. F / 0 to 50 deg. C
-4 to 140 deg. F / -20 to +60 deg. C
5.87 x 4.37" / 149.1 x 111mm
Approx. 1.75lbs / 0.79kg

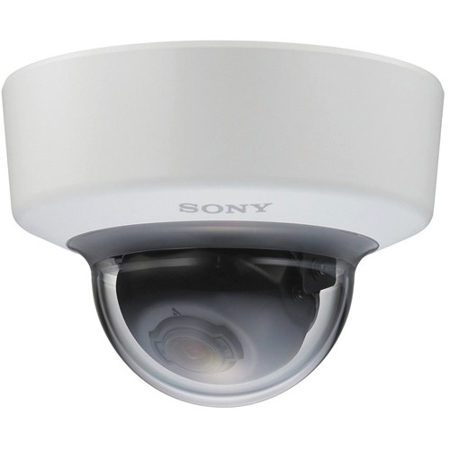

FHD Network vandal indoor minidome camera powered by IPELA ENGINE Ex, minimum illumination of 0.1lx (Color, 50IRE, 1/30 shutter speed), 1080p/30fps, View-DR (90dB), easy-zoom, easy-focus, image stabilization, PoE.
