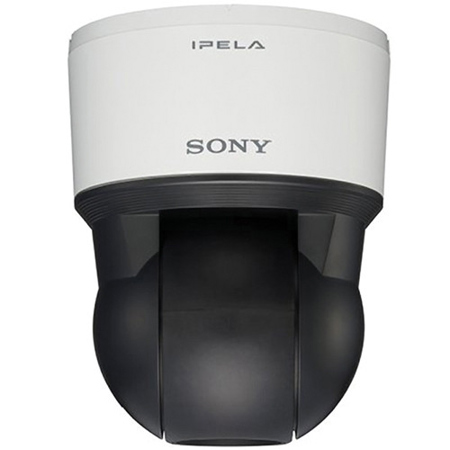

Sony SNC-EP520 Network SD PTZ Camera
See all Sony items

Sony SNC-EP520 Network SD PTZ Camera, 36x Optical Zoom, 720x480, 30 fps, JPEG, H.264, MPEG-4, HPoE

SKU: SOSNCEP520

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sony SNC-EP520 Specifications

  • Image device

    1/4-type EXview HAD CCD

  • Number of effective pixels

    Approx. 0.38 Megapixel

  • Minimum Illumination

    Color: 1.4lx (F1.6, shutter 1/60sec, AGC ON, 50IRE[IP])
    B/W: 0.15lx (F1.6, shutter 1/60sec, AGC ON, Night Mode, 50IRE[IP])
    Color: 0.9lx (F1.6, shutter 1/60sec, AGC ON, 30IRE[IP])
    B/W: 0.1lx (F1.6, shutter 1/60sec, AGC ON, Night Mode, 30IRE[IP])

  • Signal system

    NTSC standard

  • Electronic shutter speed

    1/1 to 1/10000 s

  • Auto gain control

    Auto/Manual (-3 to 28dB)

  • Exposure control

    Full auto, Shutter priority, Iris priority, Manual

  • White balance mode

    Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp

  • Lens type

    Auto-focus Zoom Lens

  • Zoom ratio

    Optical zoom 36x
    Digital zoom 12x
    Total zoom 432x

  • Horizontal viewing angle

    57.8 to 1.7 deg.

  • Focal length

    f = 3.4 to 122.4mm

  • F-number

    F1.6 to F4.5

  • Minimum Object Distance

    10mm (wide) to 1500mm (tele)

  • Pan angle

    340 deg.

  • Pan Speed

    300 deg./s (max)

  • Tilt angle

    105 deg.

  • Tilt speed

    300 deg./s (max)

  • Preset position

    256 positions

  • Tour

    5

  • Day/Night

    Yes

  • Wide-D

    Yes (92dB)

  • Noise Reduction

    Yes

  • Image: Codec image size (H x V)

    704x576, 720x480, 640x480, 384x288, 320x240

  • Image: Video compression format

    H.264, MPEG-4, JPEG

  • Image: Codec streaming capability

    Dual streaming

  • Image: Maximum frame rate

    30 fps (H.264/MPEG-4/JPEG)

  • Audio compression

    G.711/G.726

  • Scene Analytics: Motion detection

    Yes

  • Network Protocols

    IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)

  • Network ONVIF software

    Yes (Ver. 1.02)

  • Network Number of clients

    5

  • Network Authentication

    IEEE802.1X

  • Interface: Ethernet

    10BASE-T / 100BASE-TX (RJ-45)

  • Interface: Card slots

    SD memory card x1 (Compatible with the SD/SDHC standards)

  • Interface: Sensor input

    x2

  • Interface: Alarm output

    x1

  • Interface: External microphone input

    Mini-jack (monaural)

  • Interface: Audio line output

    Mini-jack (monaural), Max output level: 1 Vrms

  • Power requirements

    HPoE (IEEE802.3at compliant), AC24V

  • Power consumption

    Approx. 25W

  • Safety Regulations

    UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A

  • Operating system

    Microsoft Windows XP (32bit) - Professional Edition
    Microsoft Windows Vista (32bit) - Ultimate, Business Edition
    Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition

  • Processor

    Intel Core2 Duo 1.8GHz or higher
    Intel Pentium4 2.4GHz or higher

  • Memory

    1GB or more

  • Web browser

    Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
    Firefox Ver.3.5 (Plug-in free viewer only)
    Safari Ver.4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only

  • Operating temperature

    23 to 122 deg. F / -5 to +50 deg. C

  • Starting temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions (Dia. x H)

    Dia. 5.87 x 7.62" / 149.1 x 193.55mm

  • Weight

    3.75lbs / 1.7kg (including sealing bracket)

  • UPC Code

    027242826717

About Sony SNC-EP520

SD PTZ camera with 720 x 480 resolution, 1/4 type Exview HAD CCD imager, 36x optical zoom, dual streaming JPEG/MPEG-4/H.264.

Sony SNC-EP520 Features

  • High-Quality PTZ Cameras
  • Three codecs ( H.264, MPEG-4, JPEG) and dual-streaming capability
  • Powerful 36x optical zoom capability
  • Slim and stylish
  • 36x optical and total zoom ratio of 432x with 12x digital zoom
  • DynaView- Wide-D technology to handle various lighting conditions in a scene Optical Day/Night function to switch to Day or Night mode depending on the light level
  • DEPA Intelligent Video Analytics system can be set up with a DEPA-enabled recorder
  • Powered by HPoE for simple installation
  • SD memory card slot for an on-board recording capability
  • Recording Software (RealShot Manager Lite) is bundled to start recording and monitoring instantly
  • Smart phone viewer for accessing the camera from a smart phone
  • ONVIF (Open Network Video Interface Forum)Version 1.02 software

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Pendant mount with clear lower dome
  • HpoE++ normal type
  • DynaView Wide-D capability
  • Day/Night modes for improved visibility
  • Noise Reduction

What's in the box:

  • Sony SNC-EP520 Indoor Network SD PTZ Camera
  • CD-ROM (User's Guide/Supplied Programs)
  • Installation Manual
  • Ceiling Bracket
  • 2x Screws
  • Template
  • 24V AC Connector
  • I/O Connector
  • Sony 3 Year Warranty
