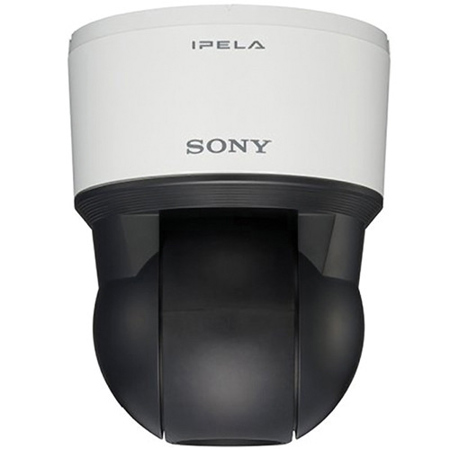

Sony SNC-EP550 1.43MP 720p HD Indoor Network Camera
See all Sony items

Sony SNC-EP550 1.43MP 720p HD Indoor Network Camera, 28x Optical Zoom, 30 fps, JPEG/H.264/MPEG-4, HPoE

SKU: SOSNCEP550

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Sony SNC-EP550 Specifications

  • Image device

    1/4-type EXview HAD CCD

  • Number of effective pixels

    Approx. 0.38 Megapixel

  • Minimum Illumination

    Color: 1.4lx (F1.6, shutter 1/60sec, AGC ON, 50IRE[IP])
    B/W: 0.15lx (F1.6, shutter 1/60sec, AGC ON, Night Mode, 50IRE[IP])
    Color: 0.9lx (F1.6, shutter 1/60sec, AGC ON, 30IRE[IP])
    B/W: 0.1lx (F1.6, shutter 1/60sec, AGC ON, Night Mode, 30IRE[IP])

  • Signal system

    NTSC standard

  • Electronic shutter speed

    1/1 to 1/10000 s

  • Auto gain control

    Auto/Manual (-3 to 28dB)

  • Exposure control

    Full auto, Shutter priority, Iris priority, Manual

  • White balance mode

    Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp

  • Lens type

    Auto-focus Zoom Lens

  • Zoom ratio

    Optical zoom 36x
    Digital zoom 12x
    Total zoom 432x

  • Horizontal viewing angle

    57.8 to 1.7 deg.

  • Focal length

    f = 3.4 to 122.4mm

  • F-number

    F1.6 to F4.5

  • Minimum Object Distance

    10mm (wide) to 1500mm (tele)

  • Pan angle

    340 deg.

  • Pan Speed

    300 deg./s (max)

  • Tilt angle

    105 deg.

  • Tilt speed

    300 deg./s (max)

  • Preset position

    256 positions

  • Tour

    5

  • Day/Night

    Yes

  • Wide-D

    Yes (92dB)

  • Noise Reduction

    Yes

  • Image: Codec image size (H x V)

    704x576, 720x480, 640x480, 384x288, 320x240

  • Image: Video compression format

    H.264, MPEG-4, JPEG

  • Image: Codec streaming capability

    Dual streaming

  • Image: Maximum frame rate

    30 fps (H.264/MPEG-4/JPEG)

  • Audio compression

    G.711/G.726

  • Scene Analytics: Motion detection

    Yes

  • Network Protocols

    IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)

  • Network ONVIF software

    Yes (Ver. 1.02)

  • Network Number of clients

    5

  • Network Authentication

    IEEE802.1X

  • Interface: Ethernet

    10BASE-T / 100BASE-TX (RJ-45)

  • Interface: Card slots

    SD memory card x1 (Compatible with the SD/SDHC standards)

  • Interface: Sensor input

    x2

  • Interface: Alarm output

    x1

  • Interface: External microphone input

    Mini-jack (monaural)

  • Interface: Audio line output

    Mini-jack (monaural), Max output level: 1 Vrms

  • Power requirements

    HPoE (IEEE802.3at compliant), AC24V

  • Power consumption

    Approx. 25W

  • Safety Regulations

    UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A

  • Operating system

    Microsoft Windows XP (32bit) - Professional Edition
    Microsoft Windows Vista (32bit) - Ultimate, Business Edition
    Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition

  • Processor

    Intel Core2 Duo 1.8GHz or higher
    Intel Pentium4 2.4GHz or higher

  • Memory

    1GB or more

  • Web browser

    Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
    Firefox Ver.3.5 (Plug-in free viewer only)
    Safari Ver.4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only

  • Operating temperature

    23 to 122 deg. F / -5 to +50 deg. C

  • Starting temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage temperature

    -4 to +140 deg. F / -20 to +60 deg. C

  • Dimensions (Dia. x H)

    Dia. 5.87 x 7.62" / 149.1 x 193.55mm

  • Weight

    3.75lbs / 1.7kg (including sealing bracket)

  • UPC Code

    027242826724

About Sony SNC-EP550

720p HD PTZ camera with 1280 x 720 resolution - 1/4 type Exor CMOS imager - 28x optical zoom - dual streaming JPEG/MPEG-4/H.264.

Sony SNC-EP550 Features

  • High-Quality 720p HD PTZ Cameras
  • Excellent 720p HD picture quality - supporting 30 fps at H.264 (1280 x 720 maximum resolution)
  • The Exmor CMOS sensor incorporated to deliver high image quality and low noise
  • Powerful 28x optical zoom capability
  • Three codecs ( H.264 - MPEG-4 - JPEG) and dual-streaming capability
  • 28x optical and total zoom ratio of 336x with 12x digital zoom
  • DynaView- Wide-D technology to handle various lighting conditions in a scene
  • Optical Day/Night function to switch to Day or Night mode depending on the light level
  • DEPA Intelligent Video Analytics system can be set up with a DEPA-enabled recorder
  • Powered by HPoE for simple installation
  • SD memory card slot for an on-board recording capability
  • Recording Software (RealShot Manager Lite) is bundled to start recording and monitoring instantly
  • Smart phone viewer for accessing the camera from a smart phone
  • ONVIF (Open Network Video Interface Forum) Version 1.02 software

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Outdoor Unitized SNC-EP550
  • Outdoor Unitized
  • AC24V operation
  • DynaView Wide-D capability
  • Day/Night modes for improved visibility
  • Noise Reduction

What's in the box:

  • Sony SNC-EP550 1.43MP 720p HD Indoor Network Camera
  • CD-ROM (User's Guide/Supplied Programs)
  • Installation Manual
  • 2x Ceiling Bracket
  • Screws
  • Template
  • 24V AC Connector
  • I/O Connector
  • Sony 3 Year Warranty
